5, 5
6,

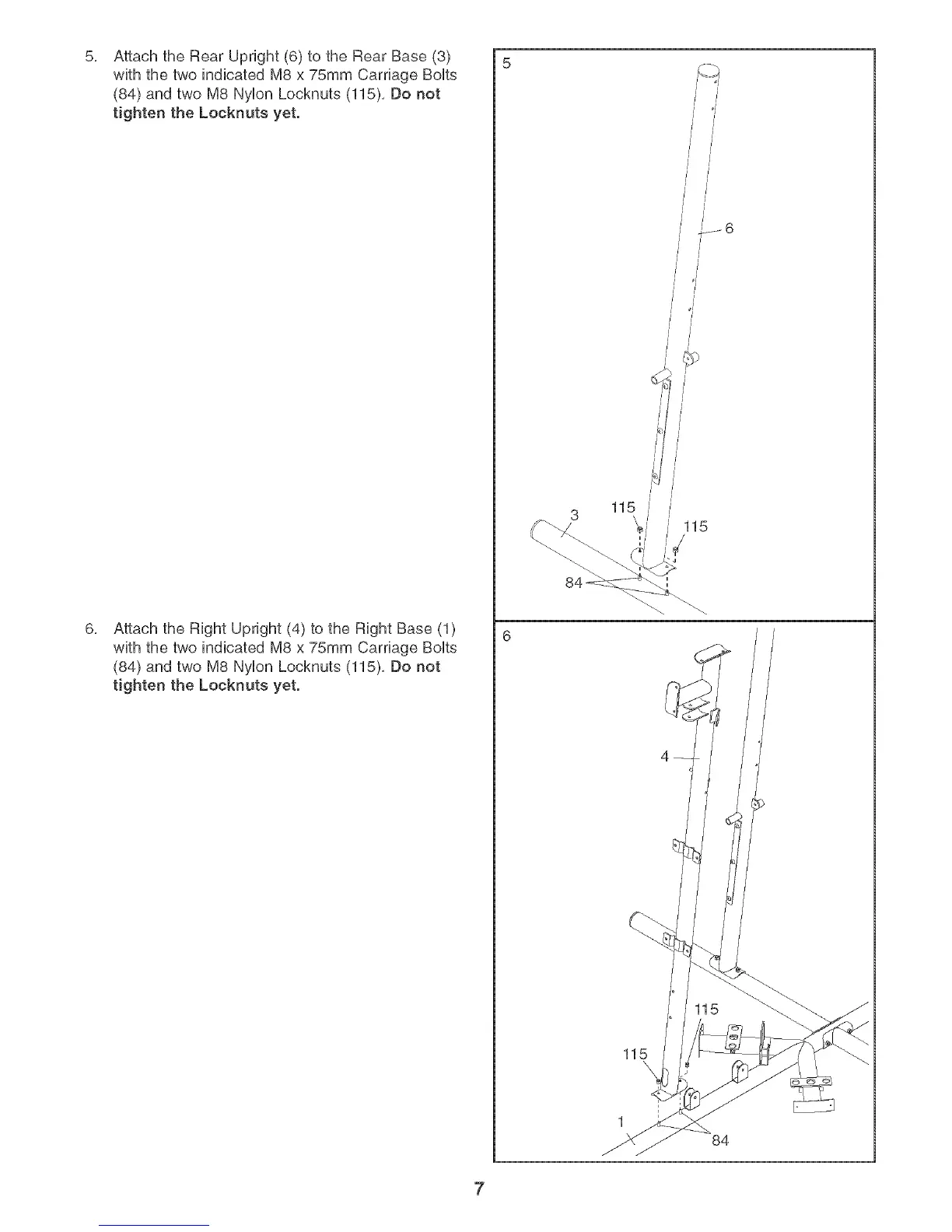

Attach the Rear Upright (6) to the Rear Base (3)
with the two indicated M8 x 75mm Carriage BoUts
(84) and two M8 NyUonLocknuts (115), Do not
tighten the Locknuts yet.
Attach the Right Upright (4) to the Right Base (1)
with the two indicated M8 x 75mm Carriage BoUts
(84) and two M8 NyUonLocknuts (115), Do not
tighten the Locknuts yet.
J
_J6
/
/
/
115 /
3
115
115
\
\
1
84
7
