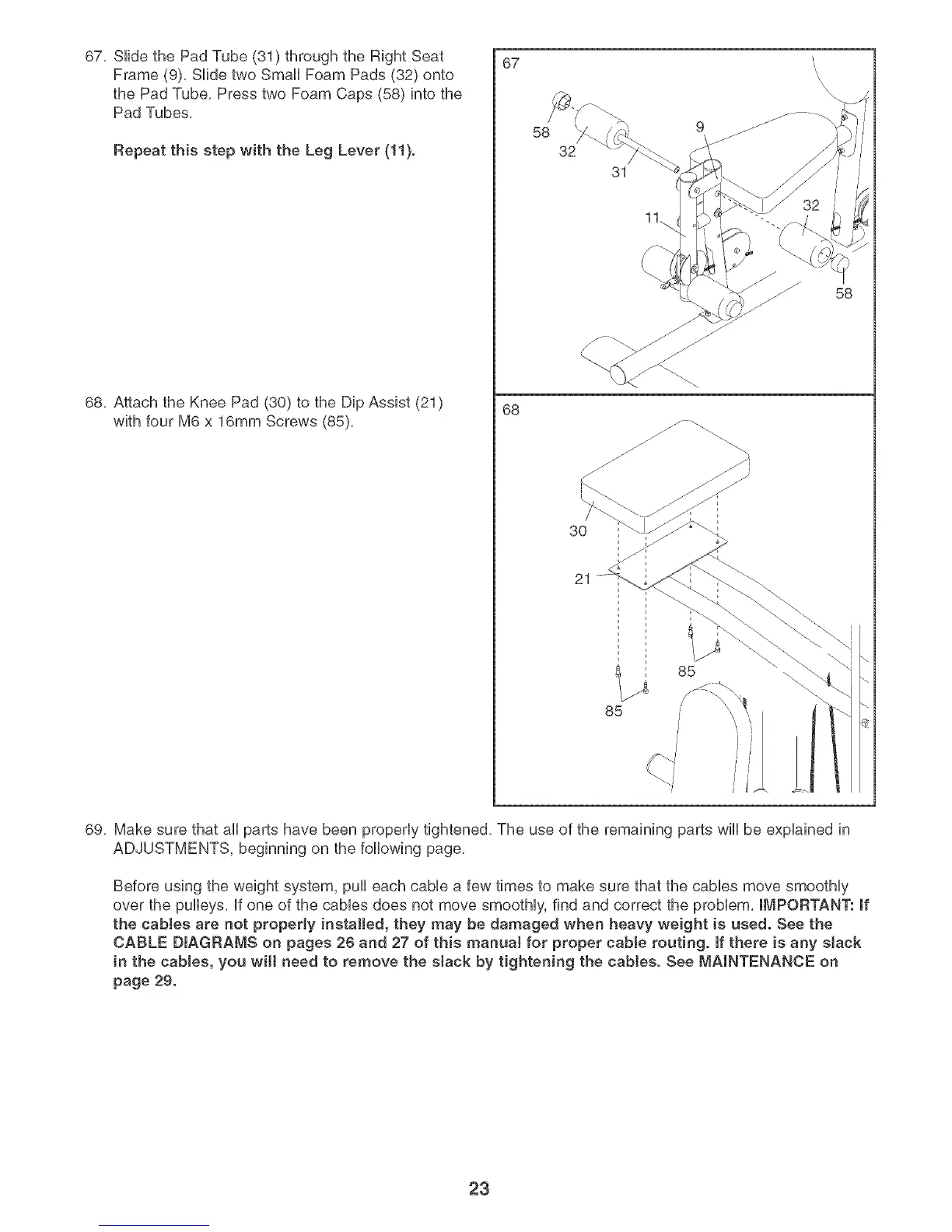

67, SHde the Pad Tube (31) through the Right Seat
Frame (9), SHde two SmaHHFoam Pads (32) onto
the Pad Tube, Press two Foam Caps (58) into the
Pad Tubes,
Repeat this step with the Leg Lever (!1}.
68, Attach the Knee Pad (30) to the Dip Assist (21)
with four M6 x 16mm Screws (85),
67
68
\
\
\a
9
32 /
58
3O
21
85
69, Make sure that aHHparts have been properHy tightened, The use of the remaining parts wHHbe expHained in
ADJUSTMENTS, beginning on the foHHowingpage,
Before using the weight system, puHHeach came a few times to make sure that the cabHes move smoothHy
over the puHHeys,Hfone of the cabHesdoes not move smoothHy, find and correct the probHem, IMPORTANT: If
the cabtee are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAMS on pages 26 and 27 of this manual for proper cable routing. If there is any sJack
in the caMes, you wilt need to remove the stack by tightening the cables. See MAINTENANCE on
page 29.
23
