10

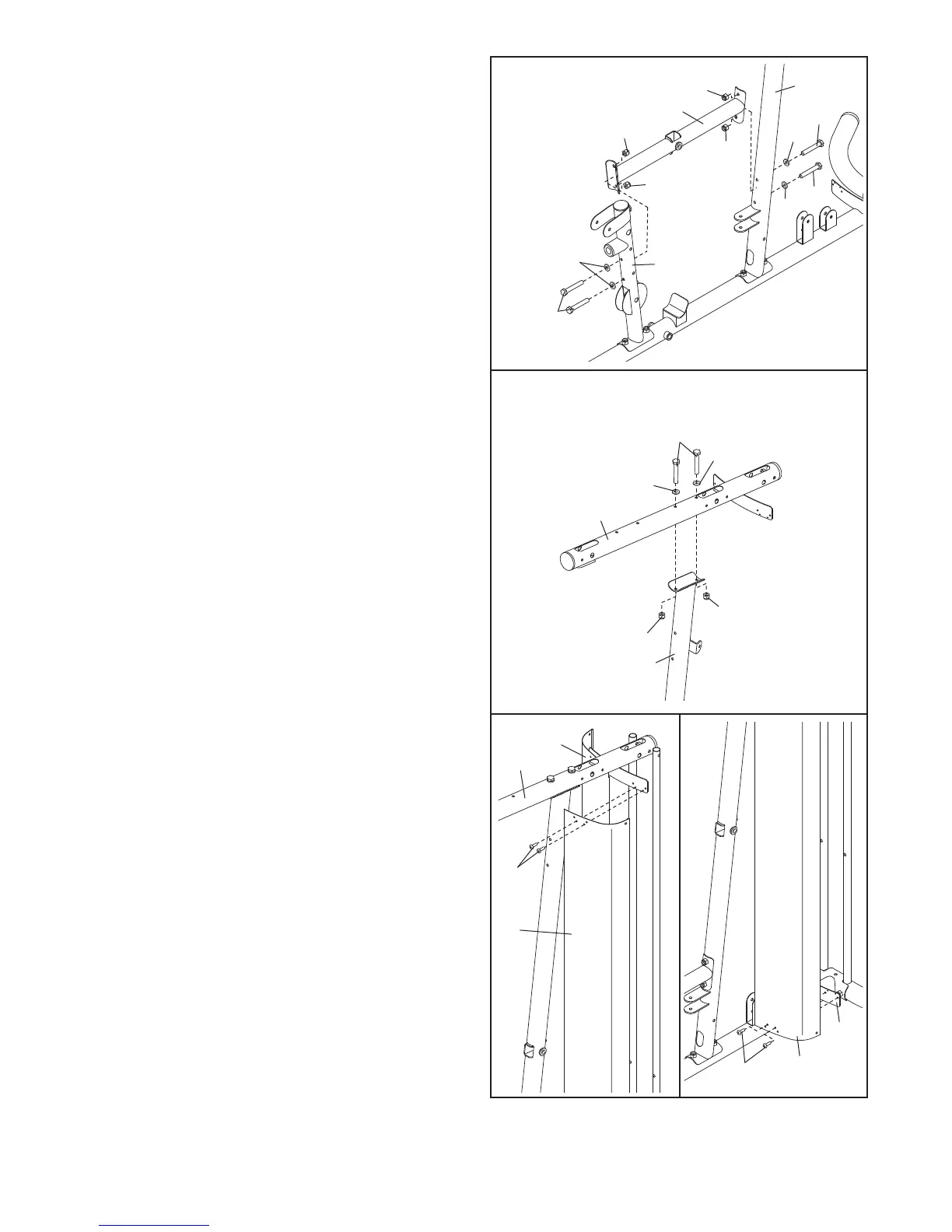

4. Attach the Frame (9) to the Upright (2) with two
M8 x 80mm Bolts (100), two M8 Washers (103),
and two M8 Nylon Locknuts (78). Do not tighten
t
he Nylon Locknuts yet.
A
ttach the Frame (9) to the Front Leg (10) with
two M8 x 65mm Bolts (101), two M8 Washers
(103), and two M8 Nylon Locknuts (78). Do not
tighten the Nylon Locknuts yet.
5. Attach the Top Frame (4) to the Upright (2) with
two M8 x 80mm Bolts (100), two M8 Washers
(103), and two M8 Nylon Locknuts (78). Do not
tighten the Nylon Locknuts yet.
4
5
1
00
100
2
1
03
1
03
7
8
78
78
78
9
101
103
10
100
103
103
4
2
78
78
6. Attach the Left Shroud (21) to the Top Frame (4)
with two M4 x 12mm Self-tapping Screws (102).
See drawing 6A. Attach the bottom of the Left
Shroud (21) to the Base (1) with two M4 x 12mm
Self-tapping Screws (102).
Repeat this step for the Right Shroud (22).
6
21
22
4
102
6A
21
1
102
