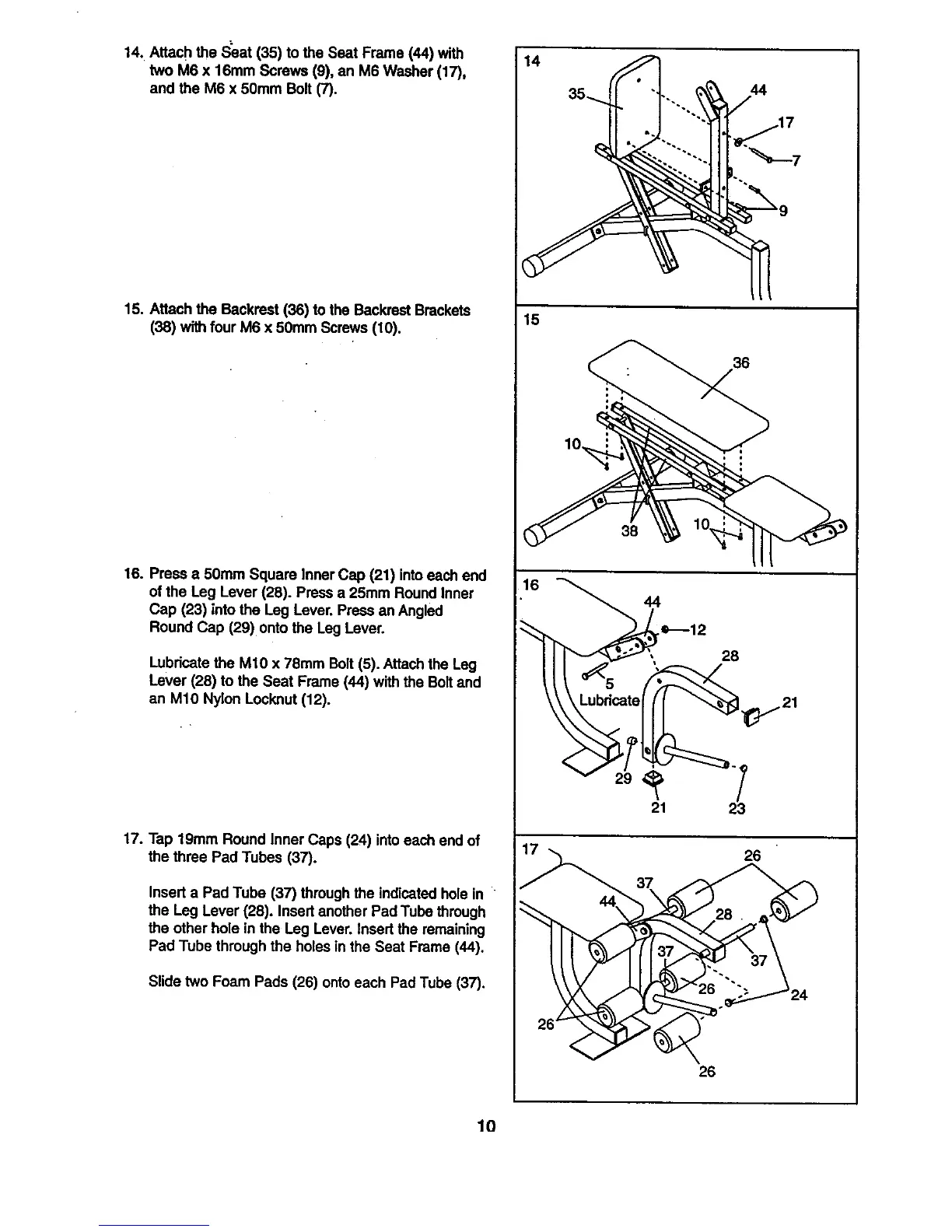

14. Attach the _eat (35) to the Seat Frame (44) with
two M6 x 16mm Screws (9), an M6 Washer (17),
and the M6 x 5Omm Bolt (7).
15. Attach the Backrest (36) to the Backrest Brackets
(38) with four M6 x 50mm Screws (10).
16. Press a 50mm Square Inner Cap (21) intoeach end
of the Leg Lever (28). Press a 25mm Round Inner
Cap (23) into the Leg Lever. Press an Angled
Round Cap (29) onto the Leg Lever.
Lubricate the M10 x 78mm Bolt (5). Attach the Leg
Lever (28) to the Seat Frame (44) with the Bolt and
an M10 Nylon Locknut (12).
17. Tap 19ram Round Inner Caps (24) into each end of
the three Pad Tubes (37).
Insert a Pad Tuba (37) through the indicated hole in
the Leg Lever (28). Insert another Pad Tube through
the other hole in the Leg Lever. Insert the remaining
Pad Tube through the holes in the Seat Frame (44).
Slide two Foam Pads (26) onto each Pad Tube (37).
14
15
16
38
44
_12
21
37
26
36
28
23
26
10
