Weider Pro 7500 - Page 22

22
46
47
85
80
109
109
10
80
77
48
55
51
55
Bar
1
77
97
48
51
48
77
55
56
51
55
97
48
60
49. W
rap the Leg Lever Cable (51) under a 90mm
Pulley (48). Attach the Pulley to the Right Base
(1) with an M10 x 50mm Bolt (97), two Half
Guards (55), and an M10 Nylon Locknut (77).
Make sure the Half Guards are oriented as
shown.
49
77
48
51
55
1
55
97

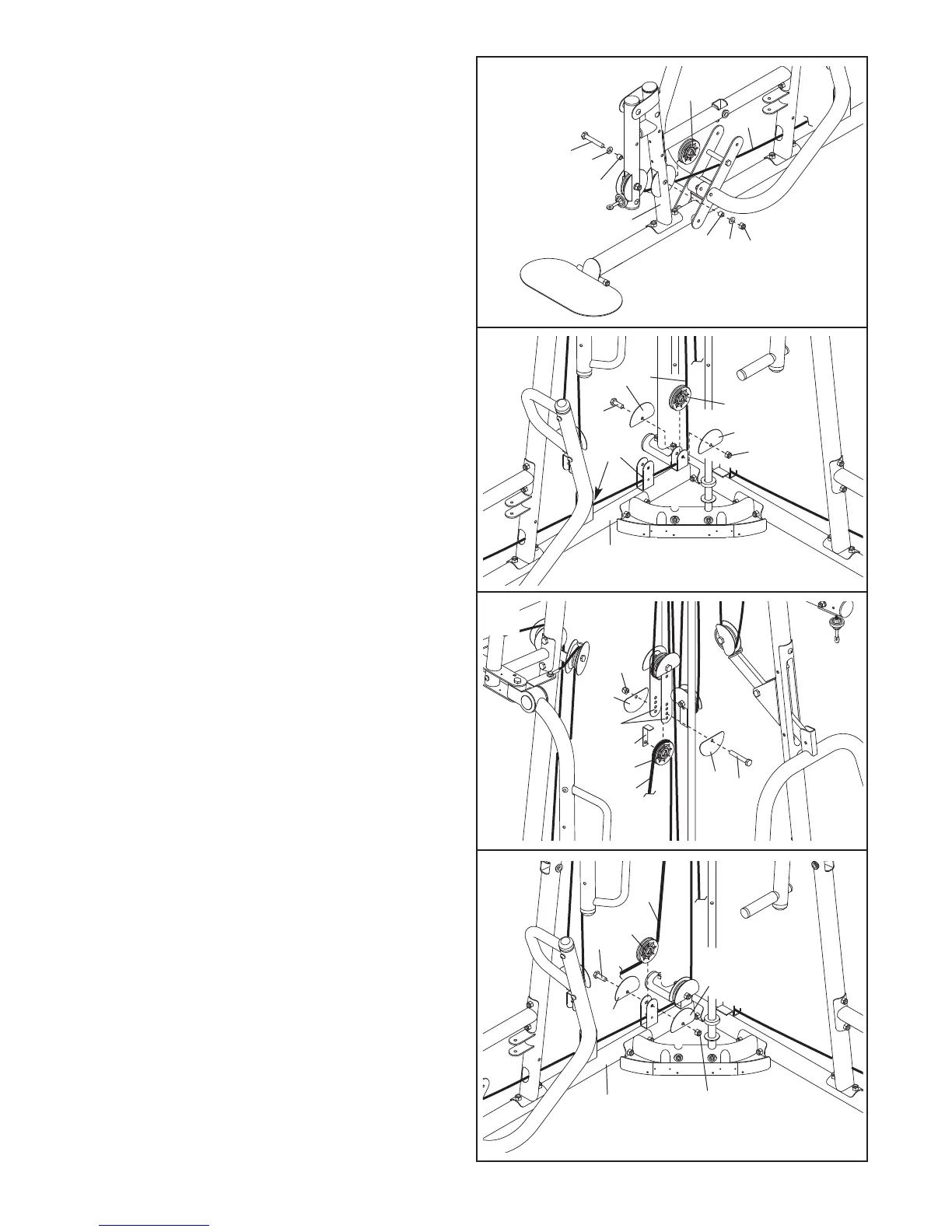

46. Insert a 90mm Pulley (48) into the Front Leg
(10) from the indicated direction. Attach the
P
ulley to the Front Leg with an M10 x 68mm
Bolt (85), two M10 Washers (80), two 13mm
S
teel Spacers (109) and an M10 Nylon Locknut
(77).
47. Route the Leg Lever Cable (51) under the indi-
cated bars on the Right Base (1). Then, wrap
the Cable under a 90mm Pulley (48). Attach the
Pulley to the Right Base with an M10 x 50mm
Bolt (97), two Half Guards (55), and an M10
Nylon Locknut (77).
Make sure the Half
Guards are oriented as shown.
48. Wrap the Leg Lever Cable (51) over a 90mm
Pulley (48). Attach the Pulley, a Cable Trap
(56), and two Half Guards (55) to the second
hole from the bottom of the Pulley Plates (60)
with an M10 x 50mm Bolt (97) and an M10
Nylon Locknut (77).
Make sure the Cable Trap
and the Half Guards are oriented as shown.
