Weider Pro 9450 - Leg Press Cable Routing; Leg Press Cable - U-Bracket and Upright Pulley; Leg Press Cable - Seat Frame Connection

17

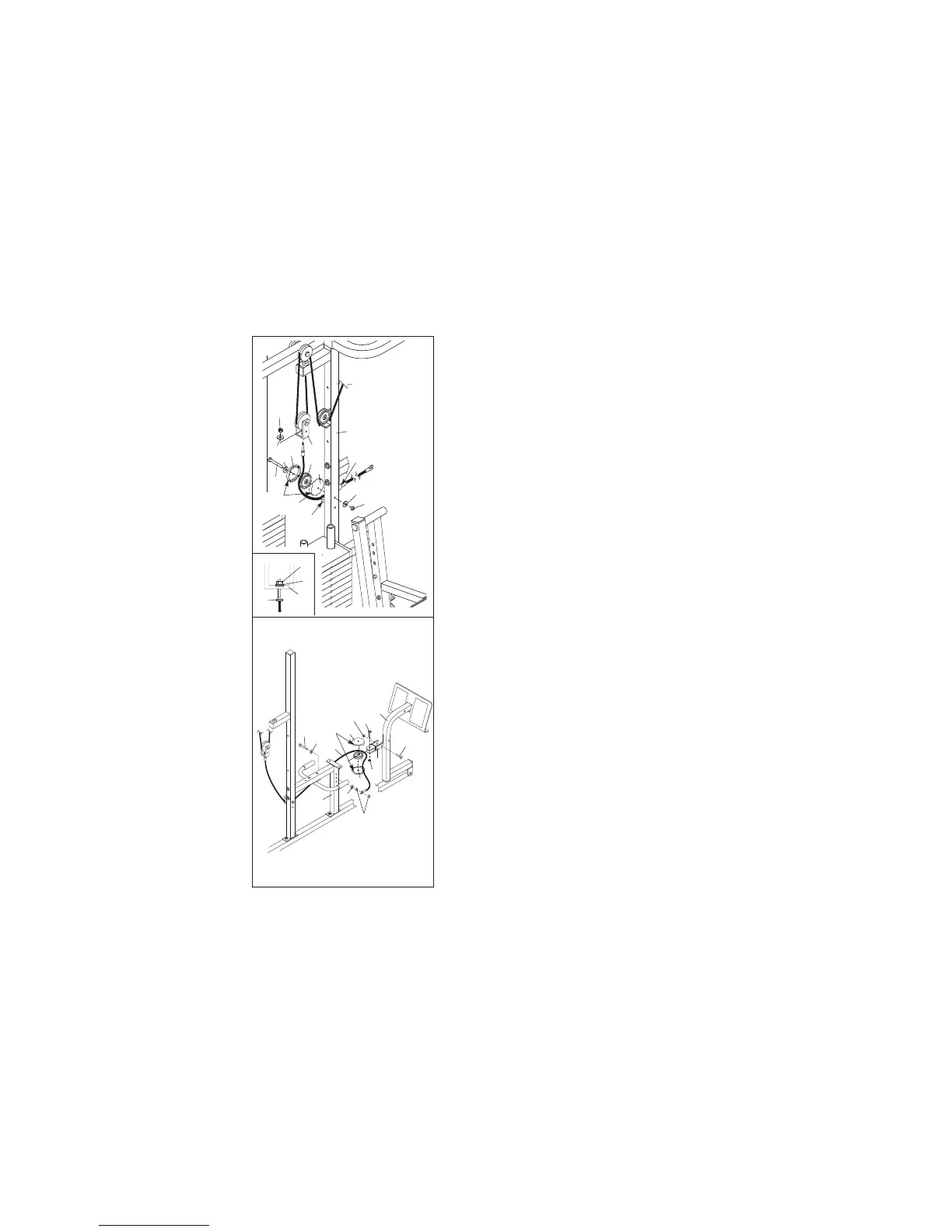

35. Locate the Leg Press Cable (78). Attach the end
of the Leg Press Cable to the Long “U”-Bracket (57)
w
ith a 1/4” Nylon Locknut (2) and a 1/4” Washer
(10).
Do not completely tighten the Nylon
L
ocknut. It should be threaded onto the end of
the Cable only a couple of turns, as shown in
the inset drawing.
Wrap the Leg Press Cable (78) around a 3 1/2”
Pulley (15). Attach the Pulley and a set of Pulley
Covers (77) to the Leg Press Upright (56) with the
3/8” x 3 3/4” Bolt (88), two 3/8” Washers (9), and a
3/8” Nylon Jam Nut (99).
Be sure that the Cable
and Pulley move smoothly and that the Cable is
between the Pulley and the welded rod. The ball
on the Cable must be on the indicated side of
the Pulley. Be sure the large tabs on the Pulley
Covers are on the indicated side.
36. Attach the Press Bracket (94) to the Leg Press Arm
(96) with a 3/8” x 3” Bolt (100) and a 3/8” Nylon
Jam Nut (99).
Wrap the Leg Press Cable (78) around a 3 1/2”
Pulley (15). Attach the Pulley and a set of Pulley
Covers (77) to the Press Bracket (94) with a 3/8” x
2” Bolt (12) and a 3/8” Nylon Jam Nut (99).
Be sure
the small tabs on the Pulley Covers are in the
position shown.
Slide a 5/16” W
asher (8) onto a 5/16” x 2 3/4” Bolt
(1
1). Insert the Bolt through the centre hole in the
Leg Press Seat Frame (79) from the indicated side.
(Note: The three holes are for cable adjustment.)
T
ighten a 5/16” W
asher (8) and a 5/16” Nylon Jam
Nut (93) onto the Bolt. Slide the end of the Leg
Press Cable (78) onto the end of the Bolt. Thread
another 5/16” Nylon Jam Nut onto the Bolt. Do not
fully tighten the second Jam Nut; there must be
room between the two Jam Nuts for the end of
the Cable to pivot.
36
11
100
96
94
12
99
77
77
79
93
8
99
78
15
8
35
56
Ball
9
99
15
2
10
88
77
77
2
10
9
57
57
78
78
Welded
Rod
Large
Tab
Small
Tab
