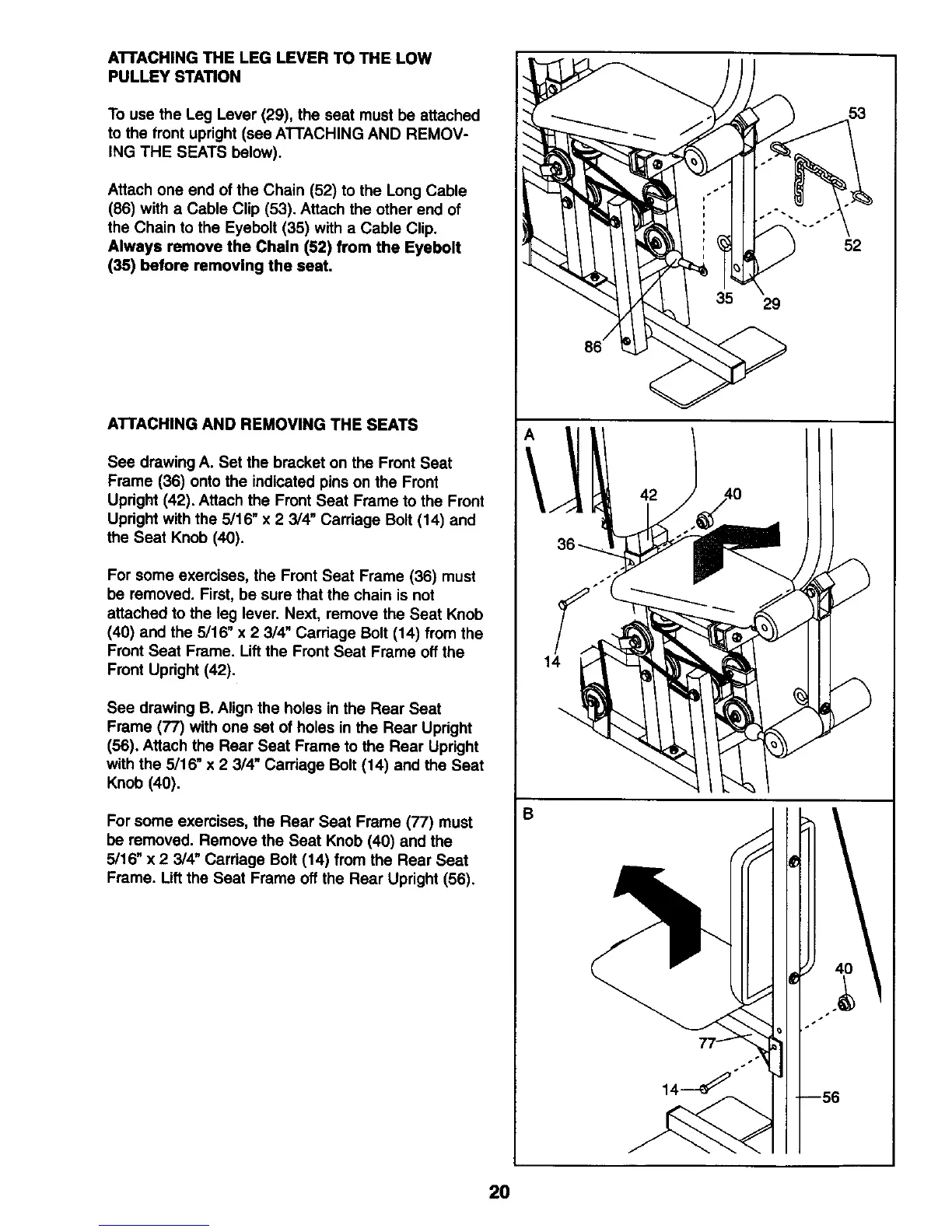

ATrACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV-
ING THE SEATS below).
Attach one end of the Chain (52) to the Long Cable
(86) with a Cable Clip (53). Attach the other end of
the Chain to the Eyebolt (35) with a Cable Clip.
Always remove the Chain (52) from the Eyebolt
(35) before removing the seat.
ATTACHING AND REMOVING THE SEATS
See drawing A. Set the bracket on the Front Seat
Frame (36) onto the indicated pins on the Front
Updght (42). Attach the Front Seat Frame to the Front
Updght with the 5/16" x 2 3/4" Carriage Bolt (14) and
the Seat Knob (40).
For some exercises, the Front Seat Frame (36) must
be removed. First, be sure that the chain is not
attached to the leg lever. Next, remove the Seat Knob
(40) and the 5/16" x 2 314" Carriage Bolt (14) from the
Front Seat Frame. Lift the Front Seat Frame off the
Front Updght (42).
See drawing B. Align the holes in the Rear Seat
Frame (77) with one set of holes in the Rear Updght
(56). Attach the Rear Seat Frame to the Rear Upright
with the 5/16" x 2 3/4" Carriage Bolt (14) and the Seat
Knob (40).
For some exercises, the Rear Seat Frame (77) must
be removed. Remove the Seat Knob (40) and the
5/16" x 2 3/4" Cardage Bolt (14) from the Rear Seat
Frame. Lift the Seat Frame off the Rear Upright (56).
14
B
42
29
53
52
2O
