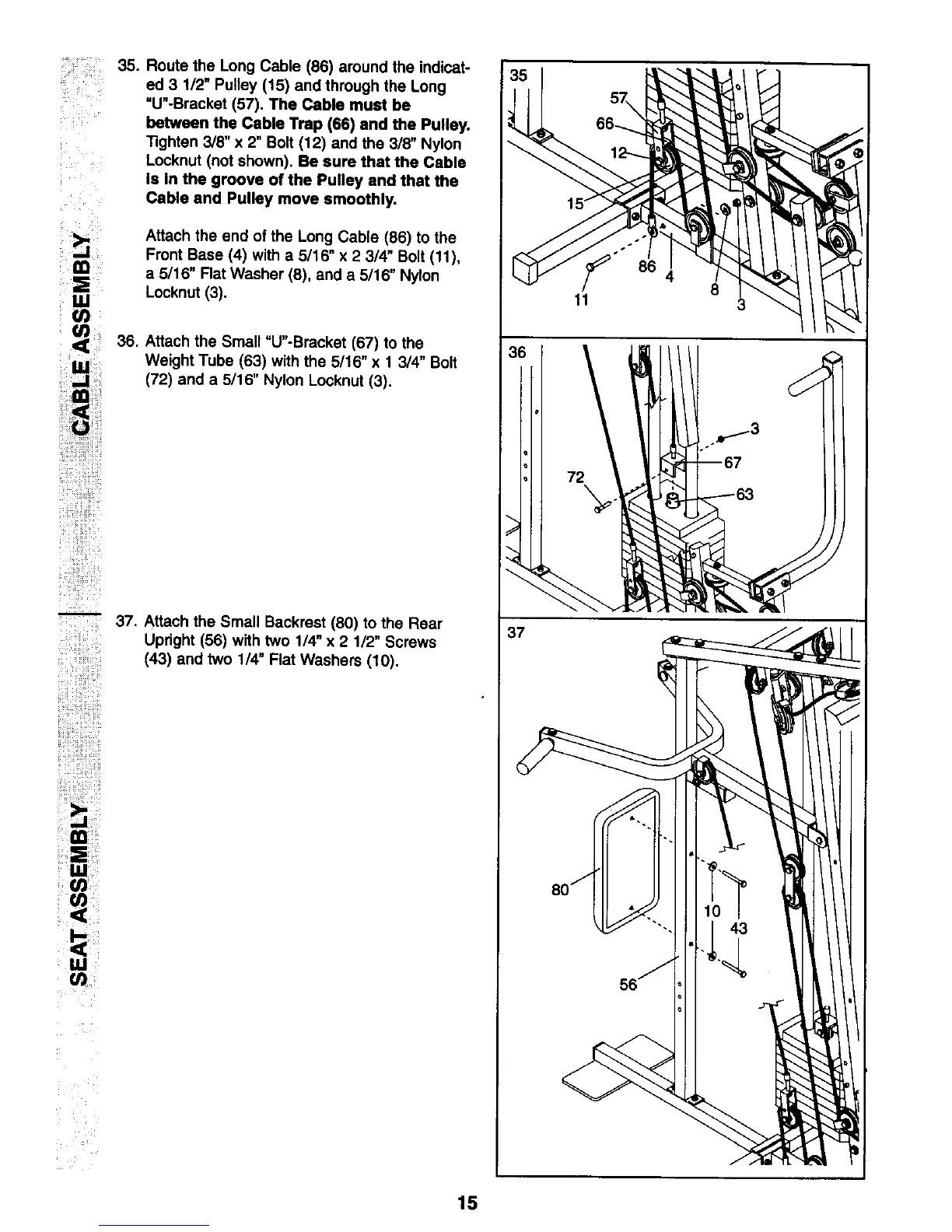

Route the Long Cable (86) around the indicat-
ed 3 1/2" Pulley (15) and through the Long
"U"-Bracket (57). The Cable must be
between the Cable Trap (66) and the Pulley.
"Rghten 3/8" x 2" Bolt (12) and the 3/B" Nylon
Locknut (not shown). Be sure that the Cable
Is In the groove of the Pulley and that the
Cable and Pulley move smoothly.
Attach the end of the Long Cable (86) to the
Front Base (4) with a 5/16" x 2 3/4" Bolt (11),
a 5/16" Flat Washer (8), and a 5/16" Nylon
Locknut (3).
36. Attach the Small =U"-Bracket (67) to the
Weight Tube (63) with the 5/16" x 1 3/4" Bolt
(72) and a 5/16" Nylon Locknut (3).
37. Attach the Small Backrest (80) to the Rear
Upright (56) with two 1/4" x 2 1/2" Screws
(43) and two 1/4" Flat Washers (10).
37
11
8
15
