Weider Pro 9625 - Page 14

_i!il ¸¸
_ ¸%1¸¸¸¸¸i
31.

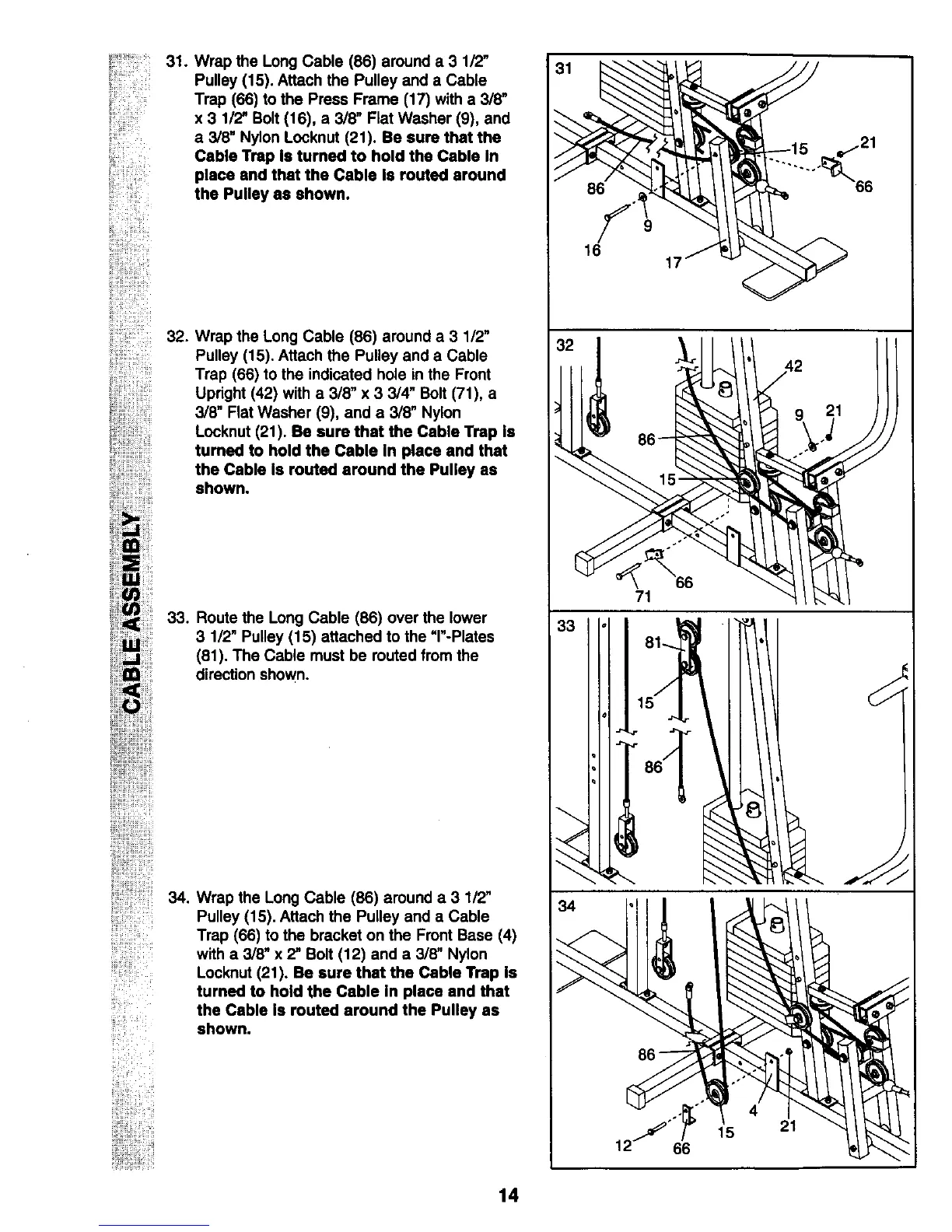

Wrap the Long Cable (86) around a 3 1/2"
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the Press Frame (17) with a 3/8"
x 3 1/2" Bolt (16), a 3/8" Flat Washer (9), and
a 3/8" Nylon Locknut (21). Be sure that the
Cable Trap Is turned to hold the Cable In
place end that the Cable Is routed around
the Pulley as shown.
! iiii!i!_! _i¸
32. Wrap the Long Cable (86) around a 3 1/2"
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the indicated hole in the Front
Upright (42) with a 3/8" x 3 3/4" Bolt (71), a
3/8" Flat Washer (9), and a 3/8" Nylon
Locknut (21). Be sure that the Cable Trap is
turned to hold the Cable In place and that
the Cable Is routed around the Pulley as
shown.
33. Route the Long Cable (86) over the lower
3 1/2" Pulley (15) attached to the =r-Plates
(81). The Cable must be routed from the
direction shown.
_i_ii!ili!!!iiiiiiiii!i
34.
_i__i_
Wrap the Long Cable (86) around a 3 1/2"
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the bracket on the Front Base (4)
with a 3/8" x 2" Bolt (12) and a 3/8" Nylon
Locknut (21). Be sure that the Cable Trap Is
turned to hold the Cable In place and that
the Cable Is routed around the Pulley as
shown.
86
9
17
_ _21
........ °_66
21
33
34
71
4
15 21
12" 66
14
