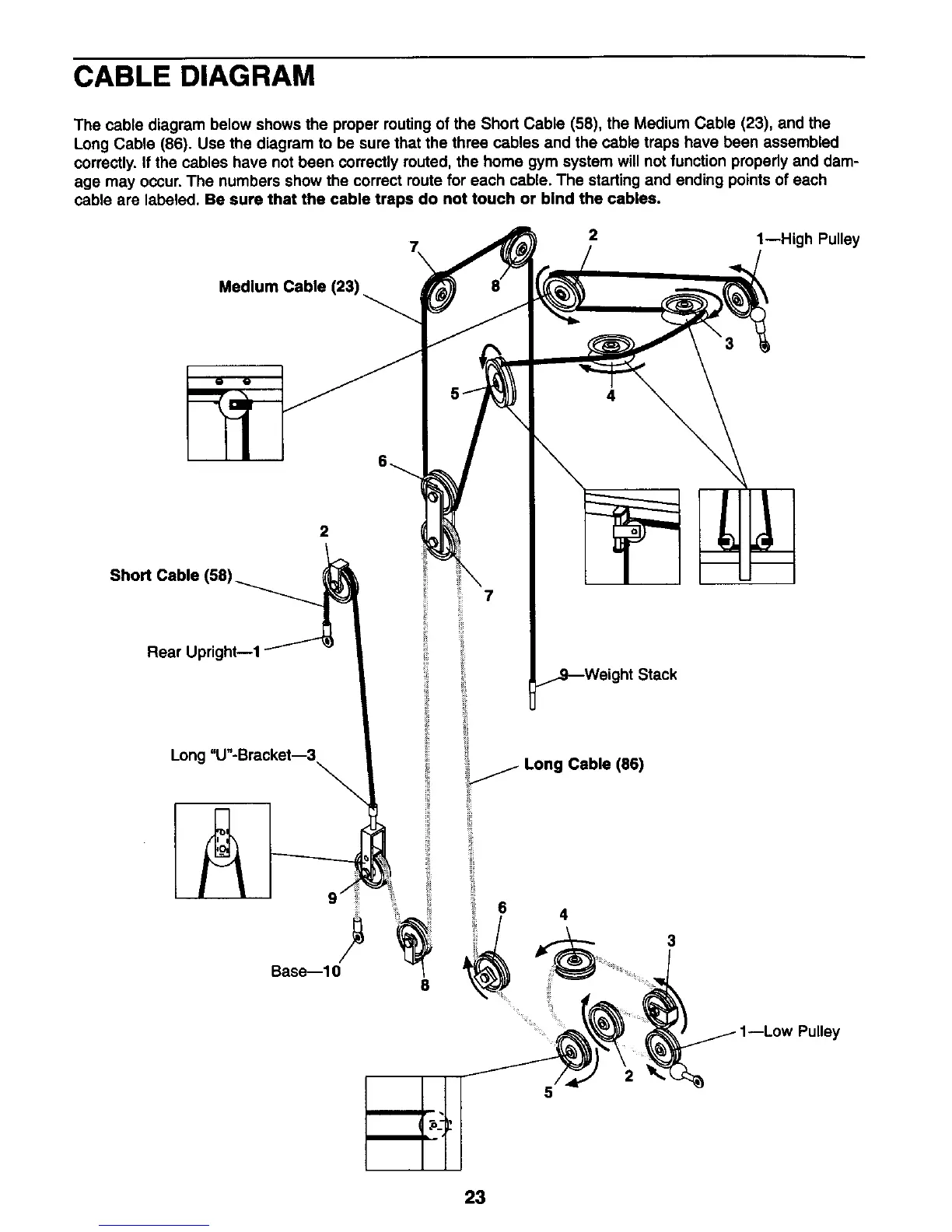

CABLE DIAGRAM
The cable diagram below shows the proper routing of the Short Cable (58), the Medium Cable (23), and the
Long Cable (86). Use the diagram to be sure that the three cables and the cable traps have been assembled
correctly. If the cables have not been correctly routed, the home gym system will not function propedy and dam-
age may occur. The numbers show the correct route for each cable. The starting and ending points of each
cable are labeled. Be sure that the cable traps do not touch or bind the cables.
Medium Cable (23)
2
Short Cable q
Rear Upright--1
7
7
2
..jg---Weight Stack
1--High Pulley
Long "U"-Bracket--8
\
i_ Long Cable (86)
Base--10
6
3
Pulley
5
23
