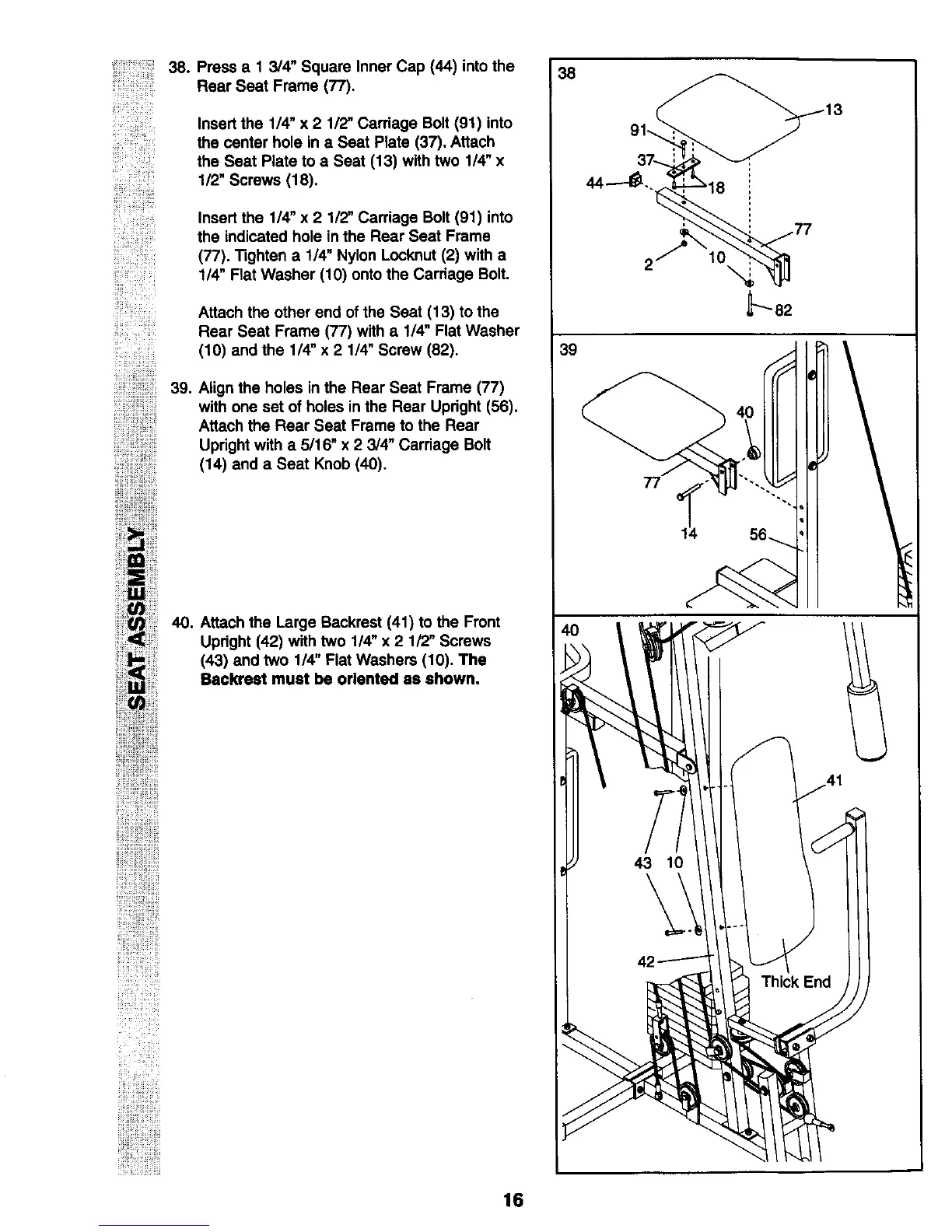

Press a 1 3/4" Square Inner Cap (44) into the
Rear Seat Frame (77).
Insert the 1/4" x 2 112"Carriage Bolt (91) into
the center hole in a Seat Plate (37). Attach
the Seat Plate to a Seat (13) with two 1/4" x
1/2" Screws (18).
Insert the 1/4" x 2 1/2" Carriage Bolt (91) into
the indicated hole in the Rear Seat Frame
(77). Tighten a 1/4" Nylon Locknut (2) with a
1/4" Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Rear Seat Frame (77) with a 1/4" Flat Washer
(10) and the 1/4" x 2 1/4" Screw (82).
Align the holes in the Rear Seat Frame (77)
with one set of holes in the Rear Updght (56).
Attach the Rear Seat Frame to the Rear
Upright with a 5/16" x 2 3/4" Carriage Bolt
(14) and a Seat Knob (40).
40. Attach the Large Backrest (41) to the Front
Upright (42) with two 1/4" x 2 1/2" Screws
(43) and two 1/4" Flat Washers (10). The
Backrest must be oriented as shown.
38
39
77
1_4 56_
16
