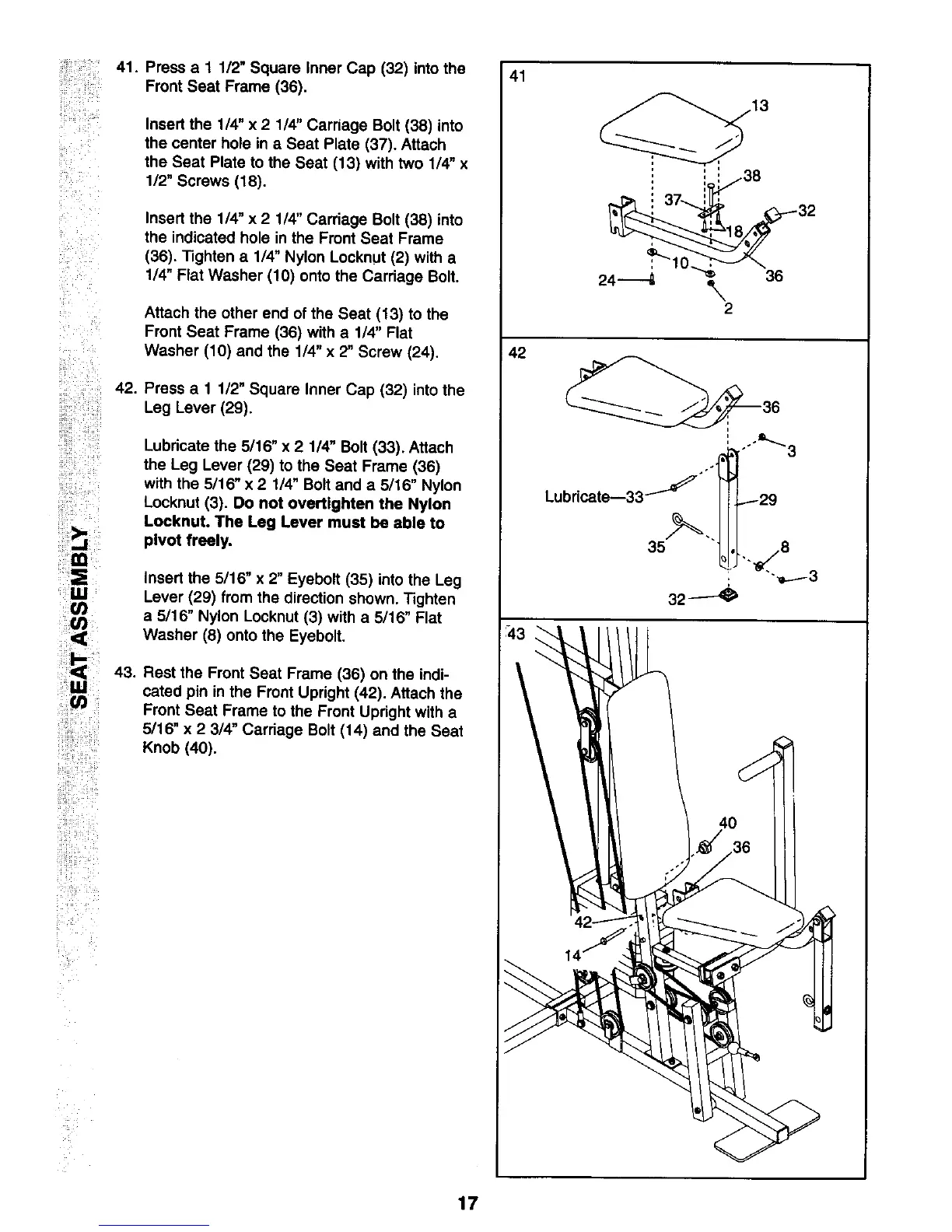

41. Press a 1 1/2" Square Inner Cap (32) into the
Front Seat Frame (36).
Insert the 1/4" x 2 1/4" Carriage Bolt (38) into
the center hole in a Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two 1/4" x
112"Screws (18).
Insert the 1/4" x 2 1/4" Carriage Bolt (38) into
the indicated hole in the Front Seat Frame
(36). Tighten a 1/4" Nylon Locknut (2) with a
1/4" Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Front Seat Frame (36) with a 1/4" Flat
Washer (10) and the 1/4" x 2" Screw (24).
Press a 1 1/2" Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16" x 2 1/4" Bolt (33). Attach
the Leg Lever (29) to the Seat Frame (36)
with the 5/16" x 2 114"Bolt and a 5/16" Nylon
Locknut (3). Do not overtlghten the Nylon
Loeknut. The Leg Lever must be able to
pivot freely.
Insert the 5/16" x 2" Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten
a 5/16" Nylon Locknut (3) with a 5/16" Flat
Washer (8) onto the Eyebolt.
Rest the Front Seat Frame (36) on the indi-
cated pin in the Front Upright (42). Attach the
Front Seat Frame to the Front Upright with a
5/16" x 2 3/4" Carriage Bolt (14) and the Seat
Knob (40).
41
42
35
32----_
17
To Next Page
