4
=s__
i_
i_i_ ,?_

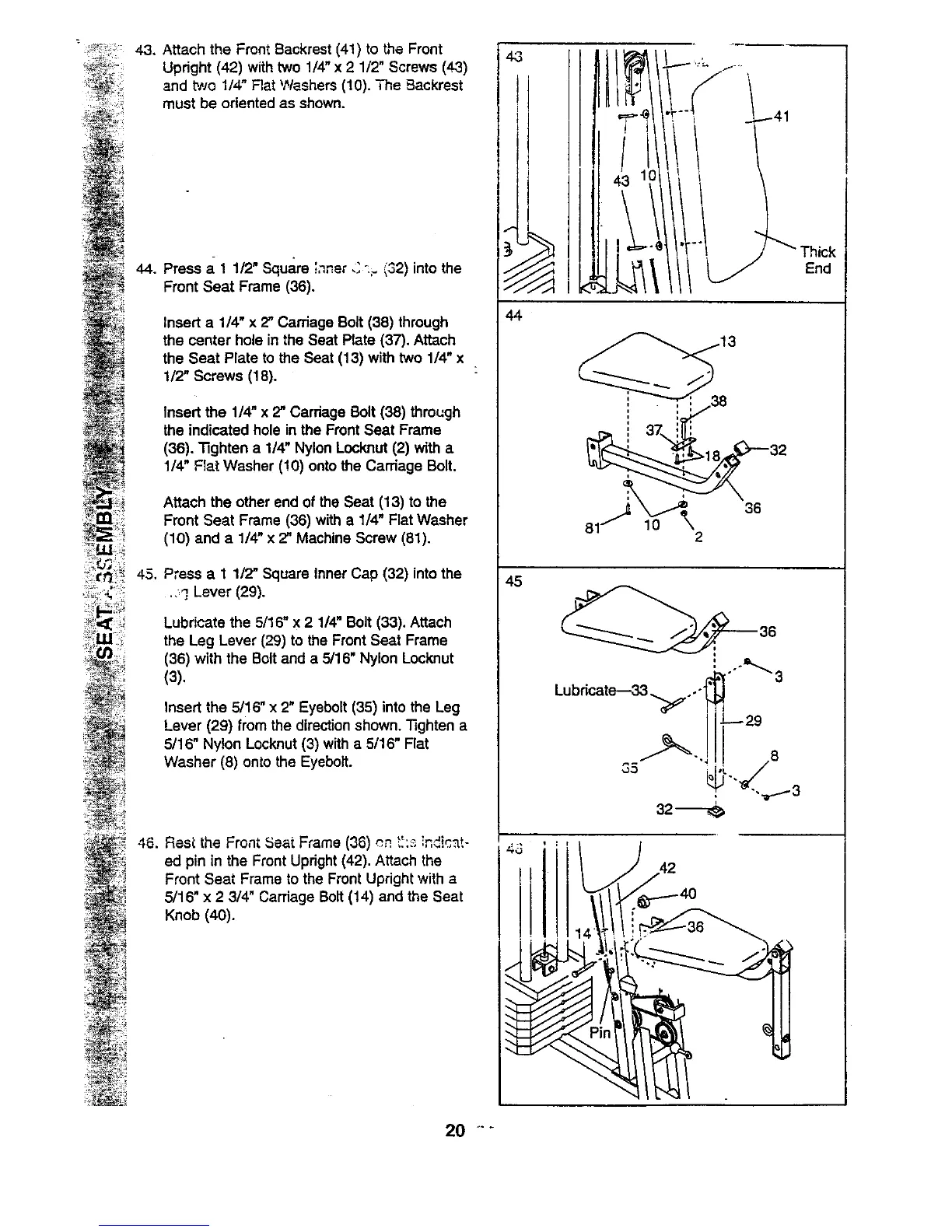

43. Attach the Front Backrest (41) to the Front
Upright (42) with two 1/4" x 2 1/2" Screws (43)
and two 1/4" Flat Wsshers (10). The Backrest
must be oriented as shown.
44.
45.
Press a 1 1/2" Square ' " "- "^
=n,,er ,_ _ _,_2)into the
Front Seat Frame (36).
Insert a 1/4" x 2" Carriage Bolt (38) through
the center hole in the Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two 1/4" x
1/2" Screws (18).
Insert the 1/4" x 2" Carriage Bolt (38) thro_:gh
the indicated hole in the Front Seat Frame
(36). "Nghten a 1/4" Nylon Locknut (2) with a
1/4" Flat Washer (!0) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Front Seat Frame (36) with a 1/4" Flat Washer
(10) and a 1/4" x 2" Machine Screw (81).
Press a 1 1/2" Square inner Cap (32) into the
•,_] Lever (29).
Lubricate the 5/16" x 2 1/4" Bolt (33). Attach
the Leg Lever (29) to the Front Seat Frame
(36) with the Bolt and a 5/16" Nylon Locknut
(3).
Insert the 5/16" x 2" Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten a
5/16" Nylon Locknut (3) with a 5/16" Flat
Washer (8) onto the Eyeboit.
46. Res_ the Front Seat Frame (38) cn _:_ _n_ic_t-
ed pin in the Front Upright (42). Attach the
Front Seat Frame to the Front Upright with a
5/16" x 2 3/4" Carriage Bolt (14) and the Seat
Knob (40).
4.3
f
44
45
f -
_ Thick
End
36
10
2
_36
Lubdcate--33,_.,-!
0 _
To Next Page
