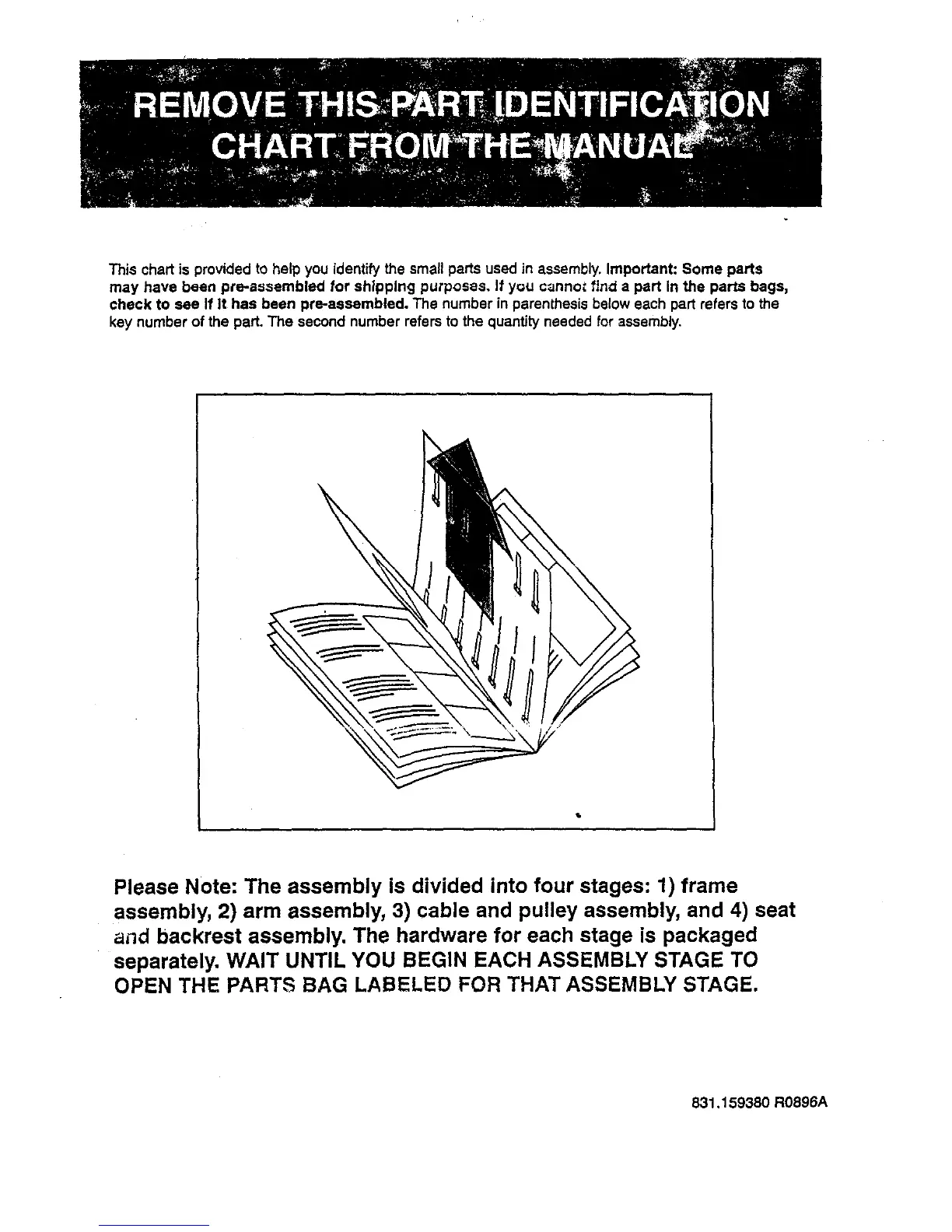

This chart is provided to help you identify the small parts used in assembly. Important: Some parts
may have been pre-aeeembled for shipping purposes. If you cannc_ find a part In the parts bags,
check to see If It has been pre-aesembled. The number in parenthesis below each part refers to the
key number of the part. The second number refers to the quantity needed for assembly.
Please Note: The assembly is divided into four stages: 1) frame
assembly, 2) arm assembly, 3) cable and pulley assembly, and 4) seat
and backrest assembly. The hardware for each stage is packaged
separately. WAIT UNTIL YOU BEGIN EACH ASSEMBLY STAGE TO
OPEN THE PARTS BAG LABELED FOR THAT ASSEMBLY STAGE.
831.159380 R0896A
