Weider PRO 9645 - Seat Assembly

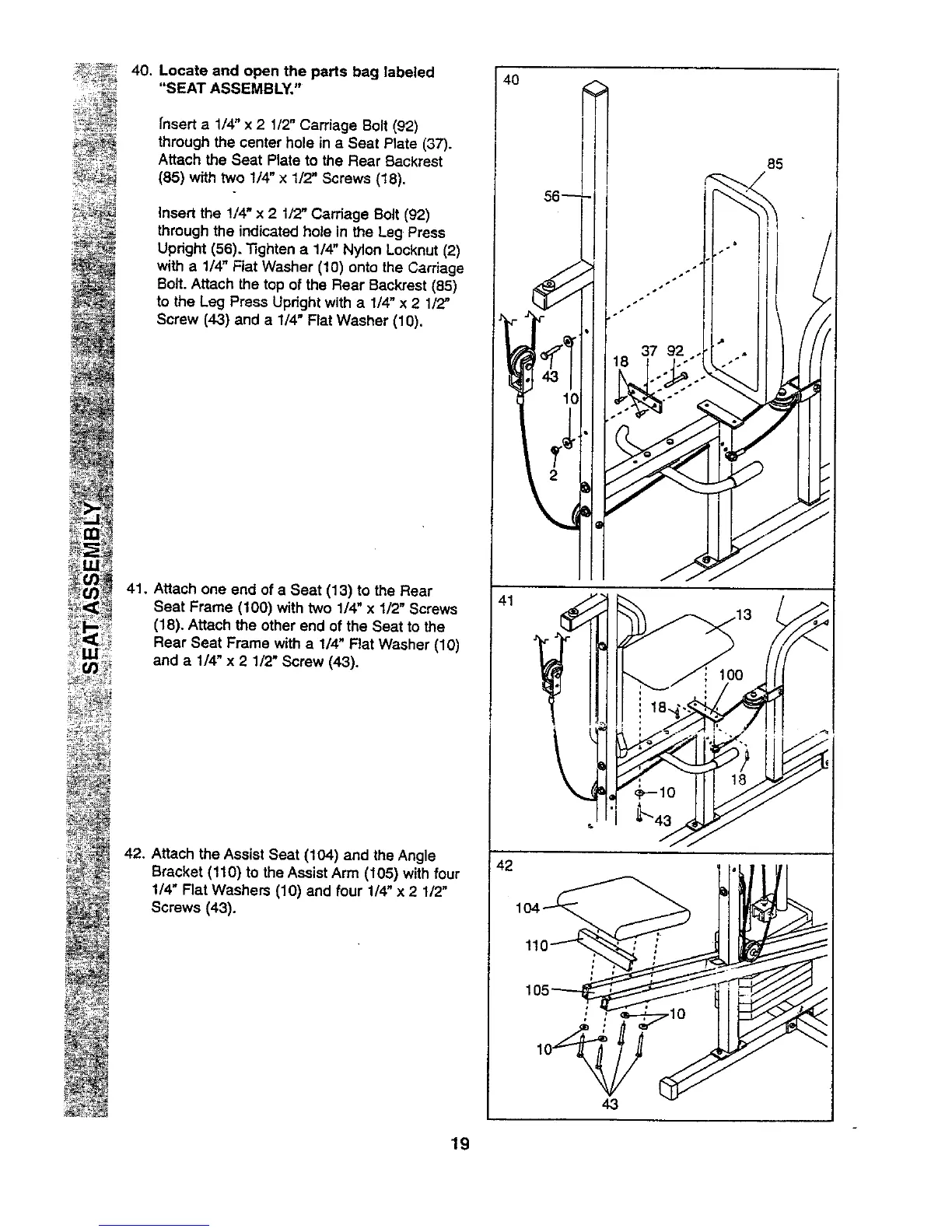

40. Locate and open the parts bag labeled
"SEAT ASSEMBLY,"
fnsert a 1/4" x 2 1/2" Carriage Bolt (92)
through the center hole in a Seat Plate (37).
Attach the Seat Plate to the Rear Backrest
(85) with two 1/4" x I/2" Screws (18).
Insert the !/4" x 2 1/2" Carriage Bolt (92)
through the indicated hole in the Leg Press
Upright (56). Tighten a 1/4" Nylon Locknut (2)
with a 1/4" Flat Washer (10) onto the Carriage
Bolt. Attach the top of the Rear Backrest (85)
to the Leg Press Updght with a 1/4" x 2 1/2"
Screw (43) and a 1/4" Flat Washer (10).
41. Attach one end of a Seat (13) to the Rear
Seat Frame (100) with two 1/4" x 1/2" Screws
(18). Attach the other end of the Seat to the
Rear Seat Frame with a 1/4" Flat Washer (10)
and a 1/4" x 2 1/2" Screw (43).
42. Attach the Assist Seat (104) and the Angle
Bracket (110) to the Assist Arm (105) with four
1/4" Flat Washers (10) and four 1/4" x 2 1/2"
Screws (43).
40
85
37 92
41
42
11
4.3
19
