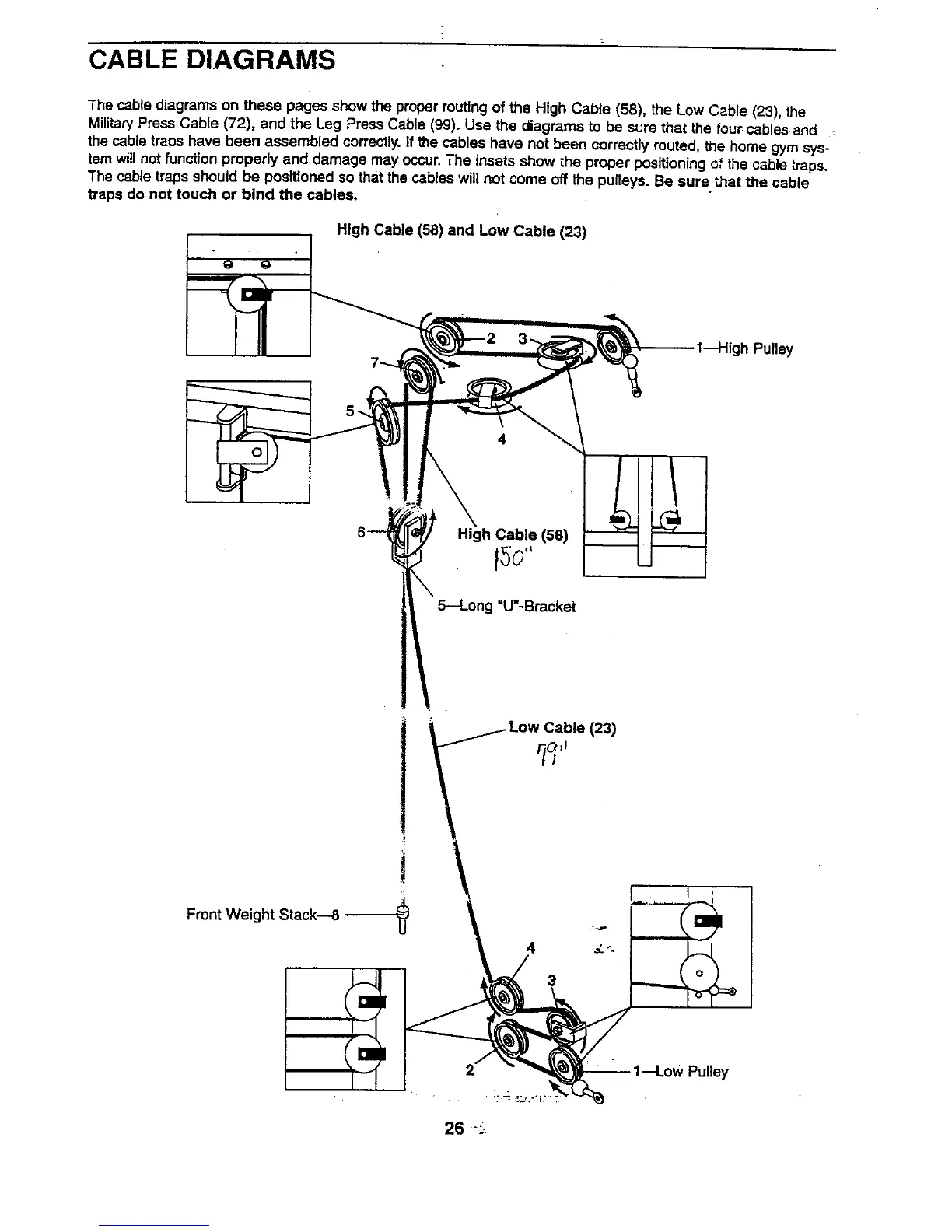

CABLE DIAGRAMS
The cable diagrams on these pages show the proper routing of the High Cable (58), the Low Cable (23), the
Military Press Cable (72), and the Leg Press Cable (99). Use the diagrams to be sure that the four cablesand
the cable traps have been assembled correctly. It the cables have not been correctly routed, the home gym sys-
tem will not function properly and damage may occur. The insets show the proper positioning of the cable traps.
The cable traps should be positioned so that the cables will not come off the pulleys. Be sure that the cable
traps do not touch or bind the cables.
High Cable (58) and Low Cable (23)
l---High Pulley
4
h Cable (58)
=U"-Bracket
!1
I
Front Weight Stack---8
\
4
3
2
26 :_.
To Next Page
