PART LIST—Model No. WEEMSY60420 R0902A
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description
1 3 5/16” x 2 1/2” Carriage Bolt
2 2 5/16” Jam Nut
3 29 5/16” Nylon Locknut
4 1 Base
5 1 Stabiliser
6 2 1/2” Tap Screw
7 6 1/4” Nylon Locknut
8 22 5/16” Flat Washer
9 6 3/8” Flat Washer
10 10 1/4” Flat Washer
11 10 5/16” x 2 3/4” Bolt
12 4 Handgrip
13 1 Seat
14 3 5/16” x 2 3/4” Carriage Bolt
15 6 3 1/2” Pulley
16 1 3/8” x 3 1/2” Bolt
17 1 5/16” x 3” Bolt
18 8 1/4” x 3/4” Screw
19 2 Weight Bumper
20 1 Pulley Plate
21 13 3/8” Nylon Locknut
22 1 1” Metal Spacer
23 1 Short Cable
24 2 5/16” x 1 1/2” Bolt
25 10 Weight
26 1 Weight Pin
27 3 2” Inner Cap
28 1 13 1/2” Pad Tube
29 1 Leg Lever
30 2 6” Pad
31 1 13” Pad Tube
32 4 1 1/2” Inner Cap
33 5 5/16” x 2 1/4” Bolt
34 4 3/4” Round Inner Cap
35 1 5/16” x 3 1/4” Short Thread Bolt
36 1 Seat Frame
37 2 Seat Plate
38 2 1/4” x 2” Carriage Bolt
39 1 Nylon Strap
40 1 Seat Knob
41 1 Backrest
42 1 Front Upright
43 4 1/4” x 2 1/2” Screw
44 6 1 3/4” Inner Cap
45 2 7” Pad
46 2 Arm
47 4 7” Handle
48 8 3/8” x 2” Bolt
49 8 1” Round Inner Cap
50 2 5 1/2” Pad
51 2 1/2” x 3/8” Spacer
52 1 Arm Frame
53 2 Plastic Bushing
Key No. Qty. Description
54 6 1” Retainer
55 4 1” Round Cover Cap
56 2 Large “U” Bracket
57 1 1 1/4” Inner Cap
58 2 Narrow Swivel Bracket
59 4 Cable Trap
60 2 4 1/2” “L” Pin
61 3 5/16” x 2” Bolt
62 1 3/8” x 2” Eyebolt
63 1 Stop Bracket
64 1 1” Plastic Stop
65 2 1/2” x 1/2” Spacer
66 1 Long Cable
67 1 Top Frame
68 2 Arm Frame Bushing
69 1 Arm Frame Bracket
70 3 3/8” x 2 3/4” Bolt
71 1 Wide Swivel Bracket
72 2 Weight Guide
73 2 1/2” x 3/4” Spacer
74 1 5/16” x 6” Bolt
75 1 Adjustment “U” Bracket
76 1 Nylon Rope
77 4 4 1/2” Pulley
78 2 “I”-Plate
79 1 Weight Tube Endcap
80 1 Weight Tube
81 1 Weight Guide Bracket
82 1 Rear Upright
83 3 Cable Clip
84 1 Chain
85 1 Lat Bar
86 1 Brace
87 1 5/16” x 3 1/2” Bolt
88 2 2” Outer Cap
89 1 Right Pedal
90 1 Left Pedal
91 2 Resistance Cylinder
92 2 Pedal Cover
93 4 1 1/2” Bushing
94 2 Resistance Cylinder Bushing Set
95 2 5/8” Retainer
96 2 5/8” Round Cover Cap
97 2 5/8” Spacer

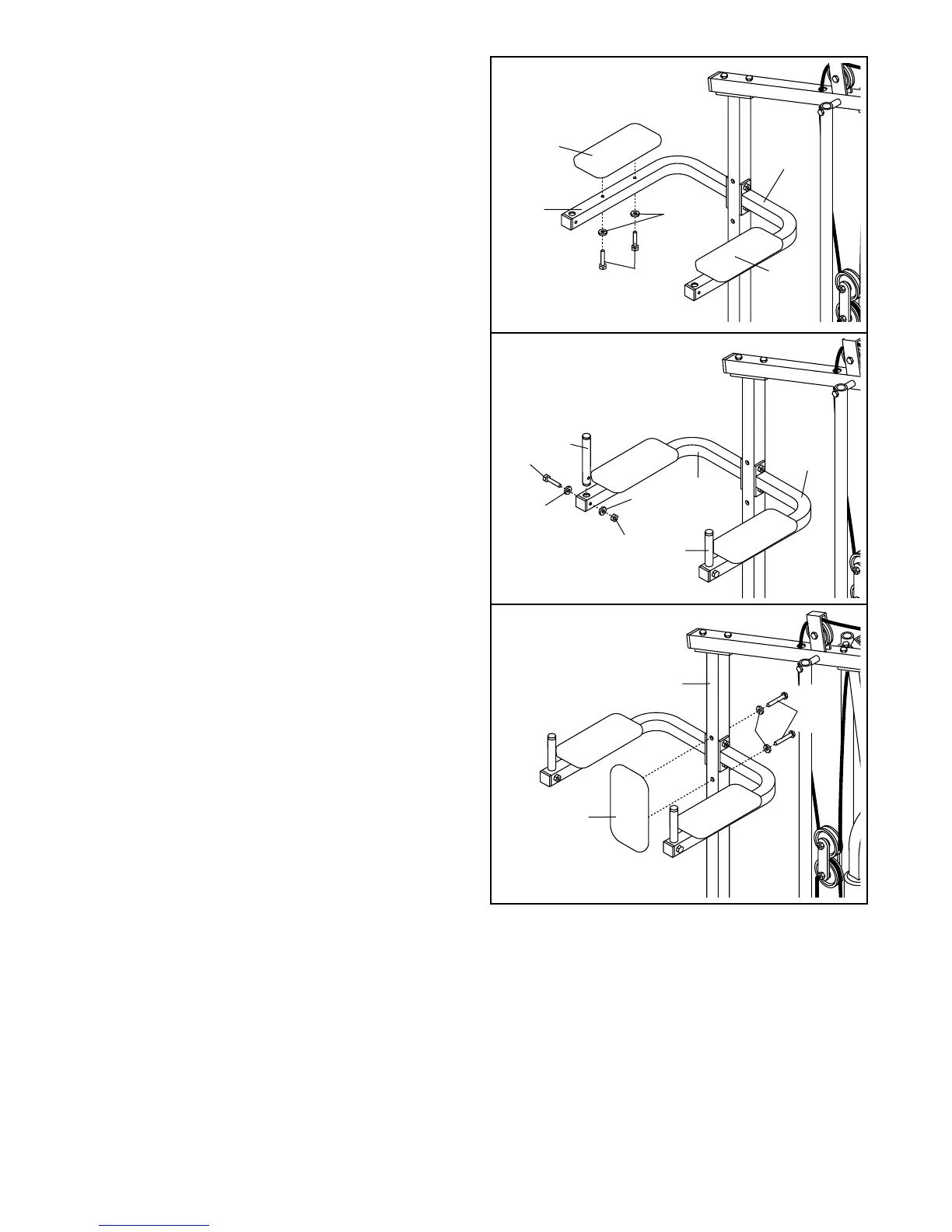

98 1 VKR Backrest
99 2 VKR Armrest
100 1 Left VKR Arm
101 1 Right VKR Arm
102 4 1/4” x 2” Screw
103 1 Plastic Flanged Bushing
104 1 5/16 x 3 1/4” Bolt
# 1 User’s Manual
