7
9
10
11
79
Pin
Groove
Welded Pin
80
72
Upper Ends of
Weight Guides
have Holes
25
25
72
67
74
73
3
44
68
67
49
49
42
69
7
18
44
Lubricate
52

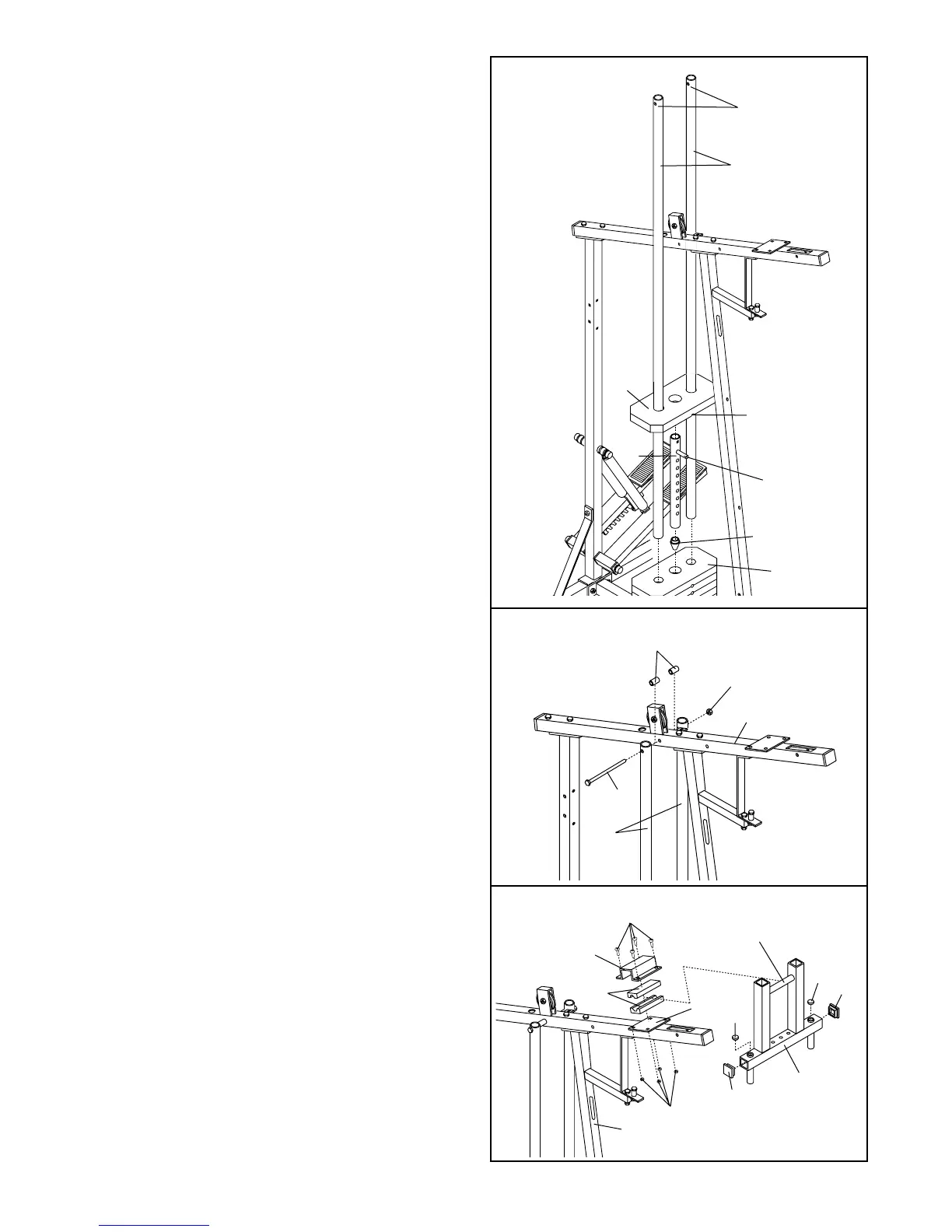

9. Press the Weight Tube Endcap (79) into the indi-
cated end of the Weight Tube (80).
Insert the Weight Tube (80) into the stack of
Weights (25). Slide the tenth Weight (25) onto the
upper end of the Weight Tube. The Weight Tube
must be turned so the welded pin is in the pin
groove in the Weight.
Locate the lower ends of the Weight Guides (72)
(there are holes near the upper ends). Insert the
lower ends of the Weight Guides into the ten
Weights (25).
10. Attach the upper ends of the Weight Guides (72)
to the Top Frame (67) with the 5/16” x 6” Bolt
(74), the two 1/2” x 3/4” Bushings (73), and a
5/16” Nylon Locknut (3).
11. Press two 1 3/4” Inner Caps (44) and two 1”
Round Inner Caps (49) into the Arm Frame (52).
Lubricate the upper axle on the Arm Frame (52).
Hold the axle between the two Arm Frame
Bushings (68). Set the Arm Frame Bushings and
the Arm Frame on the welded plate on the Top
Frame (67). Place the Arm Frame Bracket (69)
over the Arm Frame Bushings. Attach the Arm
Frame Bracket to the Top Frame with four 1/4” x
3/4” Screws (18) and 1/4” Nylon Locknuts (7).
