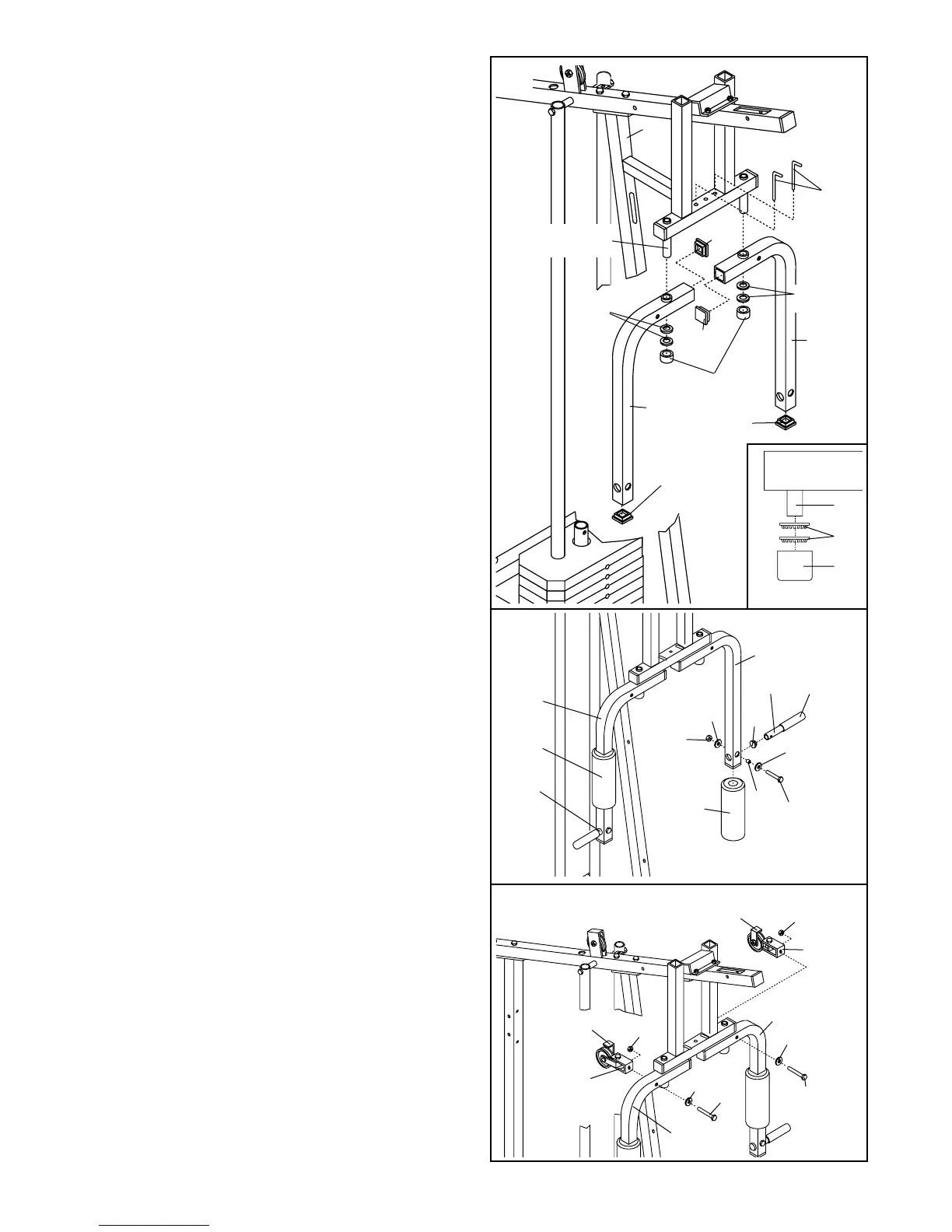

12. Press two 1 3/4” Inner Caps (44) into each of the
Arms (46).
Apply lubricant to the lower axles on the Arm
Frame (52). Slide an Arm (46) onto one of the
axles. Hold two 1” Retainers (54) and a 1” Round
Cover Cap (55) against the lower end of the axle.
The teeth on the Retainers must bend toward
the Round Cover Cap (see inset drawing). Tap
the Retainers and Round Cover Cap onto the axle.
Attach the other Arm (46) to the Arm Frame (52) in
the same manner.
Insert the two 4 1/2” “L” Pins (60) down through the
indicated holes in the Arm Frame (52) and the
Arms (46).
13. Wet both Arms (46) with soapy water. Slide a 7 3/4”
Pad (45) onto each Arm.
Press a 1” Round Inner Cap (49) into the indicated
end of a 7” Handle (47). Wet the other end of the
Handle with soapy water and slide a Handgrip (12)
onto it. Insert the Handle into one of the Arms (46).
Attach the Handle with a 5/16” x 2 1/4” Bolt (33),
two 5/16” Flat Washers (8), a 1/2” x 3/8” Spacer
(51) and a 5/16” Nylon Locknut (3).
Attach a 7” Handle (47) to the other Arm (46) in the
same manner.
14. Attach a Large “U” Bracket (56) to one of the Arms
(46) with a 3/8” x 2 3/4” Bolt (70), 3/8” Flat Washer
(9), and 3/8” Nylon Locknut (21). Be sure that the
Cable Trap (59) is on the side shown.
Attach a Large “U” Bracket (56) to the other Arm
(46) in the same manner.
