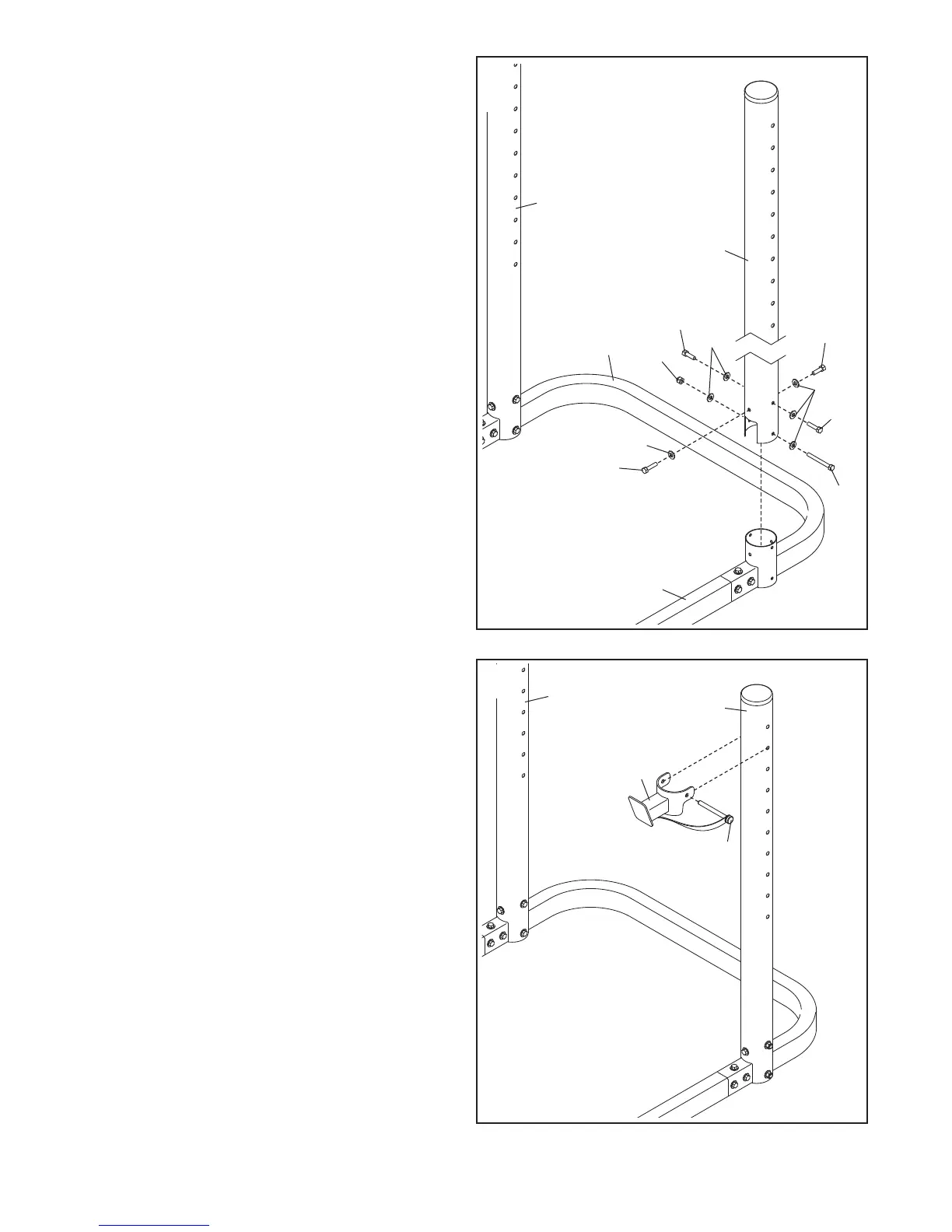

13. Slide one of the Uprights (11) onto the Base (7).
Attach the Upright with an M10 x 110mm Bolt
(44), four M10 x 20mm Screws (34), six M10
W
ashers (35), and an M10 Locknut (37).
A
ttach the other Upright (11) to the Base (7)
in the same way.
14. Hold a Weight Rest (12) on the indicated side
of an Upright (11), and align the Weight Rest
with one of the adjustment holes in the Upright.
Insert the Large Pin (13) through the Weight
Rest and the Upright.
Attach the other Weight Rest (not shown) to
the other Upright (11) in the same way.
Attach both Weight Rests at the same
height.
13
