9
10. Attach the Curl Pad (20) to the Curl Post (6)
with two M6 x 16mm Screws (39).
8
10
23
23
20
6
39
31
22
22
22
22
22
4
5
23
23

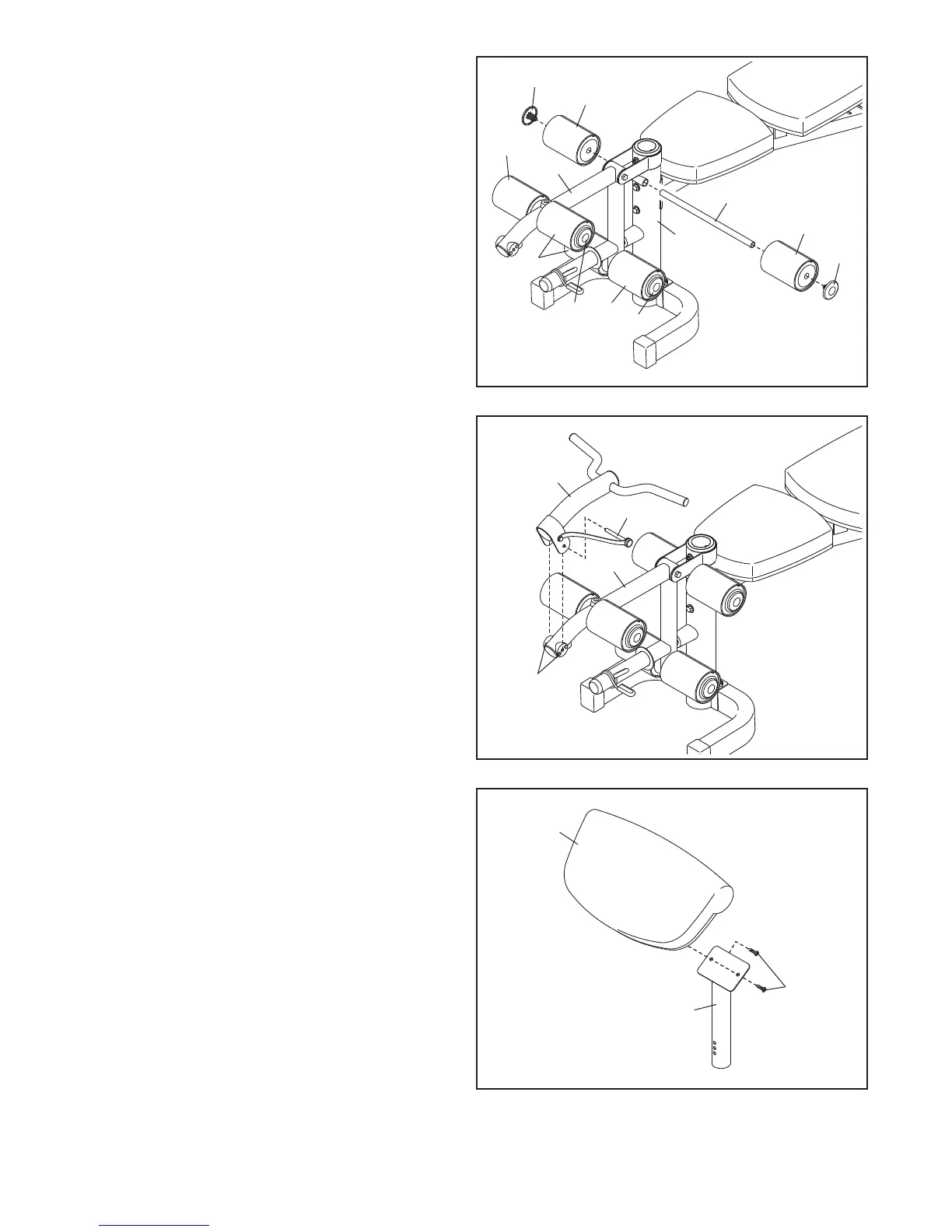

8. Insert the Long Pad Tube (31) through the Front
Leg (4).
S
lide two Foam Pads (22) onto the Long Pad
Tube (31). Then, press two Pad Caps (23) into
t
he ends of the Long Pad Tube.
Attach the two Short Pad Tubes (not shown)
and the remaining Foam Pads (22) and Pad
Caps (23) to the Leg Lever (5) in the same
way.
9. Slide the Curl Arm (50) downward over the Curl
Arm Bushings (47). Then, insert the Small Pin
(52) through the Curl Arm, the Curl Arm
Bushings, and the Leg Lever (5).
9
50
52
5
47
