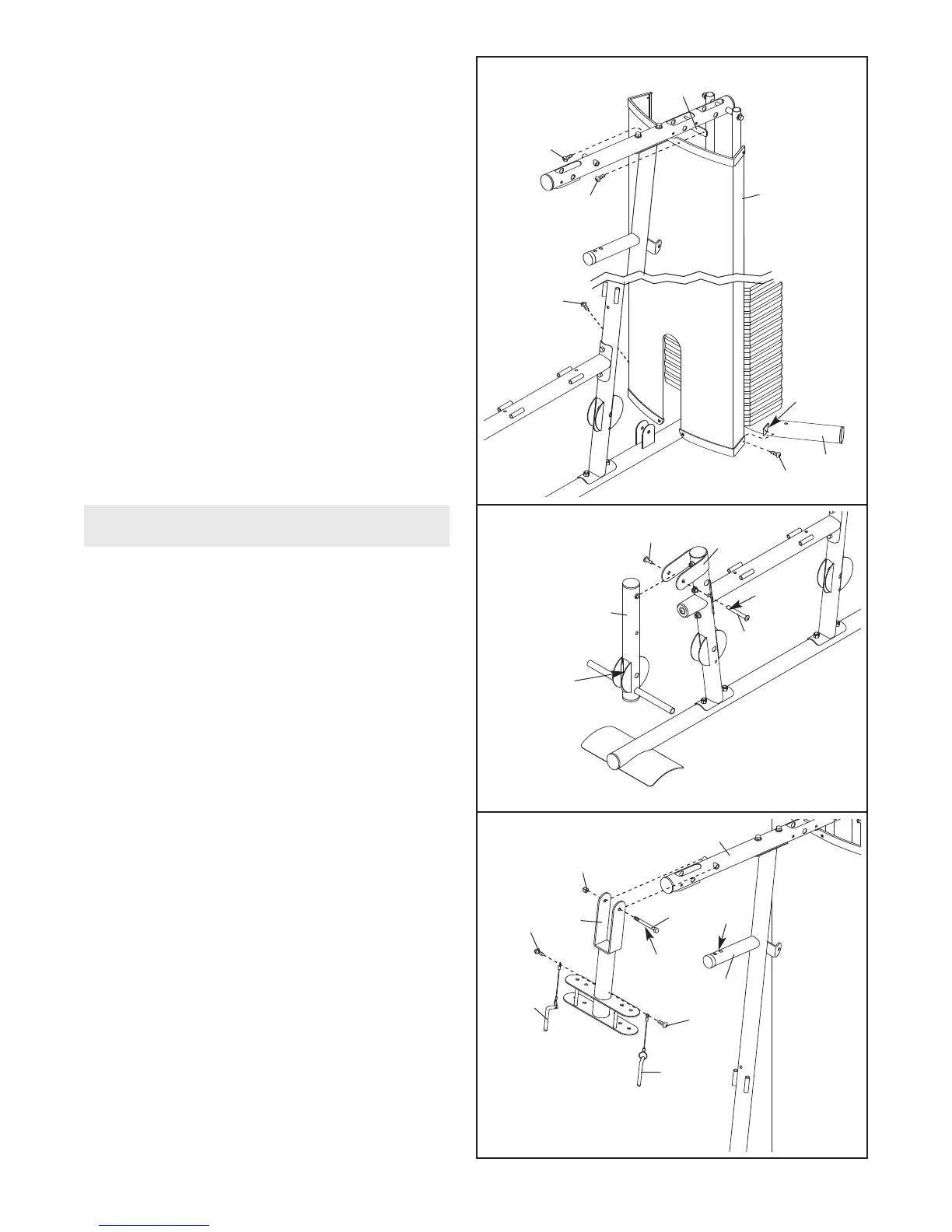

8. Attach the Shroud (17) to the Top Frame (4)
with two M4 x 16mm Screws (86).
Attach the Shroud (17) to the brackets on the
S
tabilizer (2) with two M4 x 16mm Screws (86).
Make sure the brackets are inside the
Shroud.
Tighten the Nylon Locknuts (56, 58) used in
steps 2–6.
9. Grease the M10 x 70mm Bolt Set (73). Orient
the Leg Lever (8) so that the welded support is
on the side shown. Attach the Leg Lever to the
Front Leg (7) with the Bolt Set. Do not over-
tighten the Bolt Set; the Leg Lever must
pivot freely.
10.
Grease an M10 x 90mm Button Bolt (67).
Attach the Pivot Frame (5) to the T
op Frame (4)
with the Button Bolt and an M10 Nylon Locknut
(56). Do not overtighten the Nylon Locknut;
the Pivot Frame must pivot freely
.
Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 16mm Screws (86). Insert the
Arm Pins into the two holes in the Upright (3).
8
9
10
8
6
86
17
4
86
86
Bracket
2
73
73
Grease
Welded
Support
7
8
Grease
Holes
5
56
67
86
86
3
40
40
4
Arm Assembly
