13

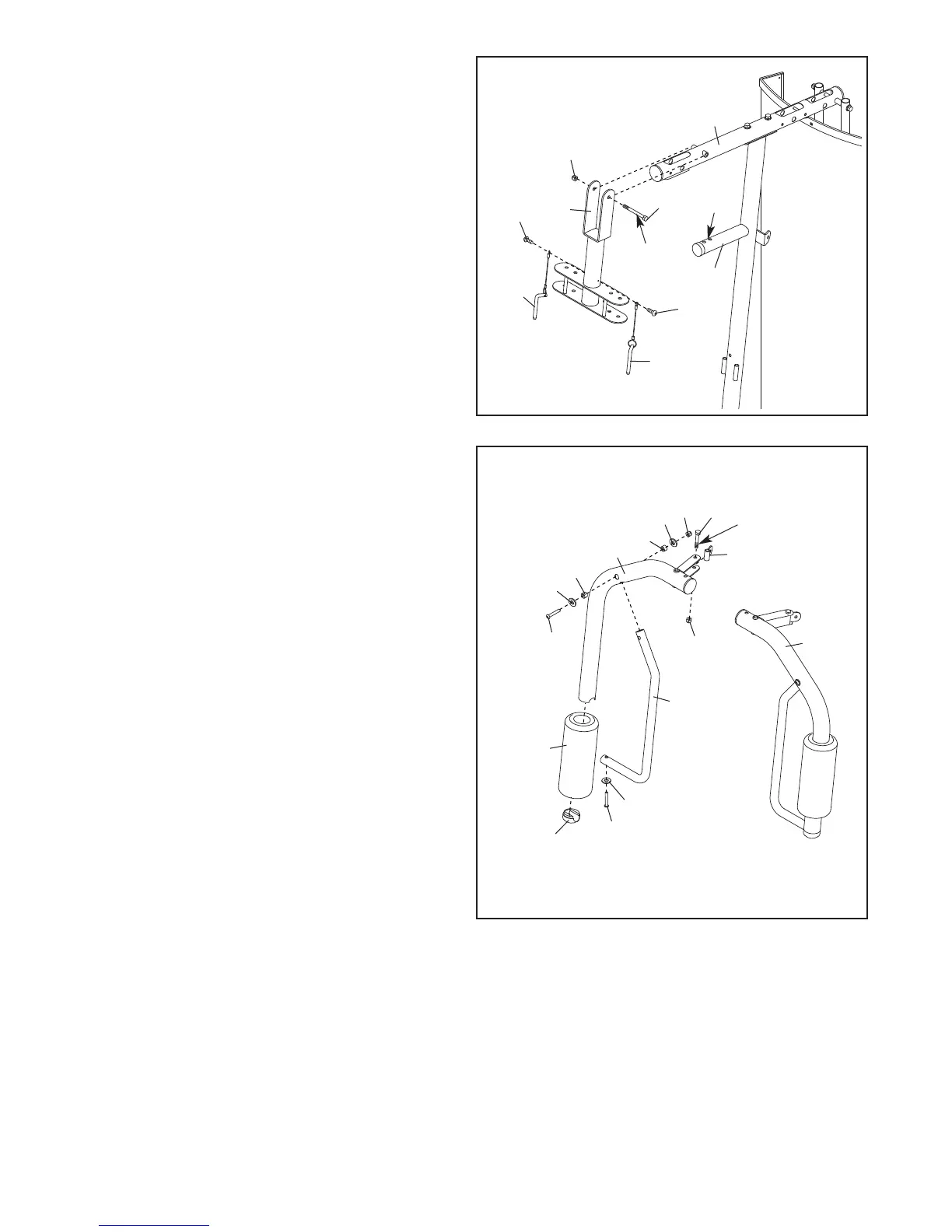

10. Apply grease to an M10 x 90mm Bolt (67).
Attach the Pivot Frame (5) to the Top Frame (4)
w
ith the Button Bolt and an M10 Locknut (56).
Do not overtighten the Locknut; the Pivot
Frame must pivot freely.
Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 19mm Screws (69). Insert the
Arm Pins into the two holes in the Upright (3).
10
Grease
H
oles
5
56
67
69
69
3
40
40
4
11. Apply grease to an M10 x 55mm Bolt (66).
Attach a Cable Pivot (39) to the Right Arm (9)
with the Button Bolt and an M10 Locknut (56).
Do not overtighten the Locknut; the Cable
Pivot must pivot freely.
Wet the inside of a Large Foam Pad (42) with
soapy water. Slide the Large Foam Pad onto
the Right Arm (9).
Attach the upper end of a Handle (11) to the
Right Arm (9) with an M10 x 75mm Bolt (85),
two M10 Washers (57), two 16mm Spacers
(52), and an M10 Locknut (56). Do not tighten
the Button Bolt yet.
Press a Handle Cap (31) into the Right Arm (9).
Attach the lower end of the Handle (11) to the
Right Arm with an M10 x 40mm Bolt (77) and
an M10 Large Washer (80). Tighten the M10 x
75mm Bolt (85).
Assemble the Left Arm (10) in the same
manner.
11
11
10
39
31
77
80
66
52
52
57
85
56
56
57
9
42
Grease
