6
M8 Washer (59)
M8 x 75mm Carriage Bolt (78)
M4 x 10mm
Screw (84)
M10 Washer (57)
M10 x 70mm Bolt Set (73)
Large Washer (87)
M12 Nut (86)
M8 Locknut (58)
M10 Locknut (56)
M10 x 45mm
Bolt (81)
M10 x 55mm Bolt (66)
M10 x 65mm Bolt (75)
M10 x 75mm Bolt (85)
M10 x 80mm Bolt (71)
M8 x 80mm Bolt (68)
M6 x 80mm Screw (70)
M10 x 80mm 10.9G Bolt (79)
M10 x 90mm Bolt (67)
M10 x 160mm Bolt (74)
M6 x 16mm
Screw (62)
M4 x 19mm
Screw (69)
M8 x 19mm
Shoulder
Bolt (65)
M10 x 40mm
Bolt (77)
M6 Washer
(82)
M10 Large
Washer (80)

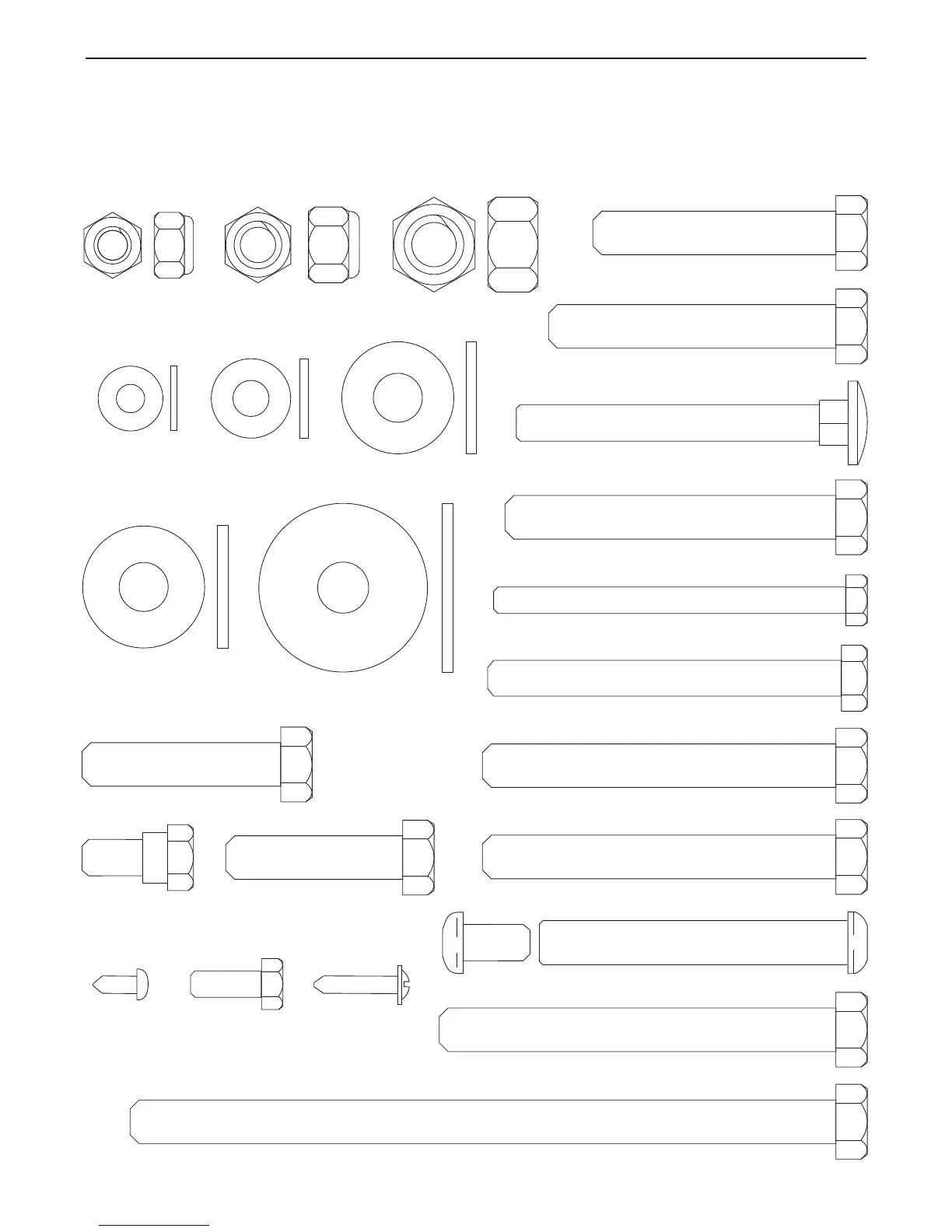

PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the
h
ardware kit, check to see if it has been preattached.
