Weidmüller Crimpfix 2.5 M - Wire Feeding - Wire Section; Tooling Set (Optional); Feeding Funnel 0.34

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 10

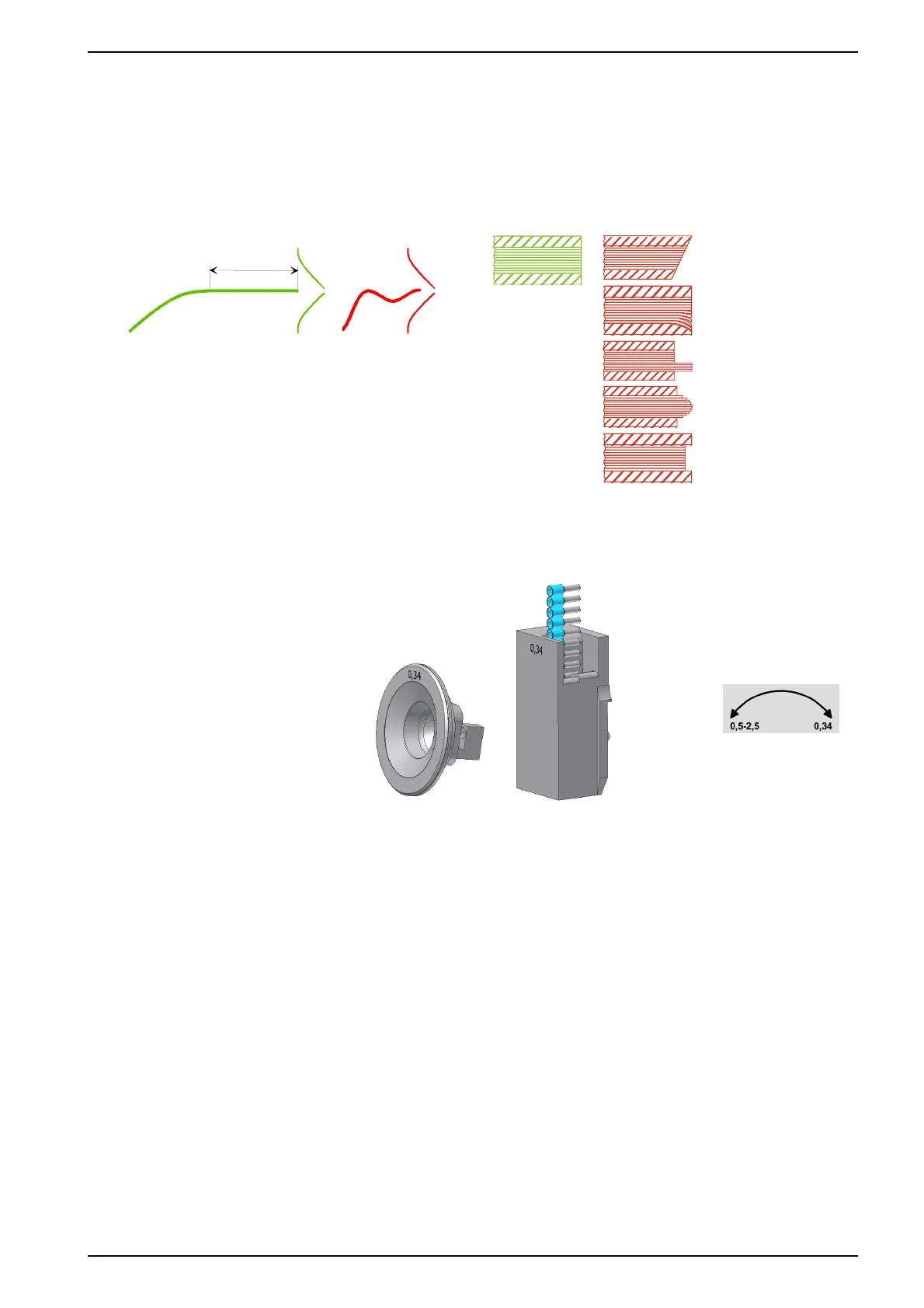

7.7 Wire feeding - Wire section
• The wire has to be cut off straight and may not have any bends or bows.
• Insert the wire into the feeding funnel until the working cycle is triggered.
• After triggering hold the wire.
correct incorrect
oblique cut
deformed wire
wires sticking out
squeezed wire
40 mm
correct incorrect
wires standing back
Figure 5: Wire feeding - Wire section
7.8 0.34-Tooling Set (optional)
Contents: Magazine 0.34
Feeding funnel 0.34
Label
Figure 6: 0.34-Tooling-Set (optional)
The H 0,34/12 ferrules may be handled only with the 0.34-tooling set.
Set the cross-section range by rotating the adjustment screw on front of the machine.
• Take out the plastic plug.
• Turn the screw clockwise with an Allen key to the limit stop.
To setup the machine back to the range of 0.5 – 2.5 mm² proceed in opposite direction.
7.9 Feeding funnel
Remove feeding funnel
• Loosen the screws.
• Take out the feeding funnel
Install feeding funnel
• Insert the feeding funnel that the marking is on top.
• Tighten the screws evenly.
Feeding funnel
Magazine
Label
