Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 12
9. Special functions
9.1 Display Contrast
Mains switch +
Edit
E
Exit
9.2 Adjusting Stripping Depth
Remove the magazine
Close the flap
2x
S-Motor
E
Press it 5 seconds till cursor
starts blinking
Reduce D ¼ enhance cutting
depth
or
Enhance D ¼ reduce cutting
depth
E
Confirm and back to the
operating menu
Check the stripping quality after changing the
stripping depth. (Chapter 7.6)
1
3
b
a
=
a
b
D
Isolation
Cutting edge of the stripping blades
Stranded wires

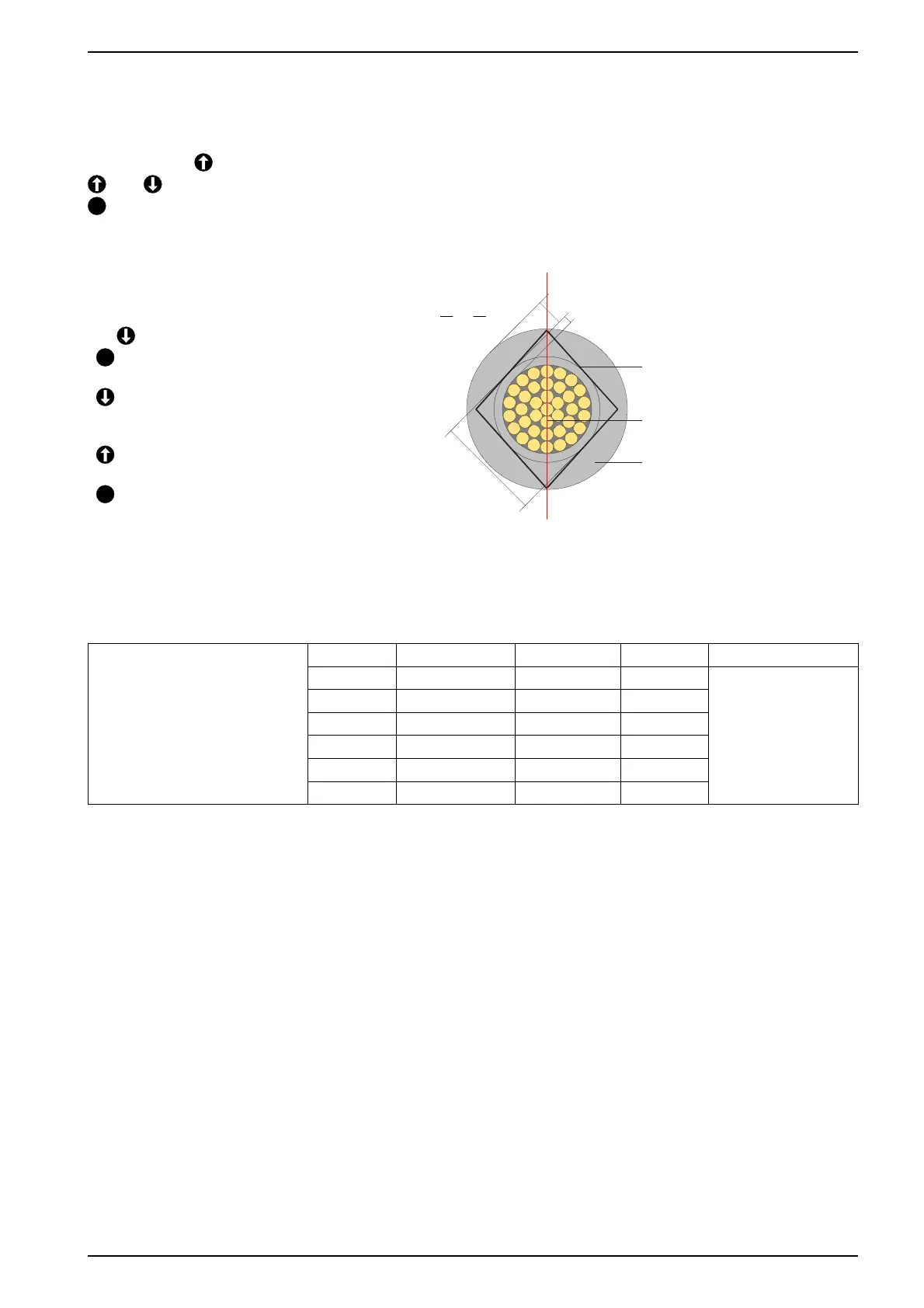

Figure 7: Top view of a correct stripping
The cut edge of the stripping blades have to look like a rue
and must be symmetrical to the stranded wires
Program Cross section Diameter Wire type Wire manufacturer
1 0,34 mm² 1,20 mm LiY
2 0,5 mm² 1,40 mm H05V-K
3 0,75 mm² 1,60 mm H05V-K
4 1,0 mm² 1,80 mm H05V-K
5 1,5 mm² 2,10 mm H07V-K
The adjusted guide values
depend on wire type and wire
manufacturer and can be used
for new intact striping blades.
6 2,5 mm² 2,45 mm H07V-K
LAPPKABEL
10. Maintenance
See chapter 3.8. Using risks
10.1 Stripping-waste container
• Regularly empty the stripping-waste container.
10.2 Interior
• Switch off the machine and unplug it.
• Remove the stripping-waste and other impurities
• Do not clean with compressed air.
• Do not oil and/or lubricate the machine.
