10 2604080000/03/08.2020Manual u-control
3 Systemoverview
Power supply concept
The u-control controllers and the u-remote modules use three
internal current paths as described in following chapter4. In-
put and output paths are supplied seperately, therefore a cus-
tom-t refreshing by power-feed modules is easyly feasible.

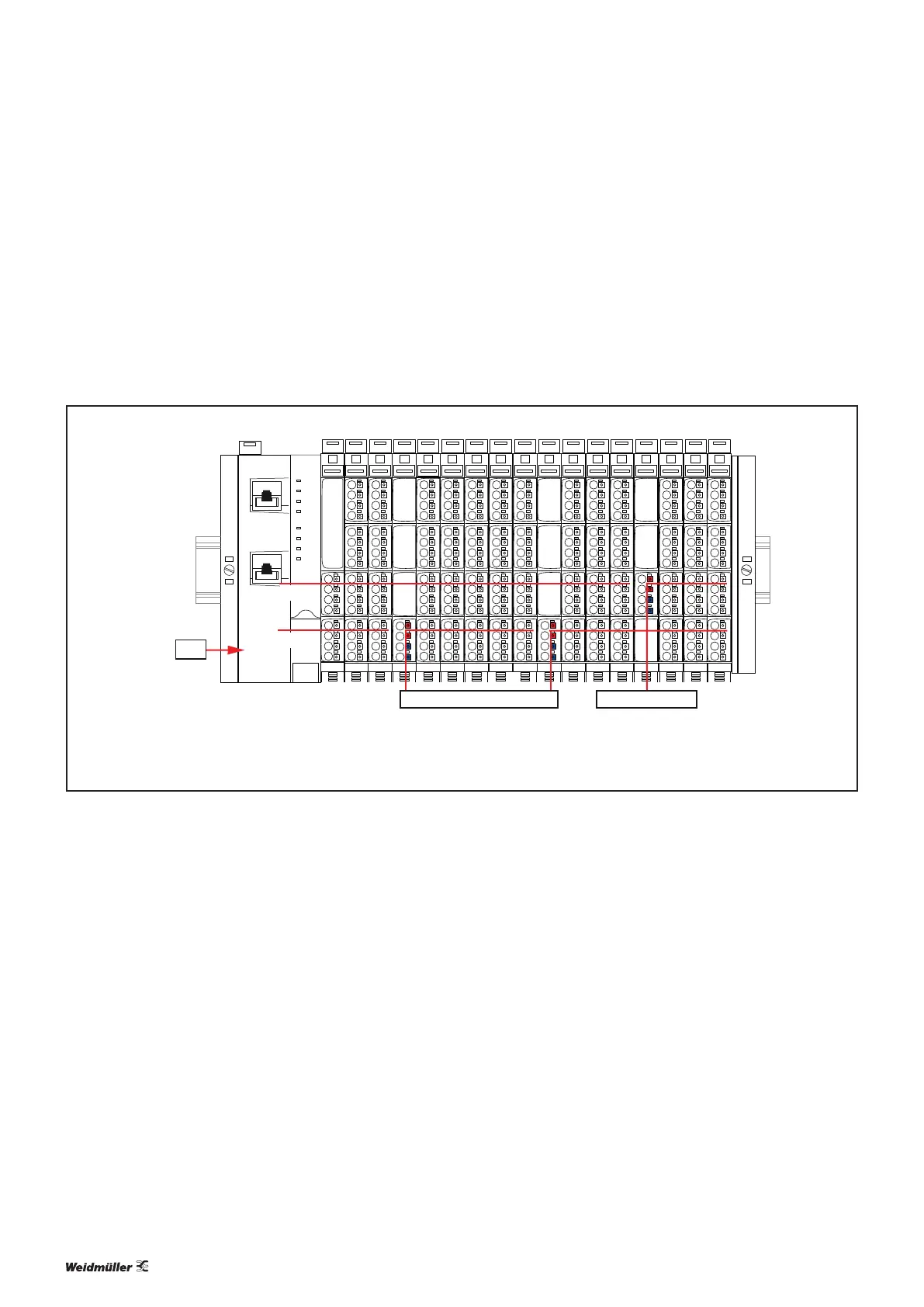

The gure shows the general supply concept. For detailed
description and calculation of the current demand please
regard sections 4.6 and 4.7.
X1
X2
DI DI DO PF-IDODO DI DIDI DODO DO
PF-OUC20 PF-OAO DO
U
OUT
24V
U
OUT
Power supply of the output paths
U
IN
Power supply of the intput paths
PF-X Power feed-in
Surge protection on each power feed-in
U
IN
24V
24V Power feed-in outputs
24V Power feed-in inputs
24V
Power supply of a u-control station in general
