16 2604080000/03/08.2020Manual u-control
4 Conguration | Installation distances

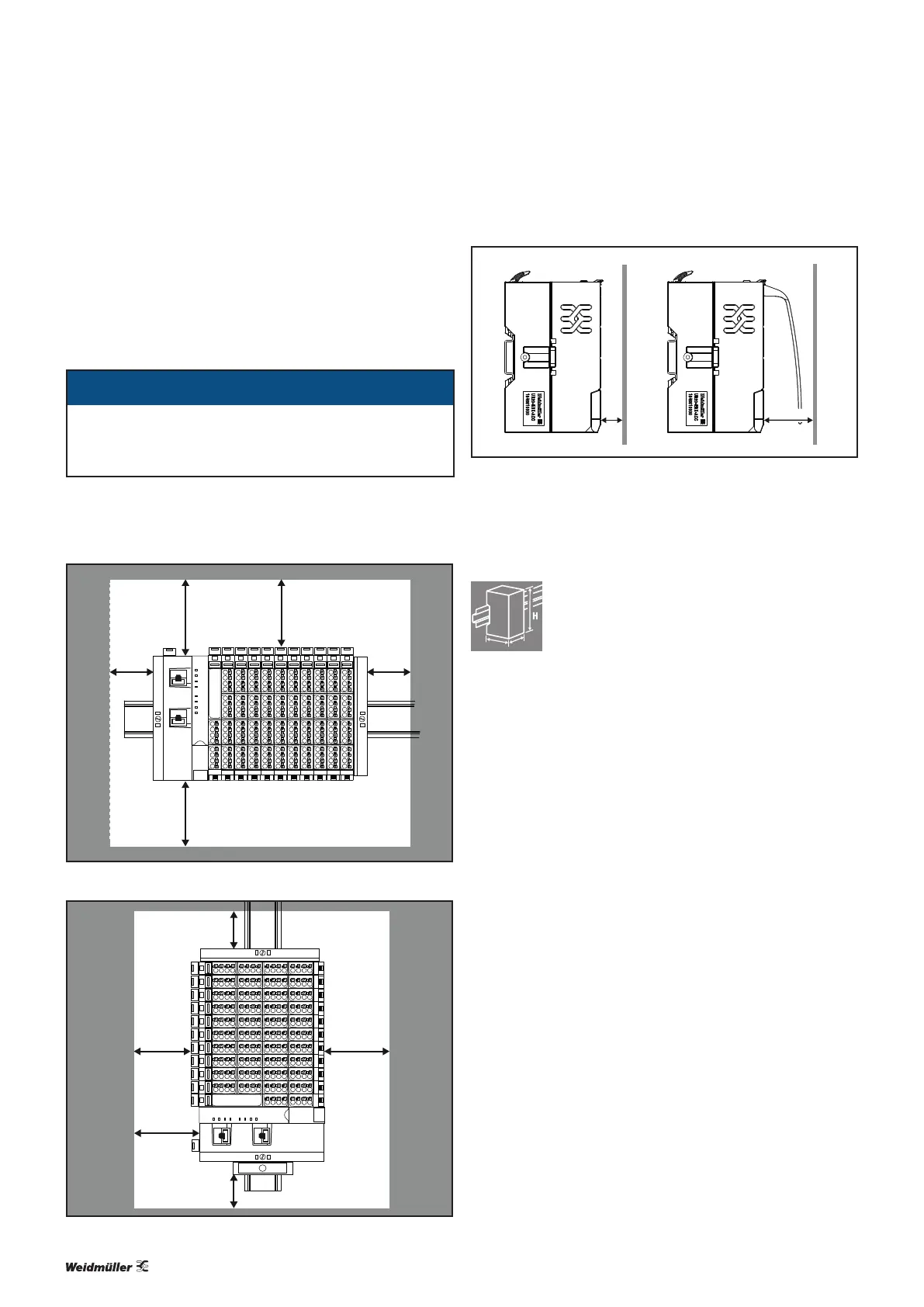

4.3 Installation distances
In order to be able to carry out the installation and subse-
quent maintenance work and to ensure sufcient ventilation,
the u-control station must be installed while observing the
following minimum distances (see the following gures).
ATTENTION
Depending on how the station shielding is implemented,
the specied distances may have to be made larger, where
necessary.
The minimum permissible conductor bending radii must also
be observed. Earth terminals already installed can be ignored
when calculating the distance.
40 mm
1.57"
35 mm
1.38"
40 mm
1.57"
20 mm
0.79"
20 mm
0.79"
X1
X2
Minimum distances for horizontal installation
35 mm
1.38"
40 mm
1.57"
40 mm
1.57"
20 mm
0.97"
20 mm
0.97"
X1 X2
Minimum distances for vertical installation
1.18"
30 mm
10
mm
0.39"
Minimum distance for electrical cabinet door (without/with swivel marker)
Calculation of space requirements
The space requirements for a u-control station with n mod-
ules (horizontal installation) is calculated as follows:
D
W
Height: 120mm (4.72")
+ 2
x
40mm (1.57") distances at top and bottom
=200mm (7.87")
Width: 8mm (1.57" ) end bracket
+ 52mm (2.05") controller
+ n
x
11.5mm (0.45") nmodules
+ 11.5mm (0.45") end plate and end bracket
+ 2
x
20mm (0.79") distances to the sides
=111.5mm (4.39") + n
x
11.5mm (0.45")
For vertical installation please interchange height and
width. When calculating the width, 12.5mm / 0.49"
must be added for the end bracket MEW35/1 (OrderNo.
1805610000).
