WEIHONG PM53C User Manual

Specialized Concentrated Focused
「8」Wiring
9: HSU
10: HSA
11: GND
12: HSB
13: HSZ
14: HSY
15: HSX
7:HX10
6:HX1
5:NC
4:NC
3:HB
2:HA
1:+5V
8:HX100

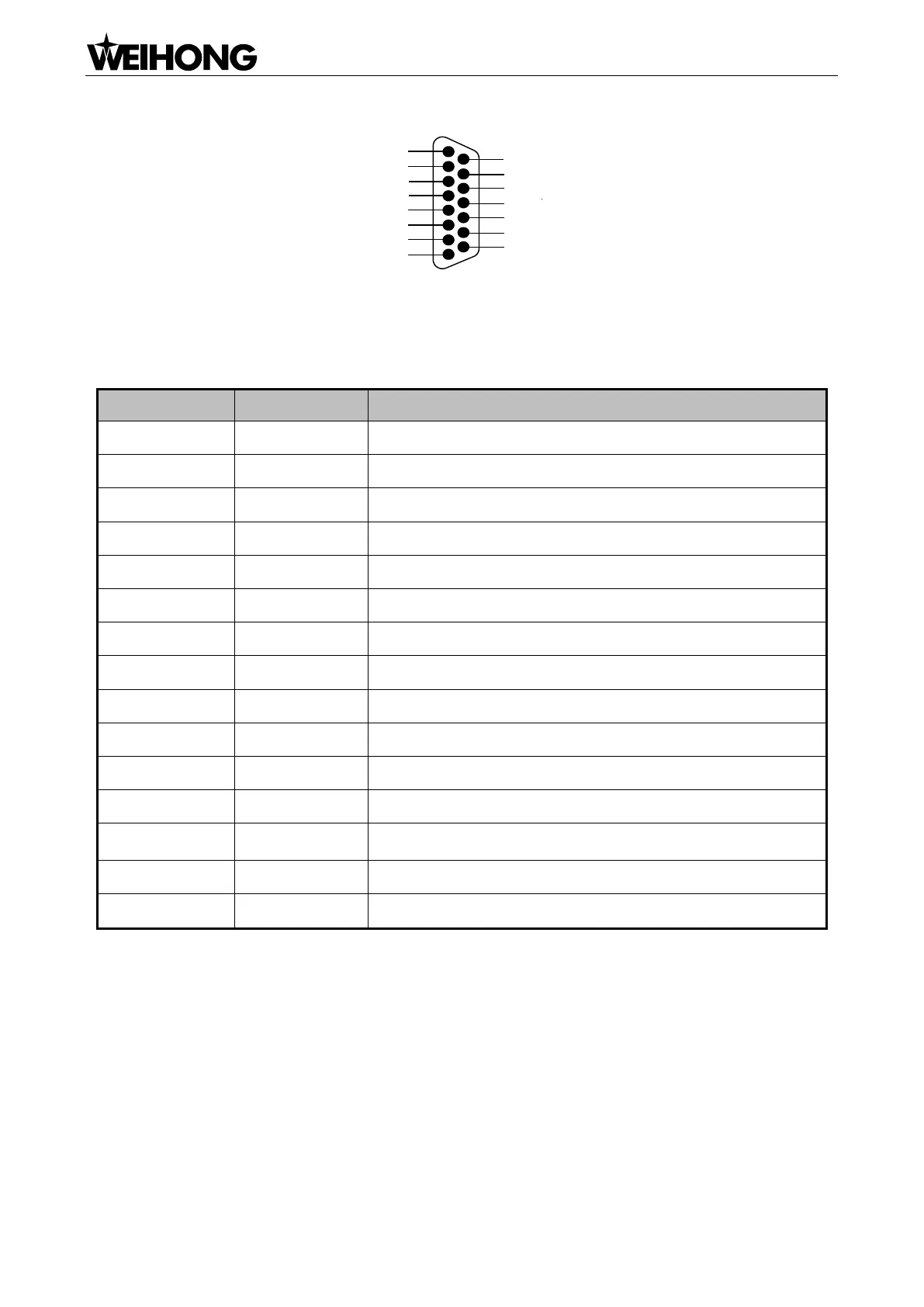

Fig. 3-6 Pins definition of MPG interfaces
 See table 1 for specific pin definition of the MPG interfaces.
Table 1 pin definition of the MPG interfaces
Pins No.
Definition
Description
1
+5V
Power on handwheel
2
HA
Encoder phase A signal
3
HB
Encoder phase B signal
4
NC
-
5
NC
-
6
HX1
X1 override
7
HX10
X10 override
8
HX100
X100 override
9
HSU
Selection of the fourth axis
10
HSA
Selection of the fifth axis
11
GND
Digital ground
12
HSB
Selection of the sixth axis
13
HSZ
Selection of Z axis
14
HSY
Selection of Y axis
15
HSX
Selection of X axis
