Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
27

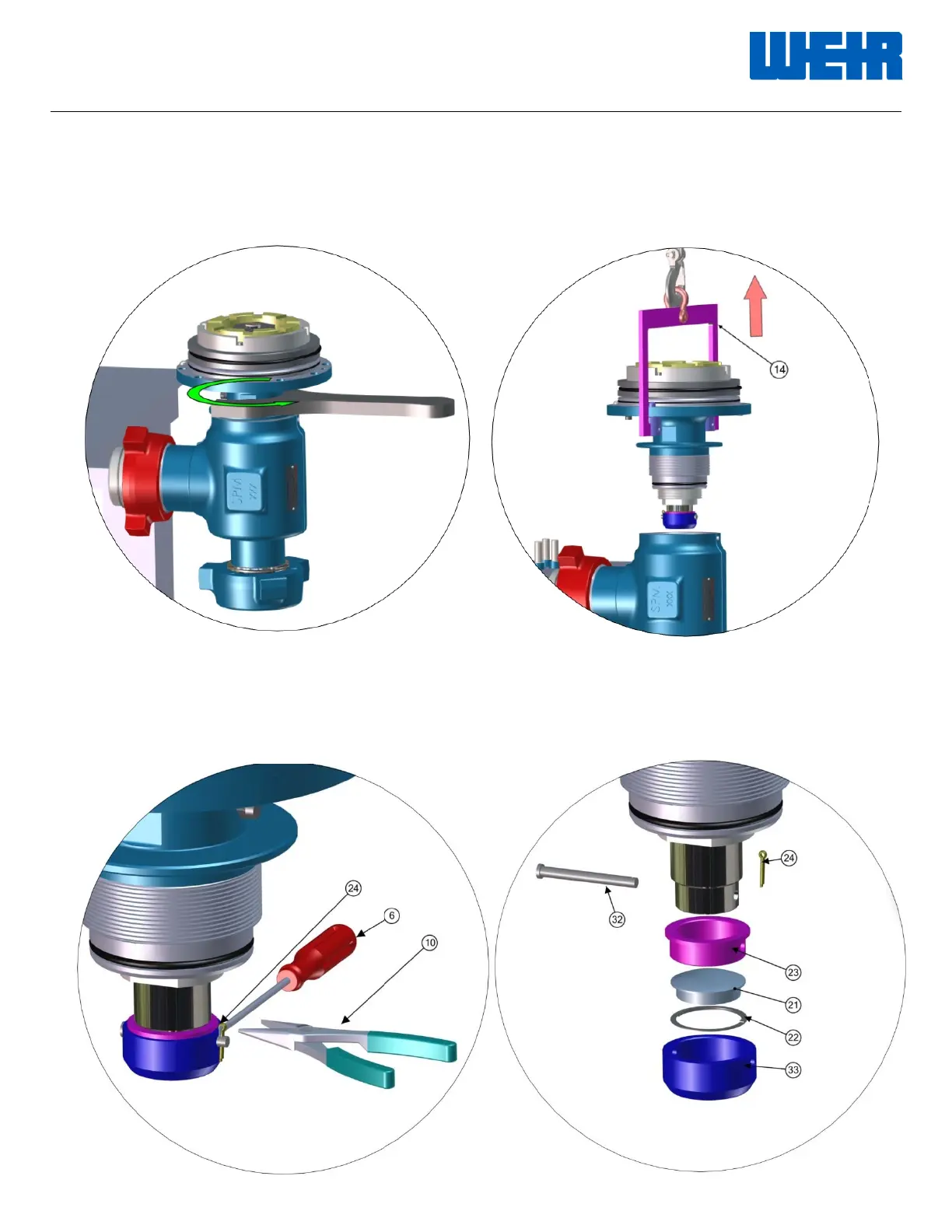

STEP 5
Once Cylinder has been removed with the crane, place it on the work table. Finish loosening the Top
assembly from the Body as shown in a CCW manner. Using the Flange Lifting Tool (14) lift the top
assembly off of the Body.
STEP 6
Remove the cotter pin (24) with a Flat Tip Screw Driver (6) and Needle Nose Pliers (10).
Tap the Clevis Pin (32) with a Hammer while holding bottom assembly. Slide the Bottom Assembly
away from the piston (Gate, 21; Spring, 22; Bushing, 23; Retainer Ring, 33).
To Next Page
