Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
28
Preventative Maintenance and Disassembly (Cont.):
STEP 7

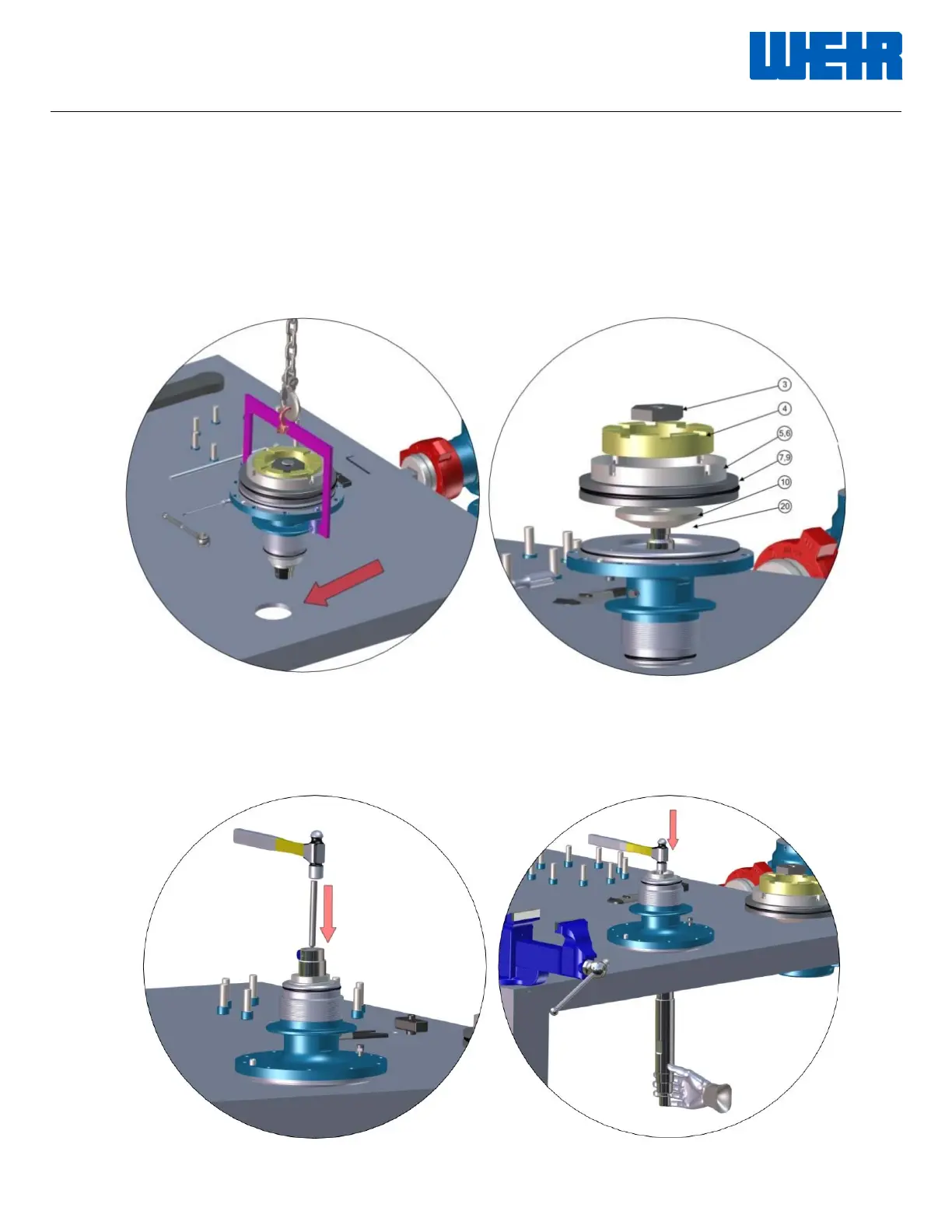

Using the Flange Lifting Tool; position the assembly into the hole in the work table. Pay special care
to the threading of the Flange as it is placed into position. Remove Hex Nut (3), Bumper (4), Hard
Stop and Bolts (5,6), Piston and Piston Seal (7,9), and Spacer (10) from the Piston (20).
STEP 8
Use a Hammer and rod to lightly tap the Cylinder Rod out of the Flange. Hold hand in position as
shown to guide and catch Cylinder Rod as it is removed from Flange.
To Next Page
