Part Number: 2A33687

Release Date: 8/27/2015

Revision: B

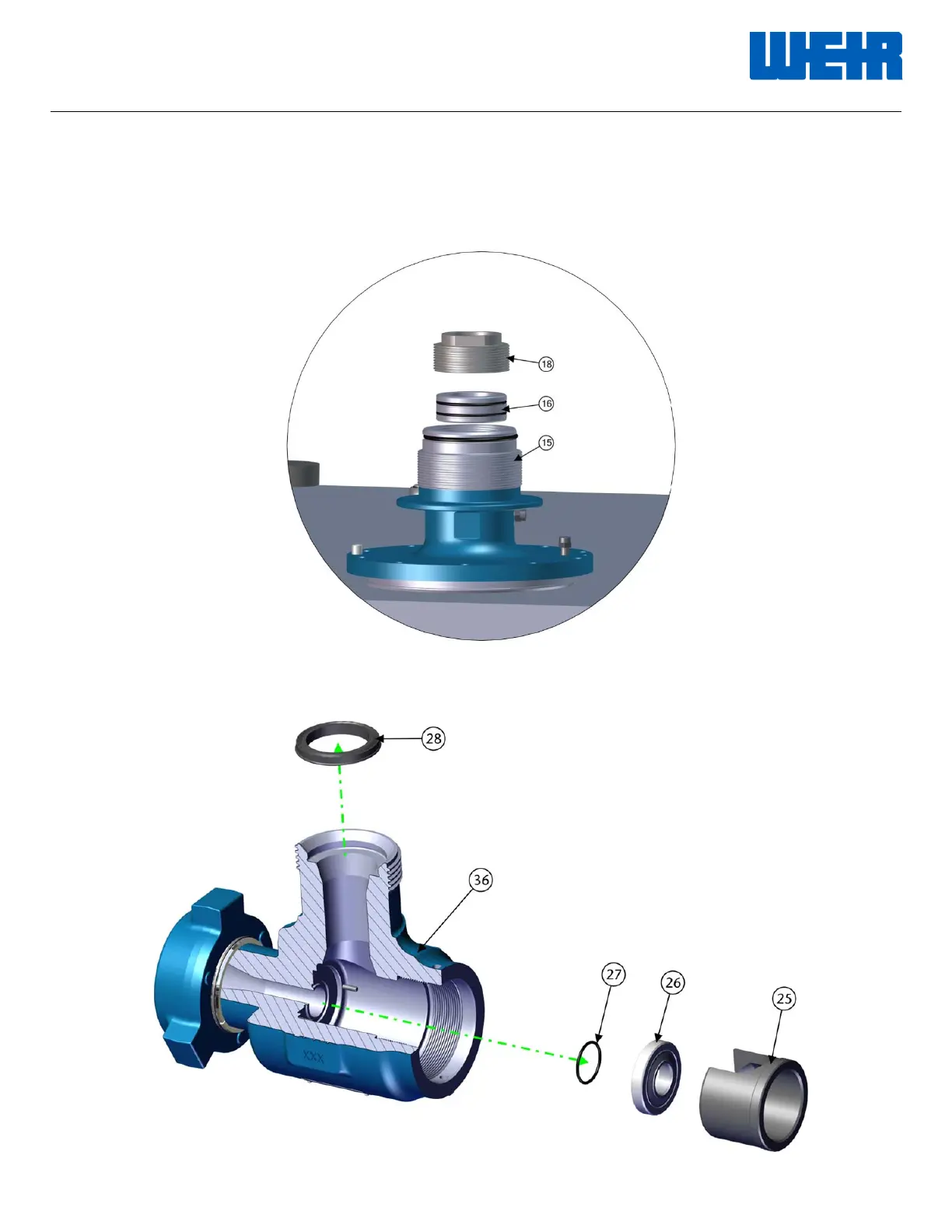

STEP 9

Remove the Packing Nut (18) and Packing Assembly (16) from the Flange. The Packing Assembly

might require a small amount of force to remove. This can be done by tapping it from the opposite

side with a bar and hammer.

STEP 10 (From Body)

Remove spider (25) from the valve body (36). Remove the nozzle assembly (26). Gently remove seal (27) from

the valve body (36). Remove union seal (28) from body (36).
