WEISS HP140T Series - Option with Integrated Pneumatic Valves

WEISS
Installation- and operating manual Handling device HP140T R09-2011
25/52
Product description
3.6 Option with integrated pneumatic valves
3
3.6 Option with integrated pneumatic valves
Up to two pneumatic valves [1] for the control of the gripper function can be installed in
the housing.
The supply of the pneumatic valves with compressed air is realised using a plug-in
threaded fitting[2]. The pneumatic tubes [3] for the gripper are passed through the top of
the housing.

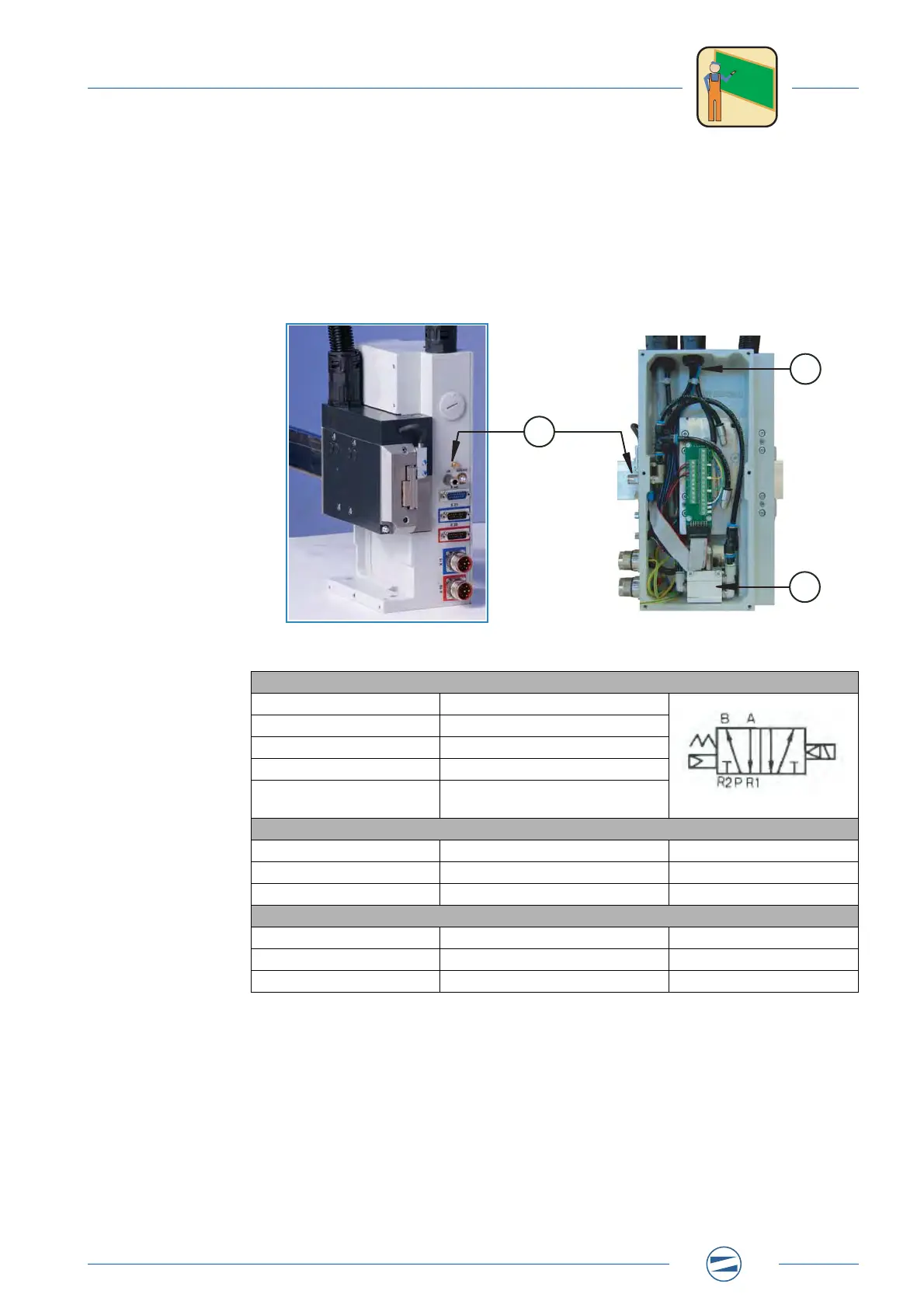

Fig. 11: Pneumatic valve
Pneumatic valve
Manufacturer SMC
Type SYJ3143-5LOU-Q
Function 5/2 monostable
Operating pressure 0.15 - 0.7 MPa
Flow rate 98 l/min
Pneumatic connections
Supply connection D = 6 mm
Hose line FESTO PUN-4 x 0,75-DUO-BS
Hose length Approx. 1.3 m
Electrical connections
Voltage 24 VDC
Valve 1 A1 - Output 1
Valve 2 A2 - Output 2
2
3
1
