WEISS
Installation- and operating manual Handling device HP140T R09-2011
29/52
Installation
5.3 Assembling the Pick & Place
5
5.3 Assembling the Pick & Place
The magnetic measurement system will be destroyed, in case there
is contact between the horizontal axles or with magnetized objects. The horizontal
axle of the Pick & Place therefore has a protective cover [1], which guards it against
damage and exposure to metallic or magnetic objects. These protective covers may
only be removed, once installation of the machine is complete. If several machines
are assembled, there must be no contact between the horizontal axles.

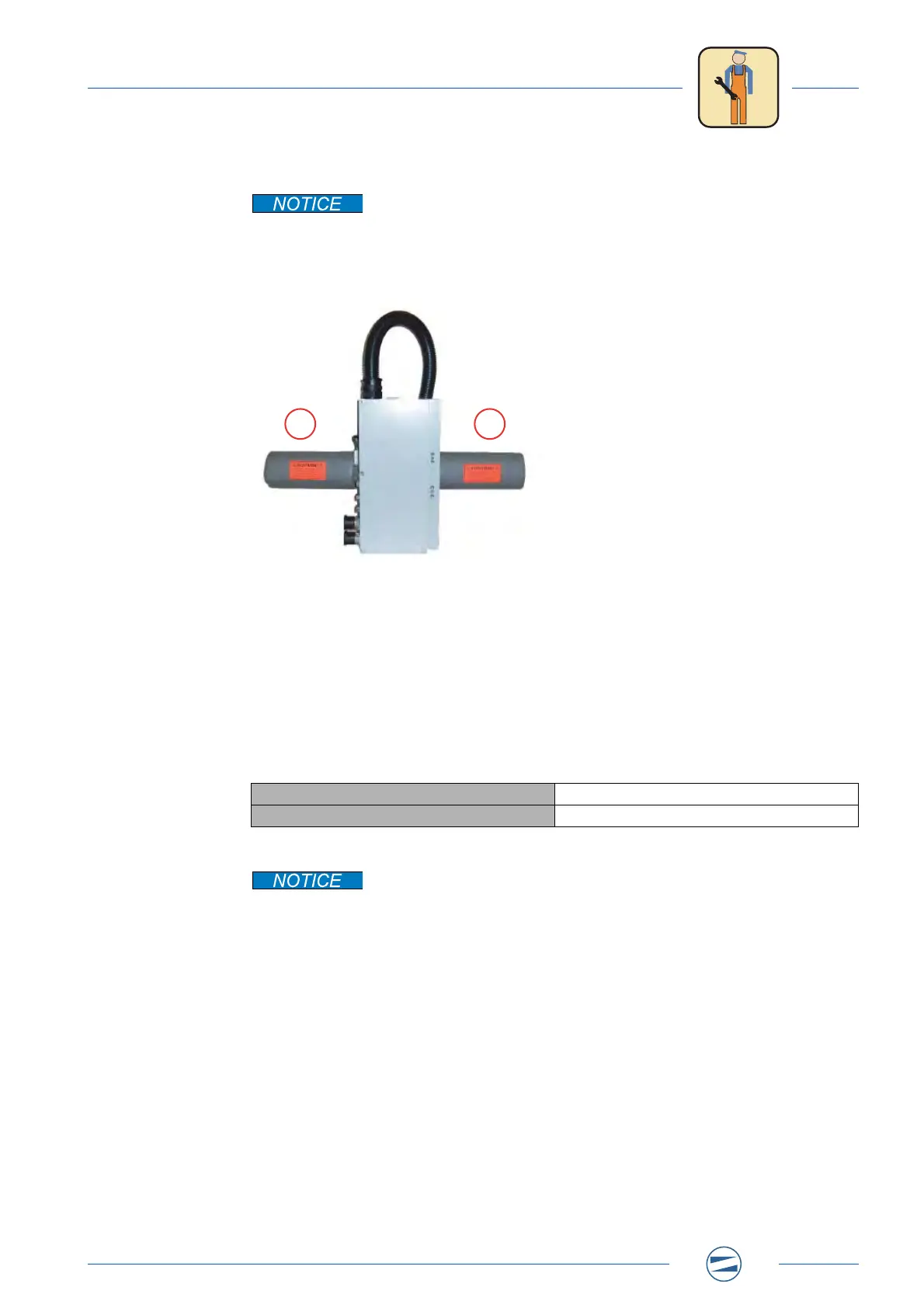

Fig. 13: Protective cover on the horizontal axle
5.3.1 Operating media / Auxiliary media / Tools
The following are required for installation of the machine:
• One set of spanners
• One torque wrench
• One set of screwdrivers
• Screw securing agent (e.g. Loctite ® 243)
• Quality 8.8 screws
5.3.2 Installation preparation
The horizontal axle is not fixed and can move. Therefore the machi-
ne could tilt over and be damaged when placed at the installation locations due to
loss of balance. The machine must be held or secured against tilting until it is scre-
wed to the mounting surface.
• Open the packaging unit prior to the assembly and remove the machine from the
packaging unit.
• The customer's bores must be made based on the hole pattern in Chapter 3.3.12.
• The M8 fastening bolts must be ready for use.
• Additionally the dowel pins must be ready for use, if assembling with pins.
• If assembling at a groove, the grooves must be milled in the mounting surface and the
fastening bolts and dowel pins must be ready for use.
11
Thread M8
Tightening torque 25 Nm
