Service manual Functional verification 11
Functional verification procedure

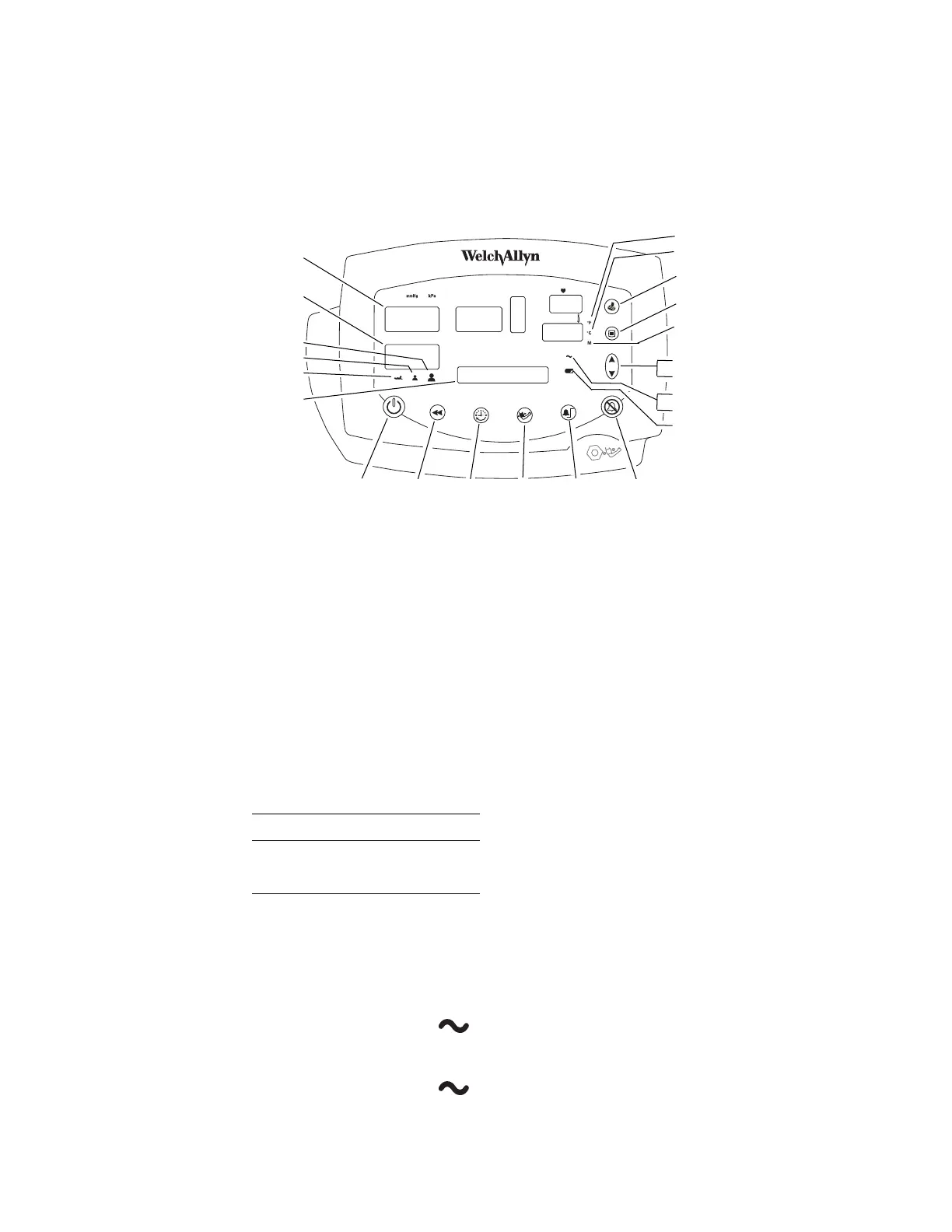

Reference illustration
System/power
Setup
If the monitor is configured with the temperature option, connect the temperature
probe and insert it into the probe well.
If you are using an optional Welch Allyn Model Calibration Tester, plug it in and set it to
the values that match your tester model:
If the monitor is configured with the SpO
2
option, connect the SpO
2
sensor.
Battery charge and beeper
1. With the monitor turned off, disconnect the power adapter from the monitor.
2. Verify that the charge LED is off.
3. Connect the power adapter. The monitor emits a single beep tone.
4. Verify that the charge LED is on.
SYS
DIA
/min
SpO
2
%
F
a
h
ren
h
e
i
t
Celsius
Print patient data
Change settings
Monitored
temperature
Increase/Decrease
Forward/Back
Battery charged
Battery charging
Battery low
Silence
alarms
Set
alarm
limits
Start/
stop
NIBP
Set
NIBP
interval
Review
patient
data
Power
On/Off
Systolic
window
Diastolic
window
Adult
Pediatric
Neonatal
Message
window
Note
Other than the optional NIBP overpressure test (page 18), the tests described
here must be performed as part of a complete functional verification procedure.
Model Temperature
9600 96.4 °F (35.8 °C)
9600 Plus 96.8 °F (36.0 °C)
