Welch Allyn 53NTP Service Manual

60 Disassembly procedure Welch Allyn VSM 300 Series
5. Disconnect the display-board flex cable (J5) from the main board.

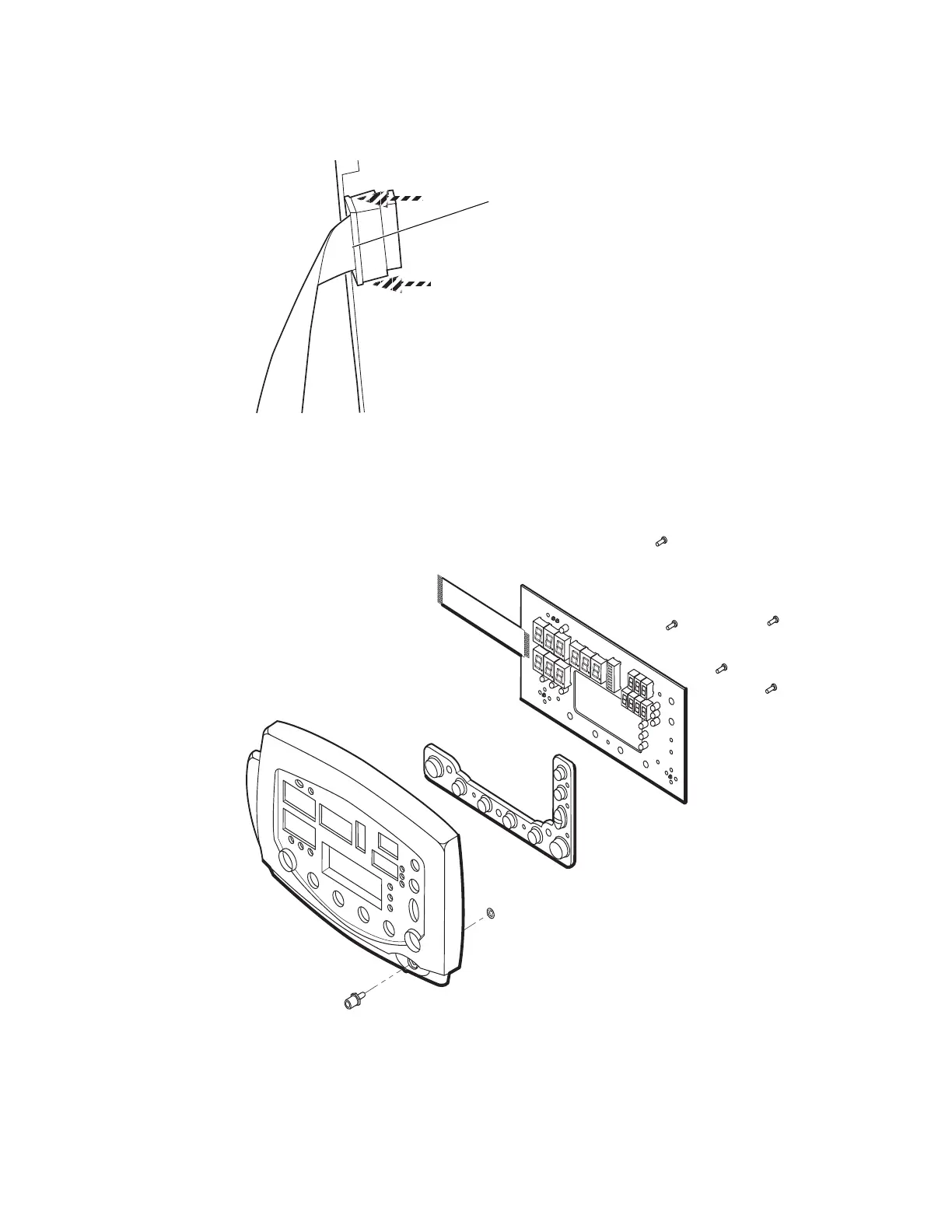

Disassemble the front chassis assembly
The front chassis assembly contains the display board, keypad, and NIBP air fitting.
1. Remove the five screws securing the display board.
Disconnect the display-board flex cable from the main board (J5).
Slide the outer piece of the connector toward the cable to release
the cable; then slide the cable out of the connector.
