Service manual Disassembly procedure 59

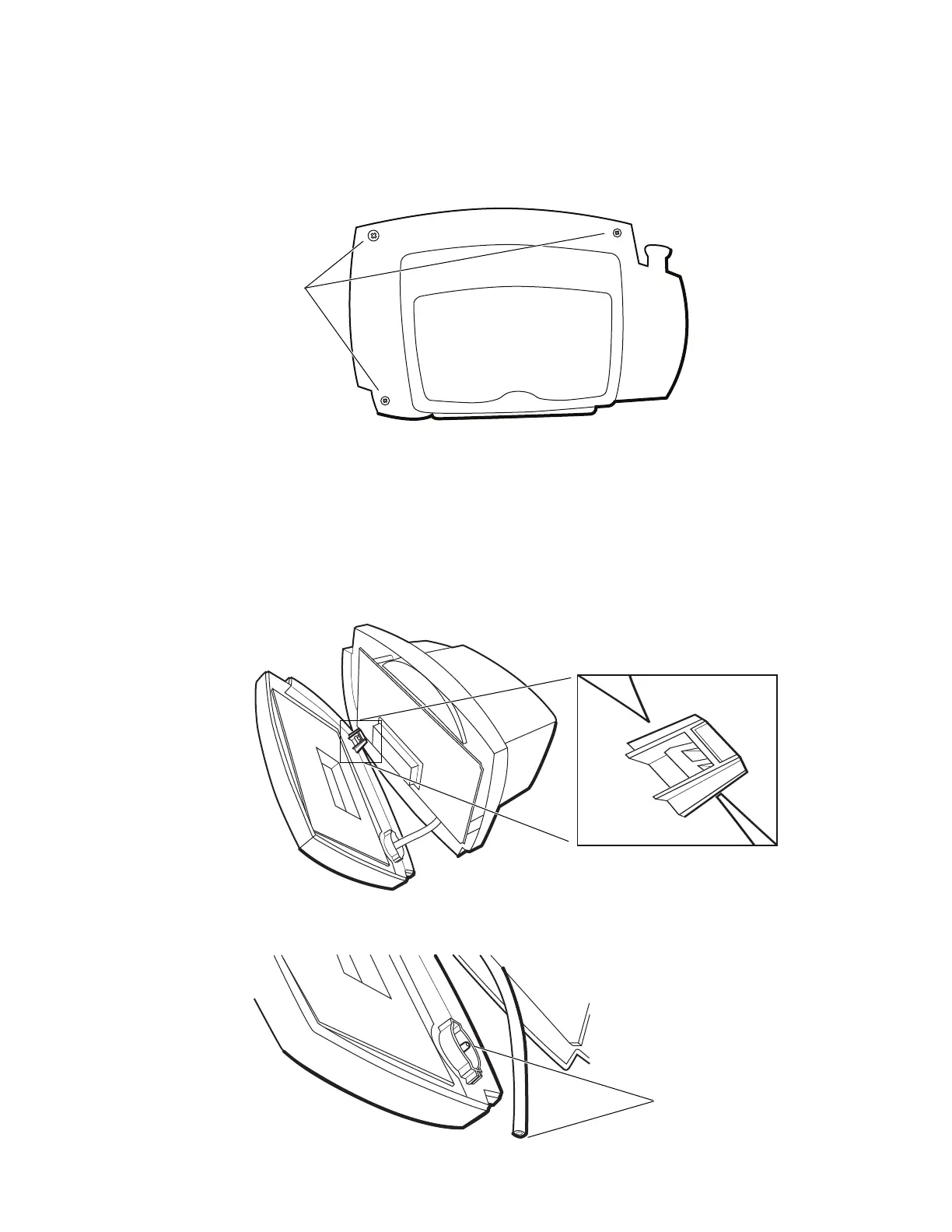

Separate the front and rear chassis
1. Remove the three screws securing the rear chassis.
2. Place the unit upright, with the front of the unit facing you.
3. Tilt the top of the front chassis away from the rear chassis while lifting the front
chassis, freeing the front chassis from the corner tab feature on the bottom left-hand
corner of the rear chassis.
4. Disconnect the NIBP hose from the connector on the front chassis.
Note
On reassembly, engage the tab and the tab receiver before attempting to align
and close the chassis halves.
Housing
Screws
Disconnect the NIBP hose
from the front chassis
