Service manual Replacement parts 95
Printer option

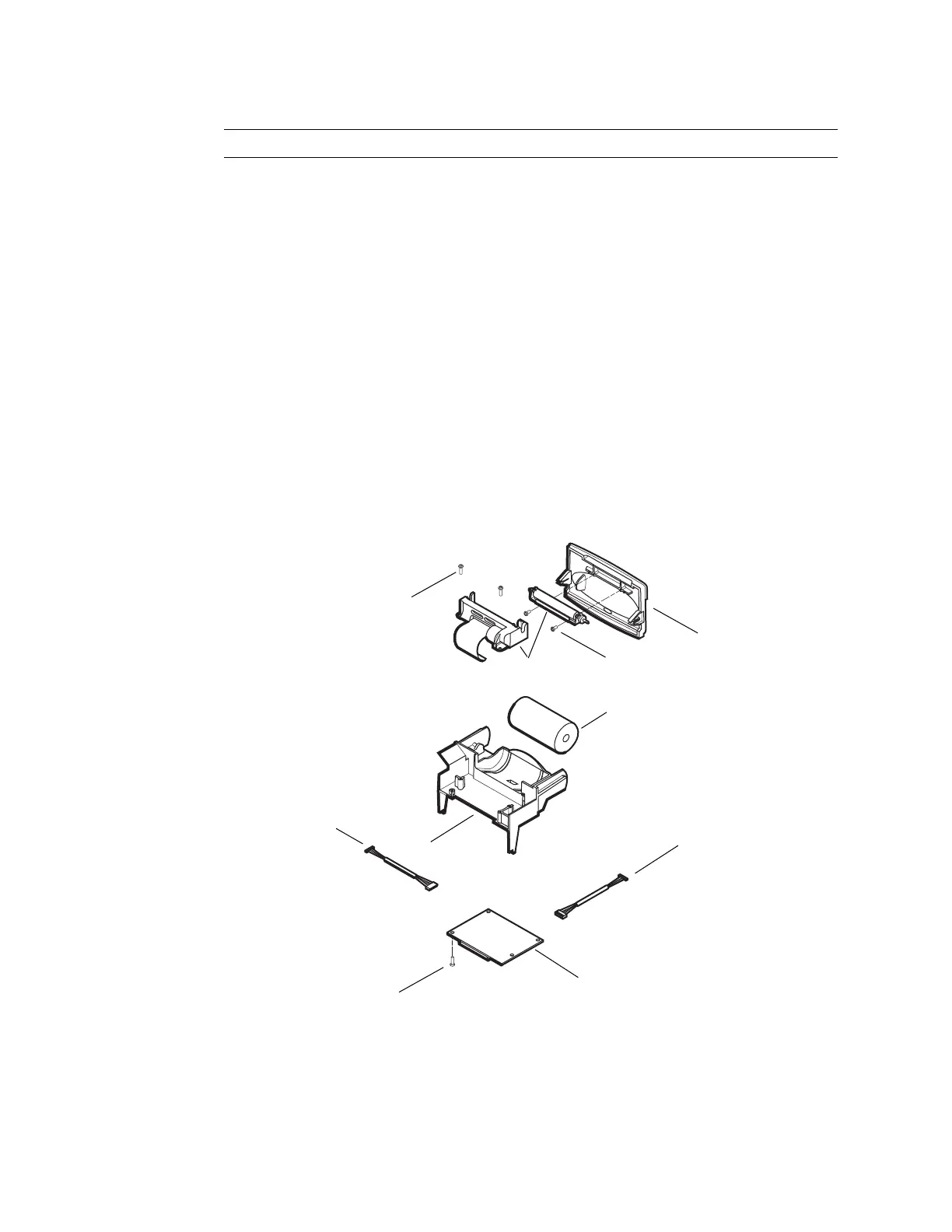

Drawing
Ref #
Order
number Description
1
630-0213-XX Printer door without roller
2
630-0214-XX Frame, printer assembly
3
620-0149-XX Screw, printer door/roller 2-28 x 1/4”
4
620-0165-XX Screw, Plastite, 0.312, 2-28, thread-forming
5
532012-000 PCB, printer
6
532013-000 Printer mechanism, with roller
7
660-0229-XX Cable, printer data
8
660-0228-XX Cable, printer power
9
008-0827-XX Thermal paper
020-0659-XX Blank printer door kit (not shown)
2
1
9
8
7
3
4
5
4
6
