Welch Allyn 53NTP Service Manual

Service manual Disassembly procedure 61
2. Lift out the display board.
3. Remove the keypad.
Reassembly notes
If you are replacing the keypad and your monitor does not include the thermal printer
option, the Printer button must be removed from the keypad before you reinstall the
keypad. To remove the Printer button, cut the membrane connecting the button to the
keypad. (Note the circled area in the illustration below.)

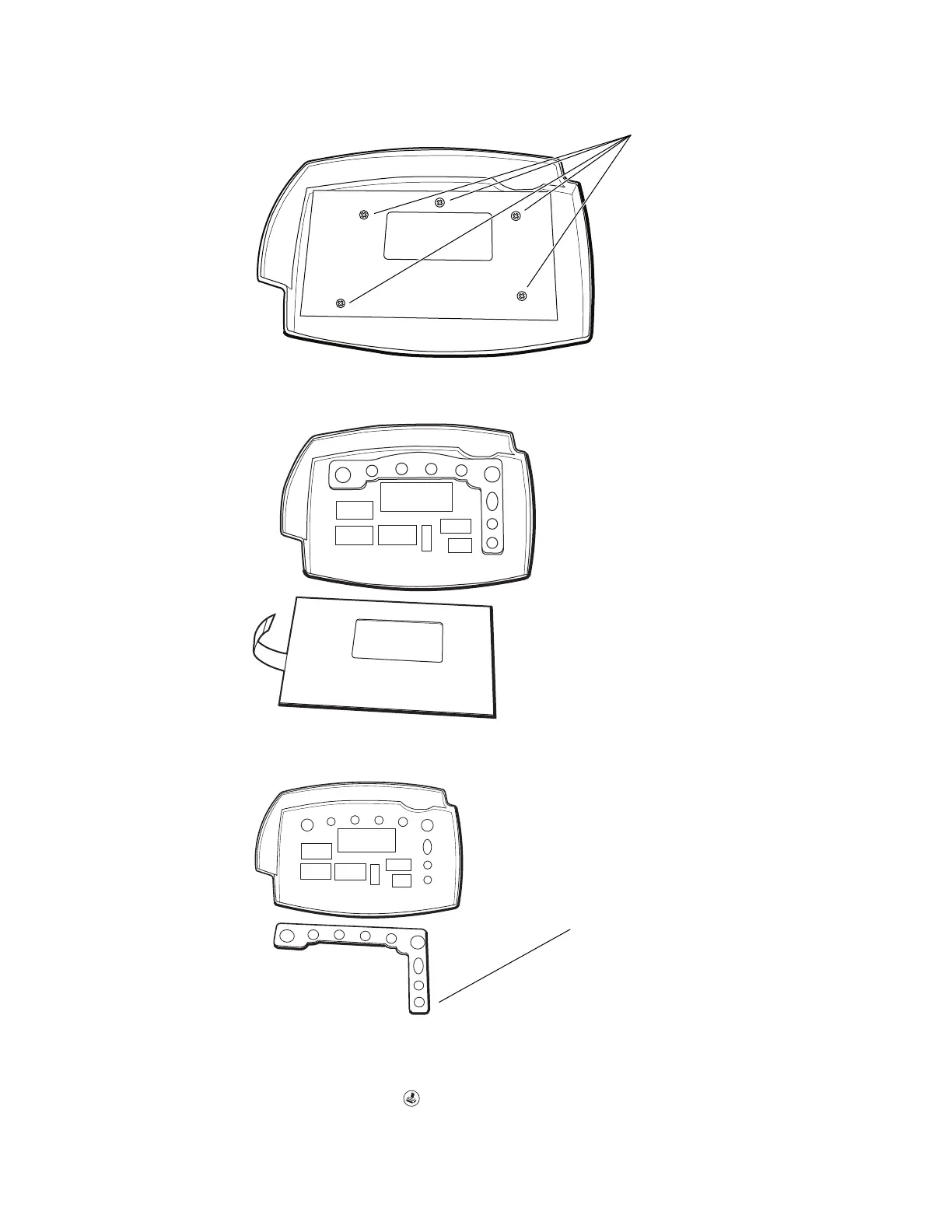

5 screws securing the
LED display board
Printer button
