4 Safety Welch Allyn Vital Signs Monitor 300 Series
The monitor front panel controls are described in more detail throughout this document.
Printer door label
Press to open the printer door Load paper this direction

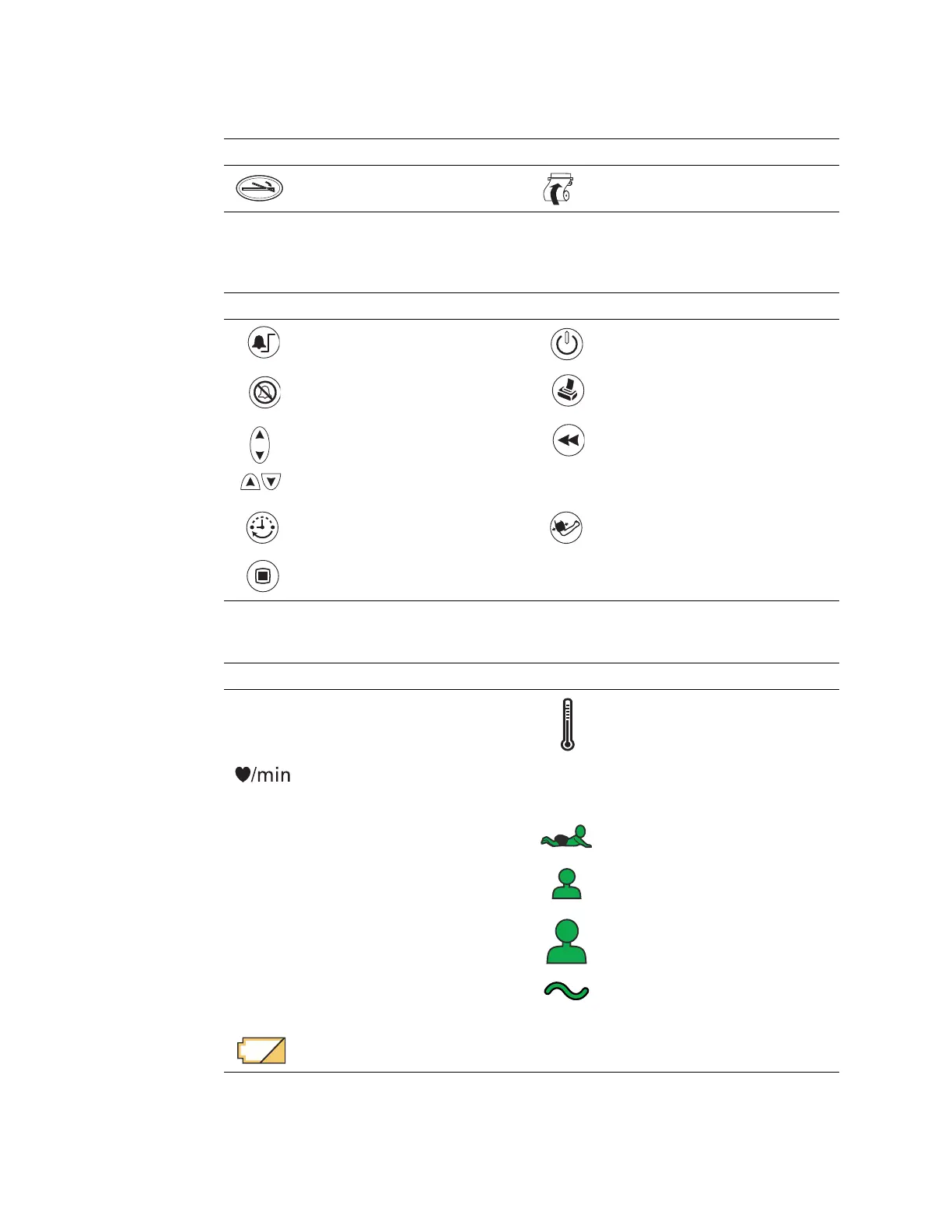

Front panel controls
Set alarm limits Power on/off
Silence alarms Print patient data
Scroll up/down, Scroll forward/back,
Increase/decrease value
(The scroll icon appears as these two
arrows in the documentation.)
Review patient data
Set an NIBP automatic measurement
interval
Start/stop an NIBP cycle (AUTO button)
Cycle to the next menu selections
Front panel displays and indicators
SYS
DIA
SpO
2
Systolic pressure
Diastolic pressure
Arterial hemoglobin oxygen saturation
Temperature
Pulse rate pulse
amplitude
indicator
Pulse strength
message
window
MAP (mean arterial pressure) Neonatal
Degrees Celsius Pediatric
Degrees Fahrenheit Adult
Monitored temperature AC power
Battery charging (flashing)
Battery charged (steady)
Battery low
Battery fully discharged
ºC
ºC
ºF
ºF
M
M
