Welch Allyn 53NTP Service Manual

Service manual Disassembly procedure 83

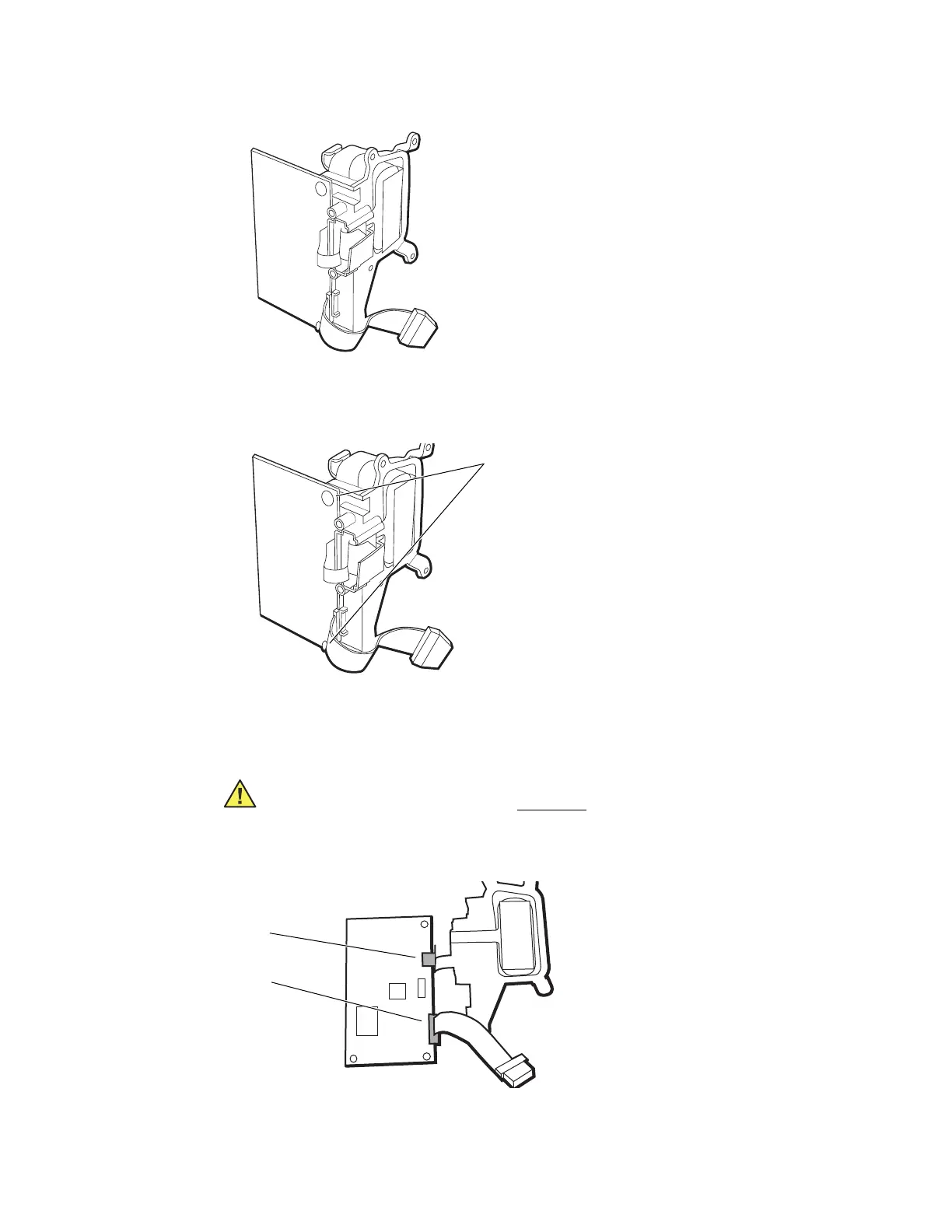

2. Remove the SpO
2
board.
a. Remove the two screws securing the board to the side panel.
b. Disconnect J1 and J2.
Caution To avoid stressing and damaging the J1 flex cable, disconnect the
cable by gripping the J1 flex-cable connector with pliers and separating the
connector halves without stressing or otherwise putting any pressure on the flex
cable itself.
Two screws securing the SpO
2
board to the SpO
2
assembly
J1
J2
