Welch Allyn Schiller AT-2plus - Miscellaneous Graph Print Settings; Normal Value Standards Overview

AT-2plus User Guide Spirometry Supplement Page 17
Art. No. 2. 510339wa ©1999
AT-2plus User Guide Spirometry Supplement Page 17
Art. No. 2. 510339wa ©1999
Spiro Settings

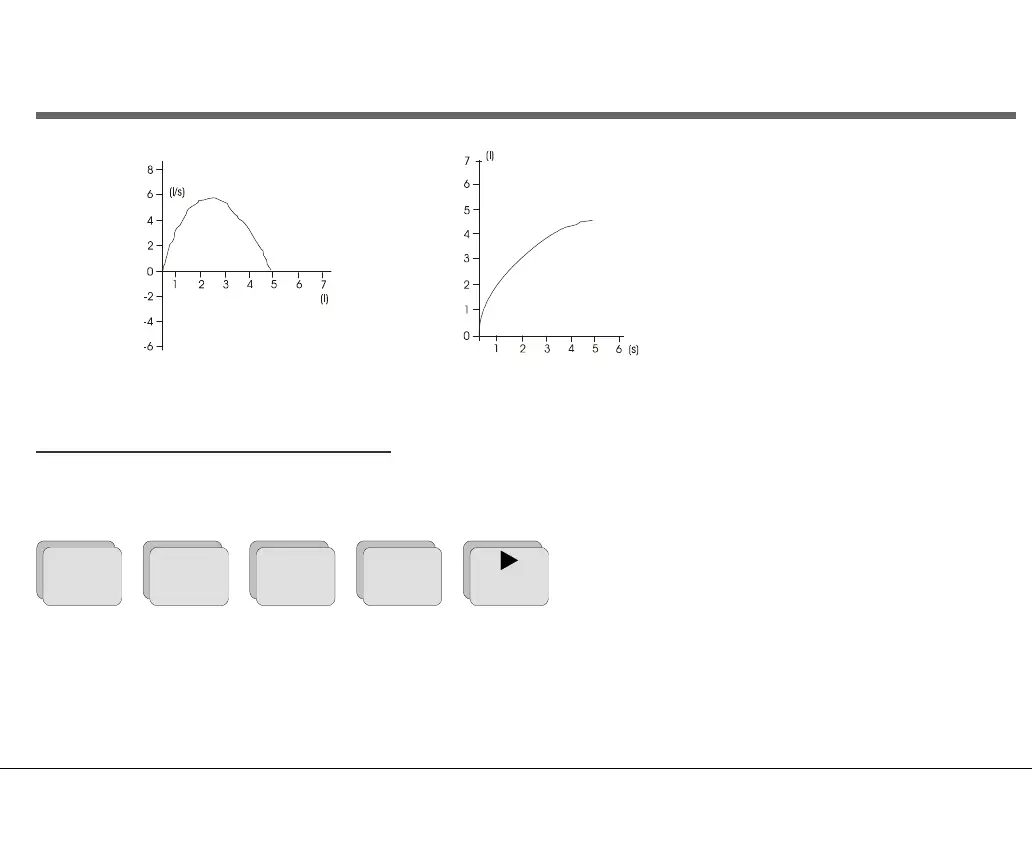

Flow Graph Volume graph
Printout Graph Setup - Miscellaneous
This defines the miscellaneous print settings as follows:
1s1st key 2nd key 3rd key 4th key 5th key 6 th key
ALT
0
1mV
0
1mV
0
1mV
2
'0' Diagnosis on (diagnosis printed)
'1' Diagnosis off (diagnosis not printed)
'2' PEF (l/m) - Peak Expiratory flow calculation
litres/minute
'3' PEF (l/s)- Peak Expiratory flow calculation
litres/second
Spiro Settings
Flow Graph Volume graph
Printout Graph Setup - Miscellaneous
This defines the miscellaneous print settings as follows:
1s1st key 2nd key 3rd key 4th key 5th key 6 th key
ALT
0
1mV
0
1mV
0
1mV
2
'0' Diagnosis on (diagnosis printed)
'1' Diagnosis off (diagnosis not printed)
'2' PEF (l/m) - Peak Expiratory flow calculation
litres/minute
'3' PEF (l/s)- Peak Expiratory flow calculation
litres/second
