WeldKing COOLTIG220 - Torch;Foot Petal Control Connection Receptacle (12 Pins) (TIG)

Manual no. WDT90100 Page 25
CoolTig - 220

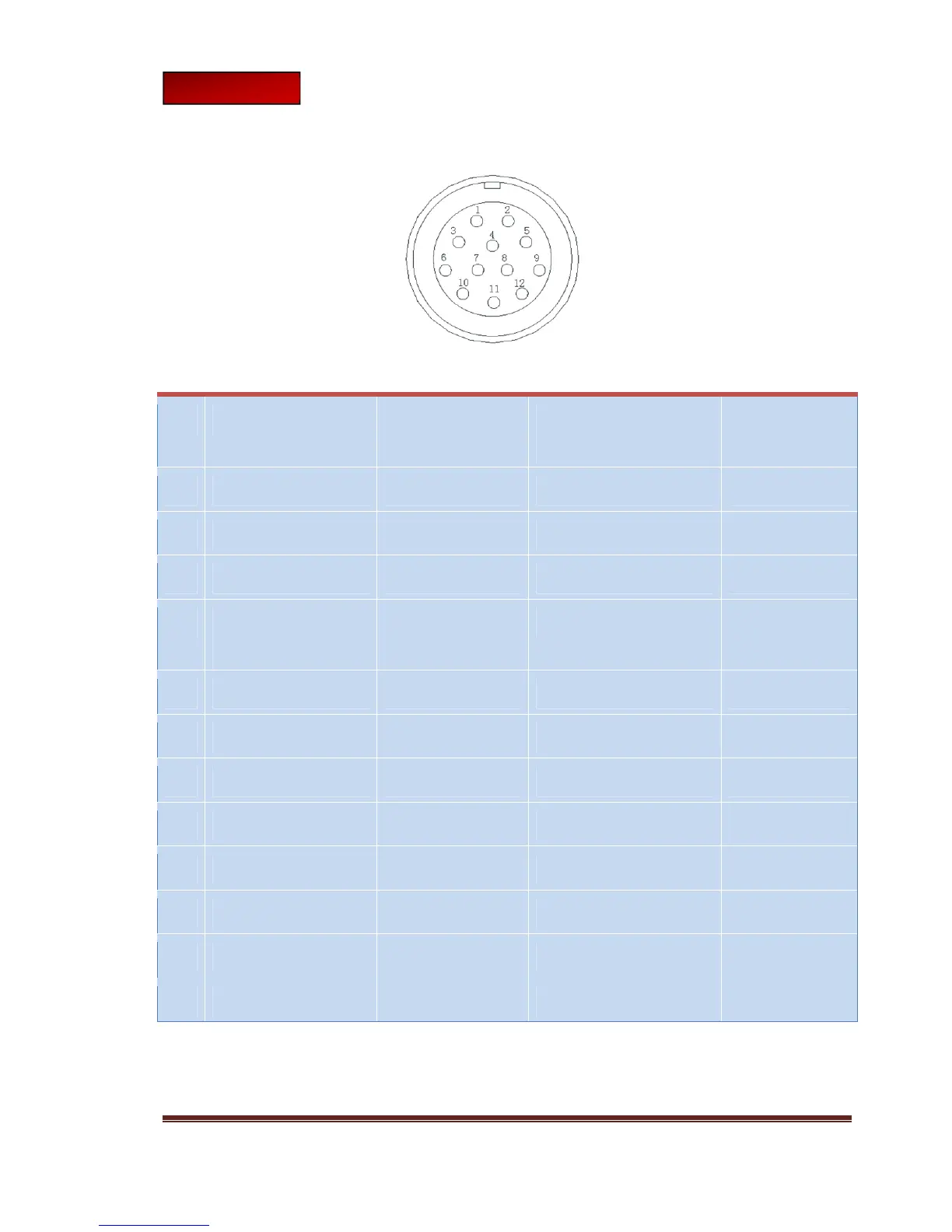

5-7. Torch /Foot petal control connection receptacle (12 pins) (TIG)
Figure 5.3
Pin Foot pedal Switch torch Remote current
torch
Up-down
torch
1
Short with 2 - - -
2
Short with 1 - - -
3
Potentiometers + - Potentiometers + -
4
Potentiometer
Wiper
- Potentiometer Wiper -
5
Potentiometers - - Potentiometers - -
6
- - - up
7
- - - down
8
Trigger switch Trigger switch Trigger switch Trigger switch
9
Trigger switch Trigger switch Trigger switch Trigger switch
10
- - Short with 11 -
11
- - Short with 10 -
12
- - - -
- : Not used
Table 5.3
