CoolTig - 220
SECTION5OPERATION

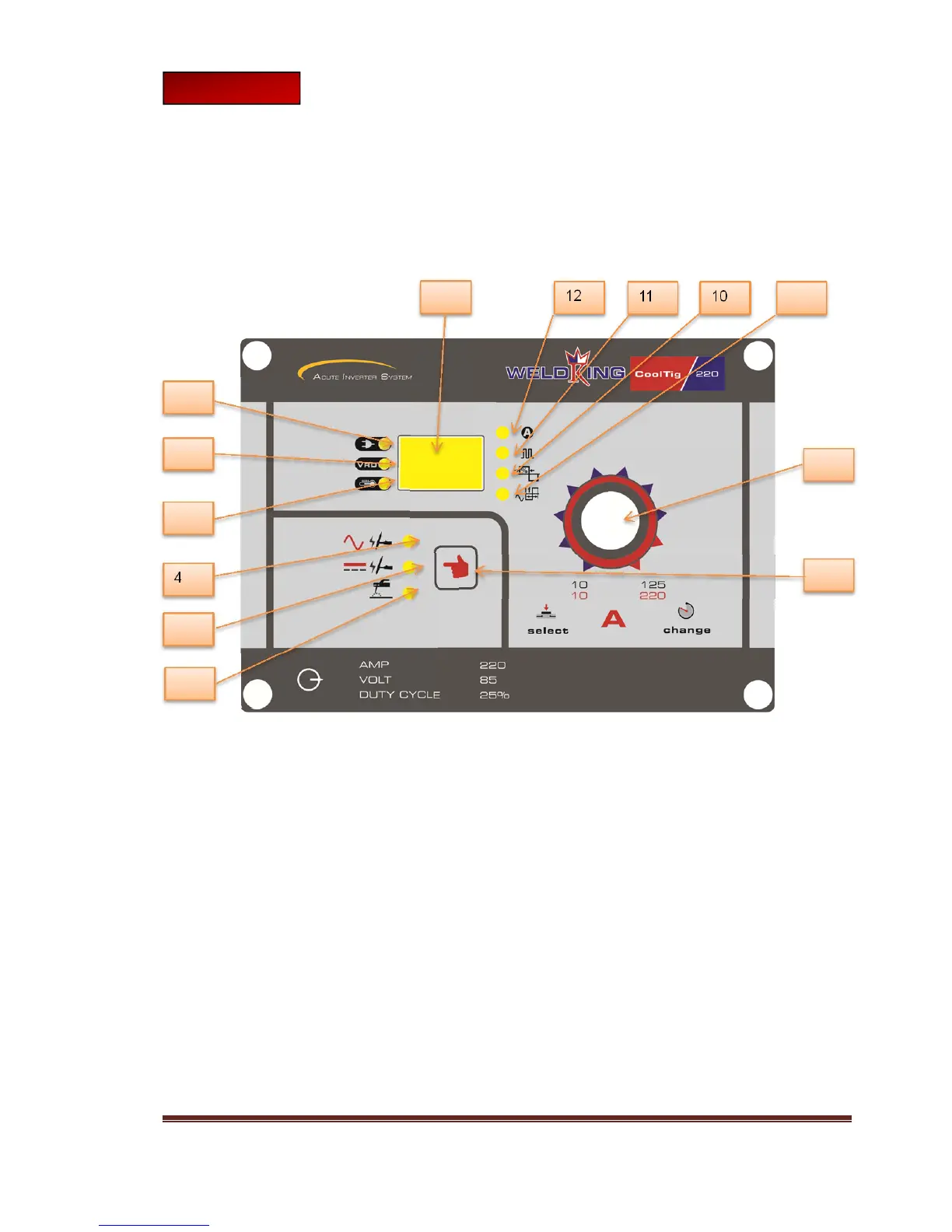

5-1. Power source panel layout and description
1. Power indication light
2. VRD indication light
3. Protection indication light
4. AC TIG with HF
5. DC TIG with HF
6. DC STICK
7. Welding process selection button
8. Parameters adjust knob
9. AC frequency (60-160Hz)
10. AC balance (60%-90%)
11. Pulse on/off and frequency
(0.5-20Hz)
12. Current pre-set
13. Welding current meter and
parameter value display (TIG/STICK)
(digital)
Figure 5.1
1
2
3
4
6
13 12
5
11 10 9
8
7
