CMP203 User Guide
97
Module configuration is similar to IP Setting.

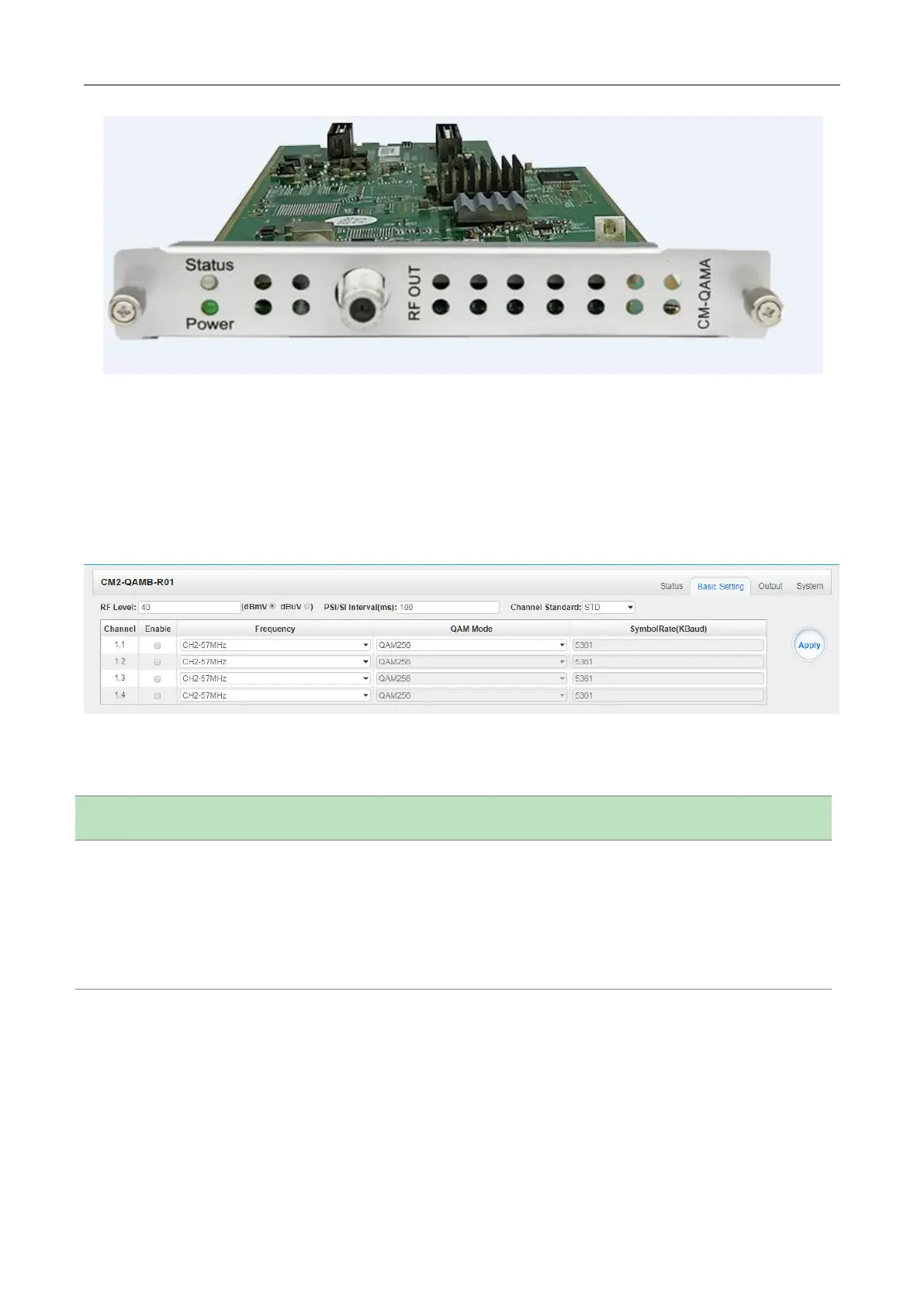

CM2-QAMB-R01/R01A>Basic Setting
Click the Apply button on the right side to make the change take effect.
Name
Range
Name
Range
Symbol Rate (KBaud)
5057 (QAM64)
5361 (QAM256)
PSI/SI Interval (ms)
50~10000
RF level
25~45dBmV/85~105dBμV
Frequency (KHz)
48000~862000
QAM Mode
QAM64/256
CM2-QAMB-R01>Service Configuration
 TS setting: Please refer to IP output service configuration.
 LCN setting: You need to add NIT streams of all frequencies to the base TS (frequency), which
is for your STB to automatically search and identify all the TS (frequencies) LCN information.
