CMP203 User Guide

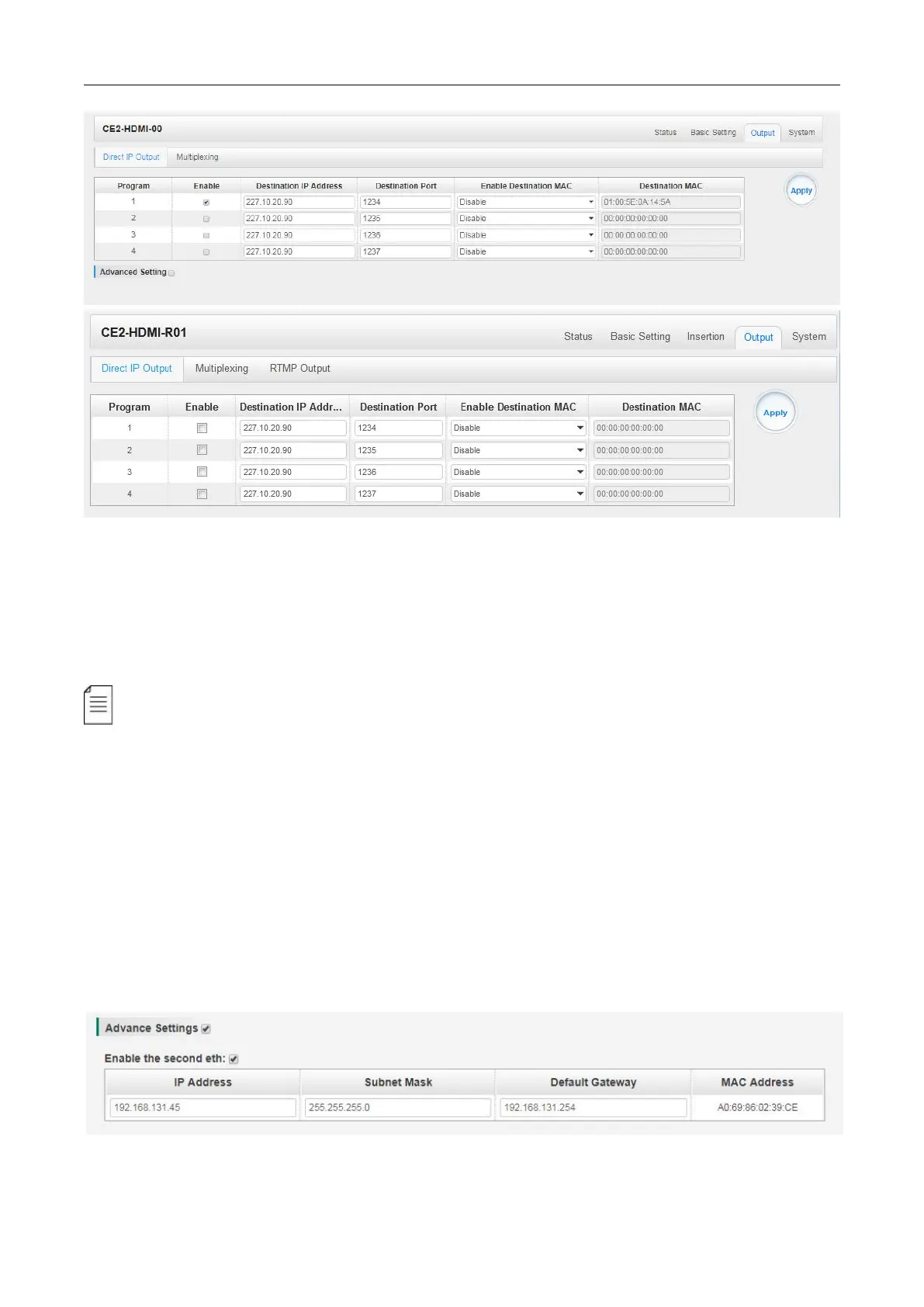

For the Output, both models have direct IP output and multiplexing, but only CE2-HDMI-R01 has
RTMP output settings.
This feature is specifically for single program encoding and IP output directly. By using this way to
output, it will not occupied baseboard multicast bandwidth.
If you want to use IP output channel in the encoder module and the baseboard IP module at the
same time, you should avoid a multicast IP address conflict. If there are two same IP addresses
enabled meantime, all the multicast videos will be affected.
Destination IP Address and Destination Port: Using for multicast IP addresses or unicast IP
addresses and ports.
Enable Destination MAC: Generally, you do not need to enable this option. This is reserved for
exceptional cases where the unicast stream cannot be received with unicast IP addresses. You
can enable destination MAC and streaming out by setting Destination MAC.
Advance Setting (only available in CE2-HDMI-00):
