14
ASSEMBLY AND ADJUSTMENTS
INSTALLING/CHANGING BLADE
WARNING - Disconnect power cord from power source
before installing/changing blade.
1. Uninstall the blade guard and anti-kickback fingers assembly from
the riving knife. Then remove the table insert to gain access to the
blade arbor.
2. Raise the blade to its highest position above the table.

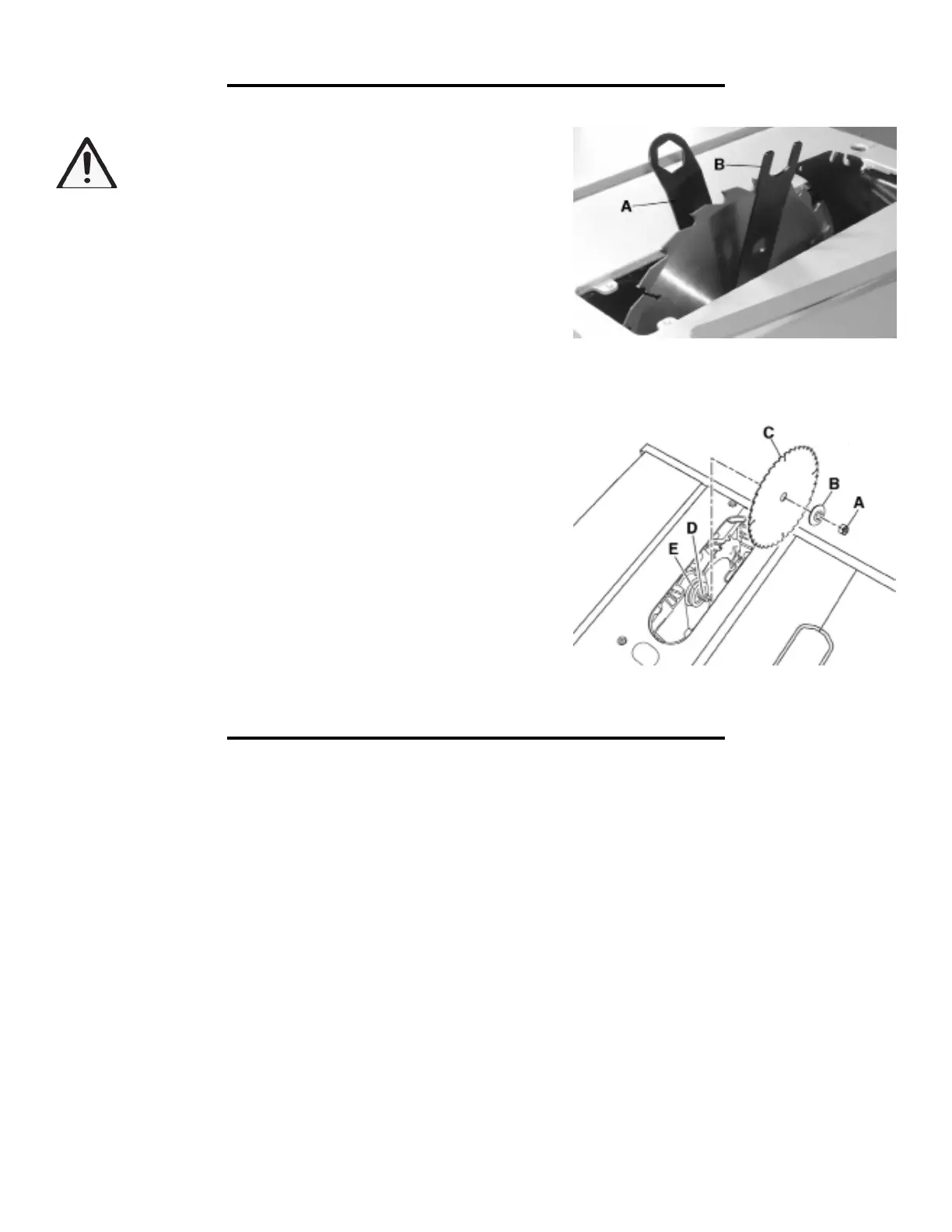

3. Place the open end of one of the adjustment wrenches (A, Fig 23)
on the flat portion of the inside blade flange (E, Fig 24) behind the
blade to prevent the saw arbor and blade from rotating. Then place
the closed end of the second adjustment wrench (B, Fig 23) on the
arbor nut (A, Fig 24) and turn the arbor nut counterclockwise. Re-
move the arbor nut and outside blade flange (B, Fig 24).
4. Place new blade on arbor (D, Fig 24) making sure the blade teeth
point downwards towards the front of the table saw.
5. Replace outside blade flange (B, Fig 24) and arbor nut (A, Fig 24)
on arbor shaft and tighten with arbor wrenches.
6. Reinstall the table insert. Then reinstall the blade guard and anti-
kickback fingers assembly.
OPERATION
SAFETY PRECAUTIONS BEFORE OPERATION
The operation of power tools involves a certain amount of hazard for the operator. Before attempting regular
work, we recommend you get the feel of operations using scrap lumber to double check your settings. It is good
practice to make trial cuts using scrap material when setting up your saw for operation.
PUSH STICK
A push stick is supplied with this table saw and should be used whenever possible.
OPERATION
Normal sawing procedure includes ripping and crosscutting, plus a few other standard operations. As with all pow-
er tools there is a certain amount of hazard involved with the operation and use of the tool. Using the tool with
respect and caution will considerably lessen the potential of personal injury. However, if normal safety precautions
are overlooked or completely ignored, personal injury to the operator can occur.
Fig. 23
Fig. 24
