5. Re-wire the white motor wire with the other white wires from which the plastic cap was
removed. As shown in Figure 12, securely re-twist these white wires together. It is
important that all the wires have the exposed metal strands touching each other so that the
connection is strong. Place the plastic cap back over the twisted wires and then re-crimp
the cap with needle-nose pliers. Gently try to pull the cap off to make sure it is securely
crimped. If it falls off, tightly re-twist the wires, push the cap fully onto the wires, and
tightly crimp the cap.

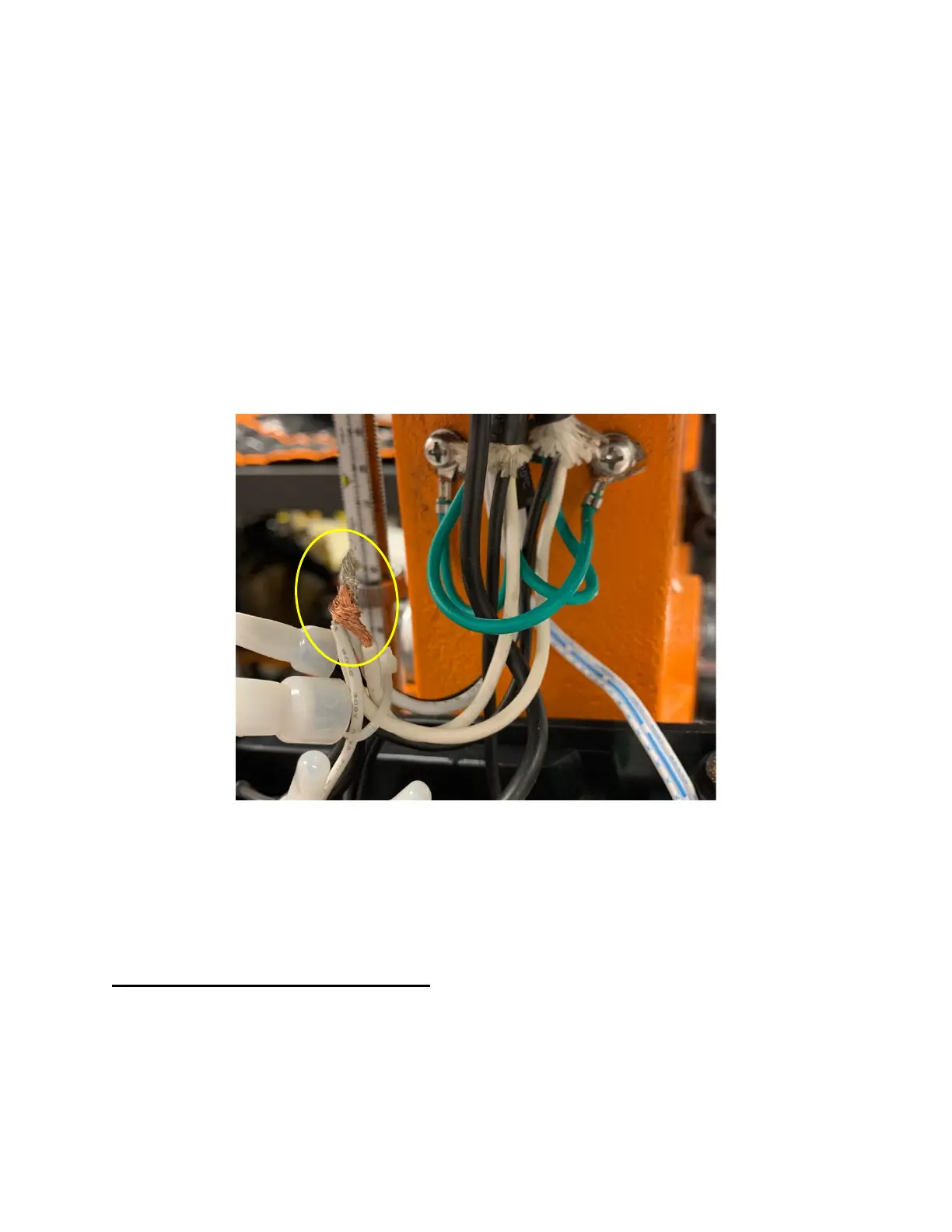

Figure 12. Twisting the Wire Connection
6. Re-attach the switch box with the three switch box screws.
REATTACH THE MOTOR PULLEYS
1. Place the pulley spring back onto the motor shaft.
2. Slide the bottom pulley onto the motor shaft, lining up the key slot. Place the belt over
the bottom pulley and the shaft
