LED WORK LIGHT
The LED work light (Fig. 7), located on the front of the screw-
driver underneath the chuck, illuminates workpieces while the
screwdriver is running.
LED FLASHLIGHT
The LED flashlight (Fig. 8), located on the bottom of the
screwdriver handle, can be used as a multi-purpose flashlight.
1. Before using the flashlight, make sure to lock the power
switch in the center position to prevent accidental starting.
2. Slide the flashlight power switch to the ON position to turn
the flashlight on (Fig. 8).
3. Slide the flashlight power switch to the OFF position to turn
the flashlight off (Fig. 8).
NOTE: For maximum comfort, rotate the handle to the flat
position.
ROTATING THE HANDLE POSITION
You can use the screwdriver in a pistol-grip or standard posi-
tion, depending on what better suits the task at hand.
1. Before rotating the handle, make sure to lock the power
switch in the center position to prevent accidental starting.
2. Slide the rotation lock button forward with your thumb (Fig
9 - 1). As the button is pushed forward, use your other hand
to twist the upper portion of the screwdriver (Fig. 9 - 2).
3. Release the rotation lock button and make sure the handle
is locked in place. Your screwdriver is now in the standard
position.
1. For clockwise rotation, push the switch to the right (Fig. 5).
2. For counterclockwise rotation, push the switch to the left
(Fig. 5).
CHARGING INDICATOR LIGHT
The light below the charging port (Fig. 6) on the screwdriver
indicates the battery’s charging status.

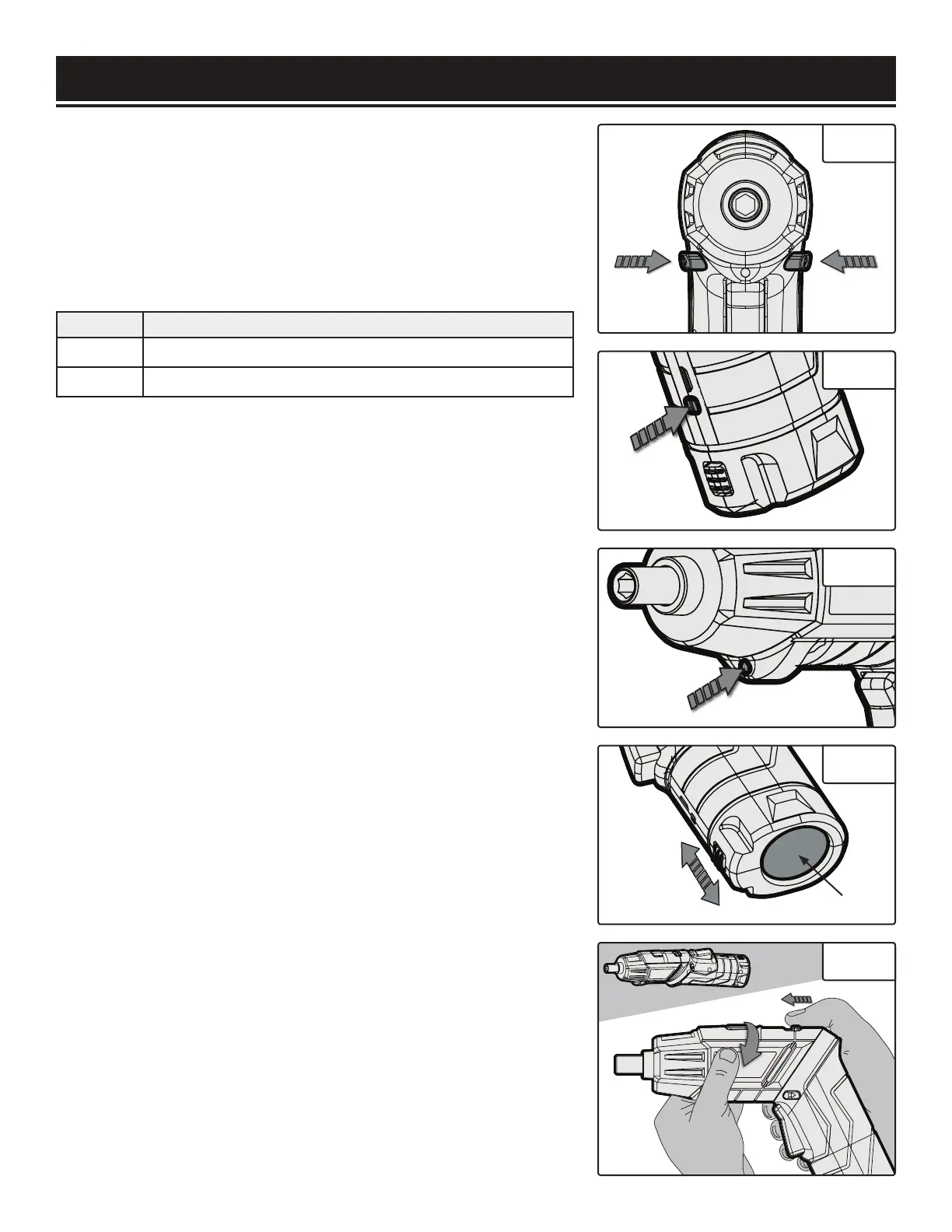

Fig. 5
Fig. 6
Fig. 7
Fig. 9
Counter-
clockwise
Clockwise
Color Meaning
Red Charging is in progress; leave on the charger.
Green Charging is complete; remove from the charger.
Fig. 8
ON
Flashlight
OFF
1
2
