Wen 56352 User Manual

27

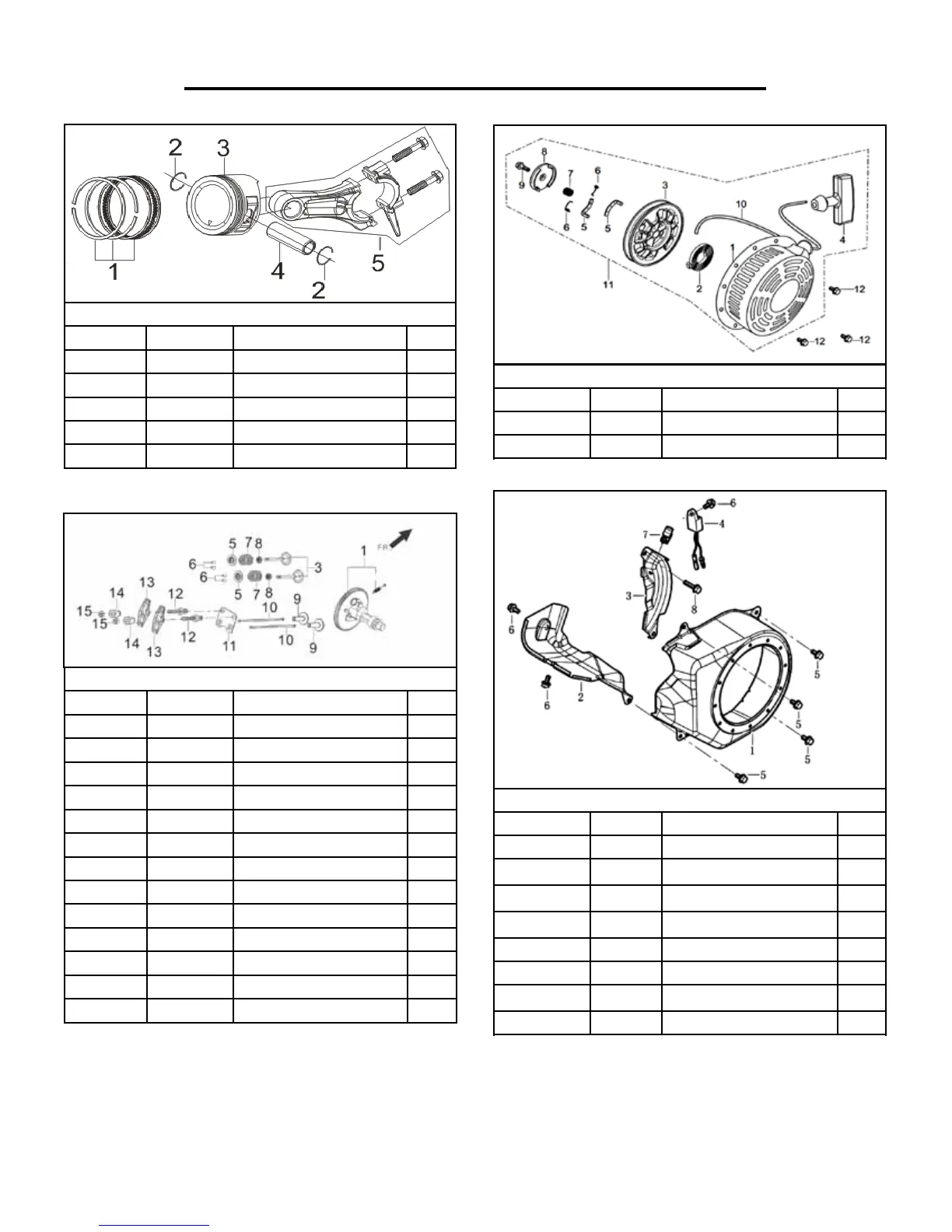

EXPLODED VIEW AND PARTS LIST
No. Part Description Qty.
Fig. 7-11 P54604 Recoil Starter Assembly 1
Fig. 7-12 P54598 Bolt 3
Fig. 7 - Recoil Starter
No. Part Description Qty.
Fig. 8-1 P54668 Fan Hood Assembly 1
Fig. 8-2 P54044 Wind Cover 1
Fig. 8-3 P54596 Lower Shield 1
Fig. 8-4 P54612 Diode 1
Fig. 8-5 P54040 Bolt 4
Fig. 8-6 P54040 Bolt 3
Fig. 8-7 P54596-1 Collar 1
Fig. 8-8 P54186 Bolt 1
Fig. 8 - Shroud
No. Part Description Qty.
Fig. 5-1 P54105 Piston Ring Assembly 1
Fig. 5-2 P54106 Piston Pin Clip 2
Fig. 5-3 P54109 Piston 1
Fig. 5-4 P54112 Piston Pin 1
Fig. 5-5
P54121
Connecting Rod 1
Fig. 5 - Piston Ring/Connecting Rod
No. Part Description Qty.
Fig. 6-1
P54146
Camshaft Assembly 1
Fig. 6-3 P54150 Valve 1
Fig. 6-5 P54158 Valve Spring Seat 1
Fig. 6-6 P54160 Valve Lock 1
Fig. 6-7 P54154 Valve Spring 1
Fig. 6-8 P54161 Guide Seal 1
Fig. 6-9 P54142 Tappet 2
Fig. 6-10 P54140 Lifter 2
Fig. 6-11 P54138 Push Guide 1
Fig. 6-12 P54134 Valve Adjusting Bolt 2
Fig. 6-13 P54132 Valve Rocker 2
Fig. 6-14 P54130 Sleeve 2
Fig. 6-15 P54128 Lock Nut 2
Fig. 6 - Valve/Camshaft Assembly
